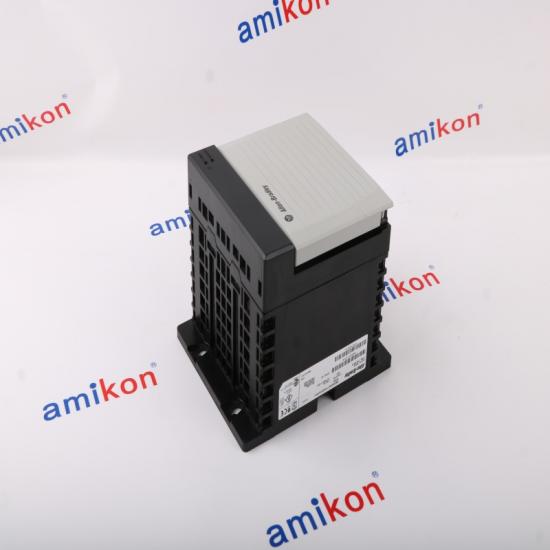

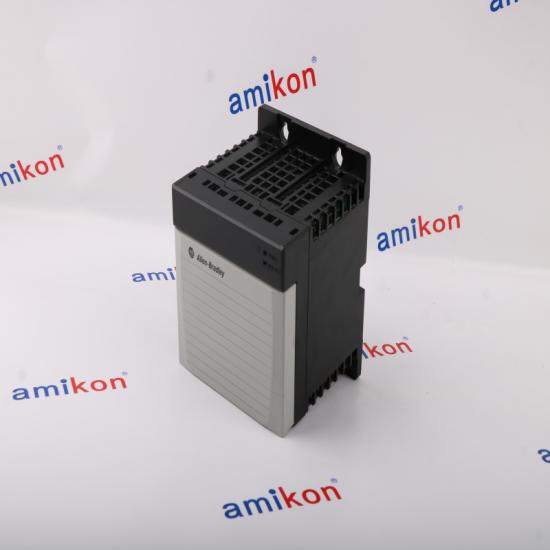

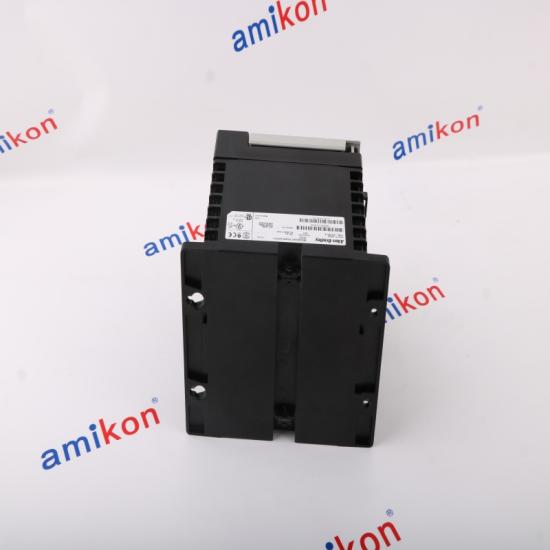

AB 1756-PB75R Power Supply

AB 1756-PB75R Basic Specification

1. Power Supply Characteristics		2.Chart
• Output Voltage	24V DC
• Output Current Rating	7.5 A
• Input Voltage Range	85-264V AC
• Input Frequency Range	47-63 Hz

Choose us was a best decision!

Welcome to contact Miya！

            86-18020776792                               86-18020776792                               sales@amikon.cn

Functions and Roles

AB 1756-PB75R

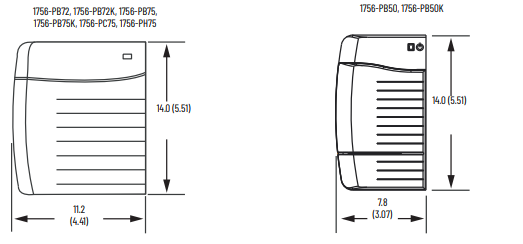

Graphs and figures

The primary function of the 1756-PB75R is to deliver a stable and regulated 24V DC output,

providing the necessary power to the ControlLogix system. With a maximum current rating of 7.5 amps,

it can support a broad range of ControlLogix modules and configurations, from standard setups to

more demanding applications requiring higher power. This reliable power supply is critical for

maintaining consistent performance and ensuring that all components of the ControlLogix system operate smoothly.

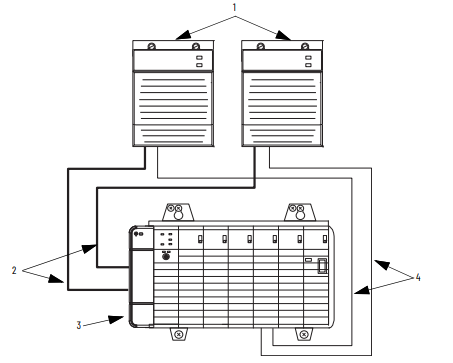

The 1756-PB75R is engineered to support redundant power configurations, which significantly enhances

the reliability of the ControlLogix system. In a redundant setup, two power supplies are used simultaneously to

ensure continuous operation even if one supply fails. This redundancy is vital for mission-critical applications

where uninterrupted operation is essential, reducing the risk of downtime and ensuring that the control system

remains operational under all circumstances.In addition to its redundancy support, the module includes robust

protection features such as over-voltage, over-current, and short-circuit protection. These safeguards help

prevent damage to both the power supply and the connected ControlLogix components the system.
