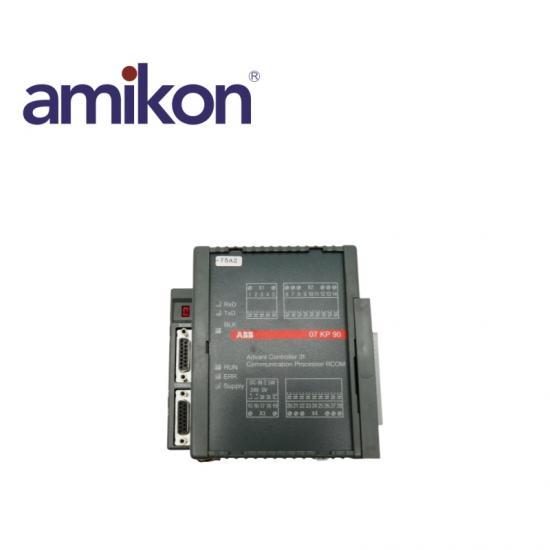

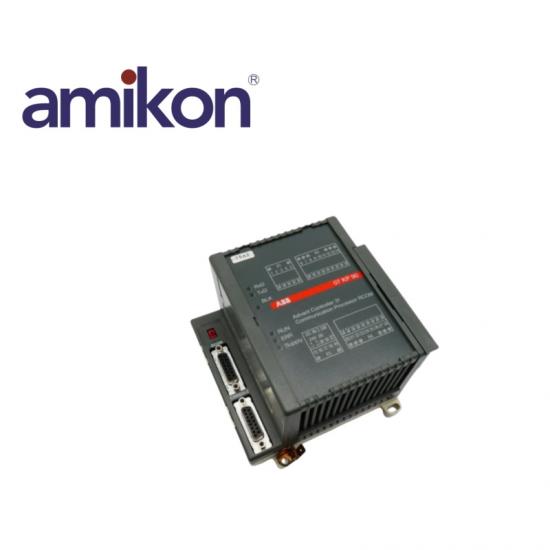

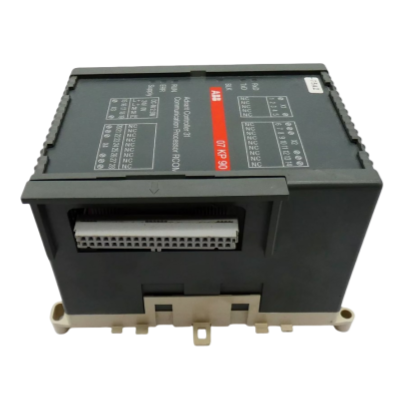

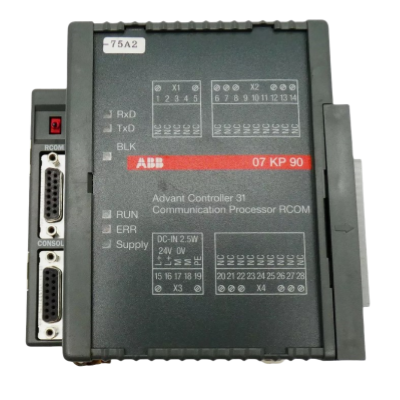

ABB 07KP90 Communications Module

ABB 07KP90
ABB 07KP90
ABB 07KP90

ABB 07KP90 Communications Module

Calculate shipping
Quotation Request
⇒ Model Number 07KP90
⇒ Country of Origin:  Sweden
⇒ Description: Communications Module
⇒ Shipping Worldwide by DHL /Fedex /TNT / UPS
⇒ Weight

0.4KG
⇒ Dimensions

15.2 cm x 10.2 cm x 15.2 cm


Mobile :86-18020776792        Email : sales@amikon.cn

What’s app:86-18020776792  Skpye:miyazheng520

ABB 07KP90 Product Parameters

Module Type:  Analog Output Module
Number of Output Channels:  16 independent analog output channels
Output Signal Types:
Voltage Output:  0-10 V
Current Output:  4-20 mA
Output Accuracy:  ±0.1%
Output Resolution:  16 bits
Power Supply Voltage:  24 V DC ±20%
Operating Temperature Range:  -25°C to +55°C
Relative Humidity:  5% to 95%
Insulation Level:
 Electrical isolation between inputs and outputs, as well as between outputs and ground
Communication Interface:
 Integrates seamlessly with the control system via a bus communication protocol

Product Description

The ABB 07KP90 is a high-performance analog output module designed to provide exceptional signal processing capabilities for a variety of industrial applications. With 16 independent analog output channels, this module is capable of generating both voltage outputs of 0-10 V and current outputs of 4-20 mA, offering versatility in signal transmission. The output accuracy is impressive at ±0.1% of the full scale, ensuring precise control and monitoring in demanding environments. This module features a high output resolution of 16 bits, enabling fine-grained control over the connected devices.
Designed for robust operation, the ABB 07KP90 operates effectively within a temperature range of -25°C to +55°C and is rated for relative humidity levels of 5% to 95% without condensation. It ensures electrical isolation between the inputs and outputs, as well as between the outputs and ground, providing enhanced safety and signal integrity in complex systems. The module is powered by a stable supply voltage of 24 V DC ±20%, which is essential for its reliable performance.
The ABB 07KP90 is designed to fit standard rack dimensions, making it easy to integrate into existing control systems. It communicates seamlessly with other components via a bus communication protocol, facilitating smooth data exchange and system integration. This module is ideal for applications in process control, industrial automation, and data acquisition systems, where reliability and precision are paramount.

If you want to more details，please contact me without hesitate. Email：sales@amikon.cn

Technical Issues and Solutions

1.Output Signal Not Generated

Issue: The module fails to produce the expected output signal.

Solution:Check if the module is correctly configured in the control system.
2.Inaccurate Output Readings

Issue: Output signals are fluctuating or significantly deviate from expected values.

Solution:Confirm that the output signal type is set correctly (e.g., 0-10 V or 4-20 mA) in the configuration settings.
3.Faulty LED Indicators

Issue: Status LEDs do not illuminate correctly or show erroneous indications.

Solution:Ensure that the module is receiving proper power and is properly seated in the rack.
4.Communication Failure with Control System

Issue: The module does not communicate effectively with the control system, resulting in error messages or data loss.

Solution:Verify that communication settings in the control system match the module’s specifications.
