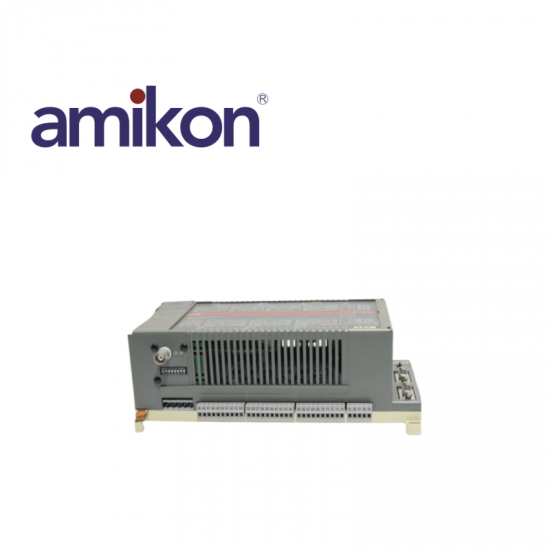

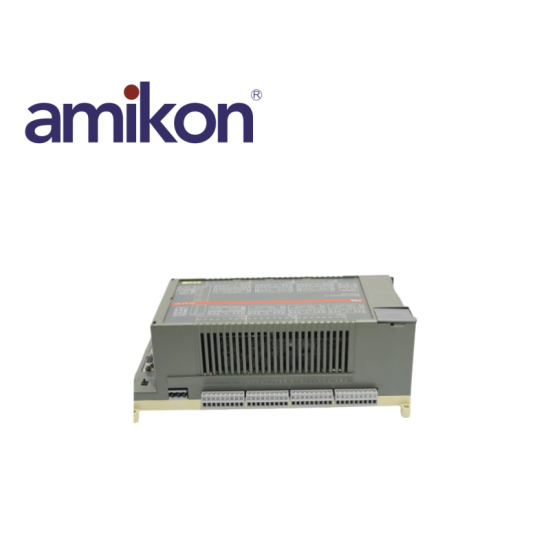

ABB 07KT97 Analog Input Module

ABB 07KT97
ABB 07KT97
ABB 07KT97

ABB 07KT97 Analog Input Module

Calculate shipping
Quotation Request
⇒ Model Number 07KT97
⇒ Country of Origin:  Sweden
⇒ Description: Analog Input Module
⇒ Shipping Worldwide by DHL /Fedex /TNT / UPS
⇒ Weight

0.5KG




Mobile :86-18020776792        Email : sales@amikon.cn

What’s app:86-18020776792  Skpye:miyazheng520



Technical Data 07 KT 97

General data
Number of digital inputs  24
Number of digital transistor outputs  16
Number of digital inputs/outputs  8
Number of analog inputs 8
Number of analog outputs 4
I/O expansion via CS31 system bus by up to 992 digital inputs
992 digital outputs
224 analog input channels
224 analog output channels
max. 31 remote modules altogether
Number of serial interfaces 2 (for programming or connection to man-machine communication)
Number of parallel interfaces  1 special interface for connection of a communication processor (for networking with other bus systems)
Integrated memory

Flash EPROM 512 kB

(480 kB program + configuration data)

RAM 2 MB

(480 kB program with on-line programming

+ 256 kB variables)
Resolution of the integrated real-time clock  1 second
Data of the integrated high-speed hardware counter
Number of operating modes  7
Counting range  -32768...+32767 (16 bits signed integer)
Counting frequency  max. 50 kHz
Processing time, 65 % bits, 35 % words  typ. 0.3 ms/kB program
Number of software timers  any (max. 80 simultaneously active) delay time of the timers 1 ms...24.8 days

Product Details

 Power supply
Rated supply voltage 24 V DC
Current consumption  max. 0.35 A
Protection against reversed polarity  yes
Lithium battery
Battery for backup of RAM contents  Battery module 07 LE 90
Lifetime at 25°C  typ. 5 years
Digital inputs
Number of channels per module  24
Distribution of channels into groups  3 groups of 8 channels each
Common reference potential
for group 1  (8 channels) ZP0 (channels 62,00...62,07)
for group 2  (8 channels) ZP1 (channels 62,08...62,15)
for group 3  (8 channels) ZP2 (channels 63,08...63,15)
Input signal voltage
Signal 0 -30 V...+ 5 V
Signal 1  +13 V...+ 30 V
Input current per channel
Input voltage = +24 V  typ. 7.0 mA
Input voltage = + 5 V  > 0.2 mA
Input voltage = +13 V  > 2.0 mA
Input voltage = +30 V  < 9.0 mA

If you want to more details，please contact me without hesitate. Email：sales@amikon.cn

Freequently Asked Questions

  • What is the ABB 07KT97 module?

    • The ABB 07KT97 is an analog input module designed for industrial automation systems, featuring 8 independent analog input channels that can handle various signal types.

  • What types of input signals can the 07KT97 module accept?

    • The module can accept input signals of 0-20 mA, 4-20 mA, 0-10 V, and 2-10 V, making it versatile for different applications.

  • What is the accuracy of the input signals?

    • The input accuracy of the module is ±0.5% (typical), ensuring reliable signal measurement for industrial processes.

  • What is the resolution of the input channels?

    • The module provides a resolution of 12 bits for each input channel.

  • What is the input impedance for current and voltage inputs?

    • For current inputs, the maximum input impedance is 250 Ω, and for voltage inputs, it is a minimum of 1 MΩ.
