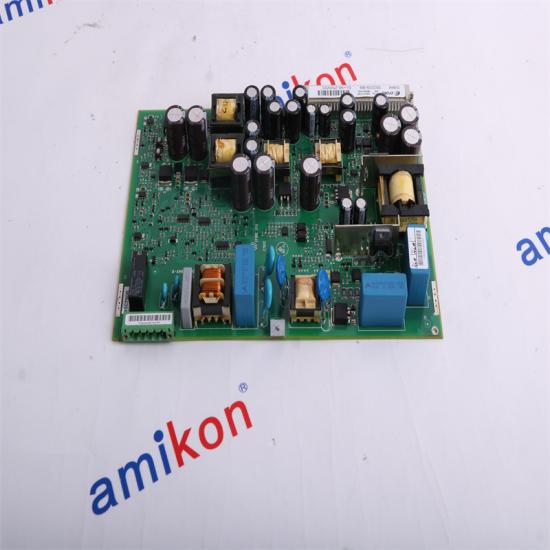

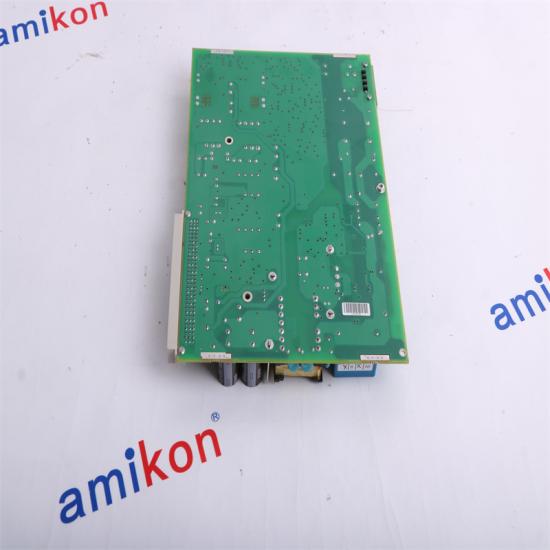

ABB 1MRK002239-BB Power supply module

ABB 1MRK002239-BB
ABB 1MRK002239-BB
ABB 1MRK002239-BB

ABB 1MRK002239-BB Power supply module

Calculate shipping
Quotation Request
⇒ Model Number 1MRK002239-BB
⇒ Country of Origin:  Sweden
⇒ Description: Power Supply Module
⇒ Shipping Worldwide by DHL /Fedex /TNT / UPS
⇒ Weight

0.52KG
⇒ Dimensions

23.2x16.7x3cm


Mobile :86-18020776792        Email : sales@amikon.cn

What’s app:86-18020776792  Skpye:miyazheng520

Technical Specifications for 1MRK002239-BB

Manufacturer ABB Condition 100% New Original
Brand ABB Overload current 5-40 mA
Part Number/Catalog No. 1MRK002239-BB Rated input voltage 40 VDC
Product Package
 Original Package
 Manufacture Year 2024
Product Name Power Supply Board Tariff Number 85364991

About 1MRK002239-BB

  • • The 1MRK002246-BC is Power Supply Board.The Power Supply Board for the Inverter Unit (INU) are mounted on a doorthat can be opened for access to other components mounted insidethe INU.The Power Supply Card A3 is mounted on the back of thedoor.



• All the connections to the door mounted .cards are at the hingeside and the cable routing is such that the flexing of the cables isminimized by having them run parallel to the hinge. Located on theback panel is the A4 Pulse Amplifier Card.The Pulse Amplifier Cardpart number depends on the rating of the Drive.

If you want to more details，please contact me without hesitate. Email：sales@amikon.cn

Selection of The Cable

The international reference Standard ruling the installation and calculation of the current carrying capacity of cables in residential and industrial buildings is IEC 60364-5-52 “Electrical installations of buildings – Part 5-52 Selection and Erection of Electrical Equipment- Wiring systems”.
The following parameters are used to select the cable type:
♦ conductive material (copper or aluminium): the choice depends on cost, dimension and weight requirements, resistance to corrosive environments (chemical reagents or oxidizing elements). In general, the carrying capacity of a copper conductor is about 30% greater than the carrying capacity of an aluminium conductor of the same cross section. An aluminium conductor of the same cross section has an electrical resistance about 60% higher and a weight half to one third lower than a copper conductor.
♦ insulation material (none, PVC, XLPE-EPR): the insulation material affects the maximum temperature under normal and short-circuit conditions and therefore the exploitation of the conductor cross section [see Chapter 1.4 “Protection against short-circuit”].
♦ the type of conductor (bare conductor, single-core cable without sheath, single-core cable with sheath, multi-core cable) is selected according to me-chanical resistance, degree of insulation and difficulty of installation (bends, joints along the route, barriers...) required by the method of installation.

Technical Issues and Solutions

  • Communication Failures

    • Issue: Unable to establish communication with other devices or systems.
    • Solution: Check the communication settings (protocol, baud rate) to ensure they match the connected devices. Verify that the wiring is intact and connections are secure.

  • Power Supply Problems

    • Issue: The device does not power on or experiences power interruptions.
    • Solution: Confirm that the power supply is within the specified voltage range. Inspect power cables and connections for damage. If using a secondary power source, test its functionality.

  • Configuration Issues

    • Issue: Difficulty in configuring settings or parameters.
    • Solution: Refer to the user manual for detailed configuration steps. Ensure that all settings are saved correctly, and consider resetting the device to factory settings if configurations are not applying.

  • Overheating

    • Issue: The device operates at high temperatures.
    • Solution: Ensure there is adequate ventilation around the device. Check for any obstructions that may block airflow. If overheating continues, relocate the device to a cooler area.

  • Fault Diagnostics Not Triggering

    • Issue: Alarms or diagnostics do not activate as expected.
    • Solution: Review the configuration of alarm settings and ensure fault detection is enabled. Check that threshold parameters are correctly set.
