ABB 200-CICN Control Interface Card

ABB 200-CICN
ABB 200-CICN
ABB 200-CICN

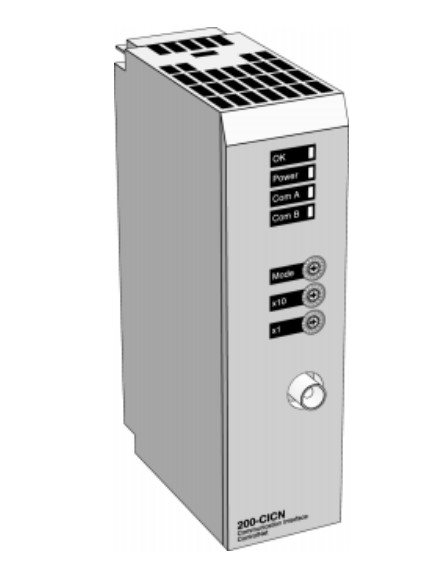

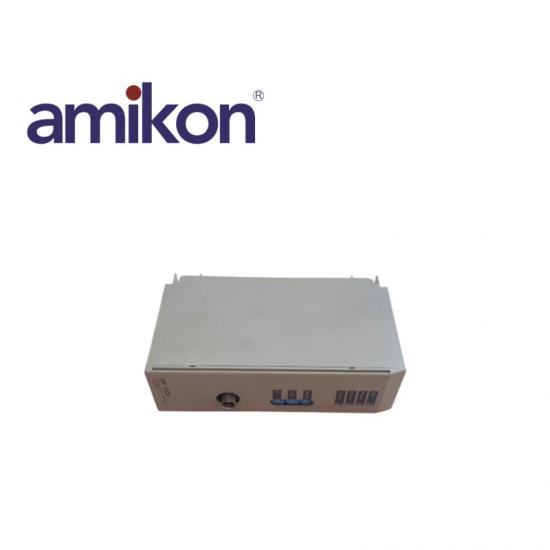

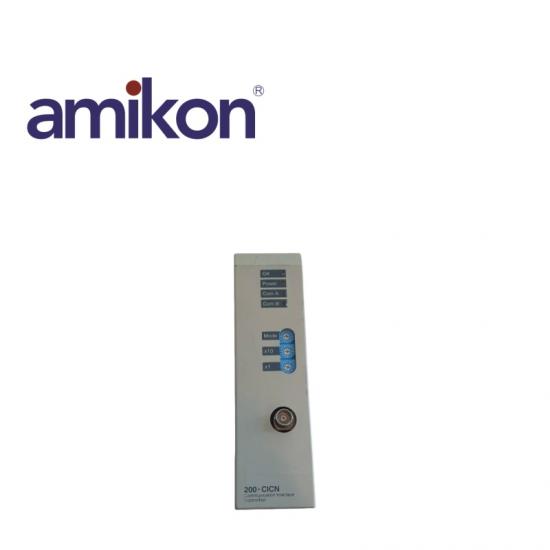

ABB 200-CICN Control Interface Card

Calculate shipping
Quotation Request
⇒ Model Number 200-CICN
⇒ Country of Origin:  Sweden
⇒ Description: Control Interface Card
⇒ Shipping Worldwide by DHL /Fedex /TNT / UPS


Mobile :86-18020776792        Email : sales@amikon.cn

What’s app:86-18020776792  Skpye:miyazheng520



Technical Data

200-CICN
Number of channels 1
Communication protocol ControlNet
Access method CTDMA (Concurrent Time Division Multiple Access)
Galvanic isolation Isolation via a signal transformer
Speed of transfer 5 Mbit/s
Status indicators Green/Red LEDs for OK (unit status) and for COM A and B (communication information).
Power supply From 200-PSMG/PSSG Power supply unit
Internal current consumption (from PSMG/PSSG) Max. 0.5 A
Connector BNC 75 Ω at the front
Backplane key code 8
Weight

0.25 kg excl. packaging

0.33 kg incl. packaging
Dimensions H163 x W45 x D91 mm
Order code 200-CICN

Product Details

The 200-CICN is an interface to the ControlNet industrial network. It is used for the remote connection of Series 200 I/O.
Each 200-CICN acts as an I/O scanner for up to 31 200-ACN Remote I/O-adapters. The number of allowed adapters depends on which CPU is used (SattCon 200 or SattLine). A coaxial cable is used for connection to the Remote I/O.
The 200-CICN is connected to the ControlNet cable system via a tap and a 1 m drop cable.
The unit has drivers and receivers for the ControlNet connection, which is performed via an insulation transformer to a BNC connector.
The network address is defined by two rotary switches. One green LED show status for internal power. Three bicolour (red/green) LEDs show the channel status.

If you want to more details，please contact me without hesitate. Email：sales@amikon.cn

Freequently Asked Questions

  • What is the ABB 200-CICN used for?
    The ABB 200-CICN is a Control Interface Card designed to facilitate communication between ABB control systems and field devices, enhancing automation and system integration.

  • What types of communication protocols does the 200-CICN support?
    The 200-CICN supports multiple communication protocols, allowing it to connect seamlessly with various ABB systems and devices.

  • What is the input voltage required for the 200-CICN?
    The ABB 200-CICN requires a nominal input voltage of 24V DC.

  • What is the operating temperature range for this card?
    The operating temperature range is between -20°C to +70°C (-4°F to +158°F).

  • Is the 200-CICN suitable for outdoor use?
    The 200-CICN is designed for indoor use and should be installed in a controlled environment. It has an IP rating that makes it suitable for typical industrial settings but not for direct exposure to outdoor conditions.
