| General Information | |
| Product ID: | 3BSE018298R1 |
| ABB Type Designation: | DSDO 115A |

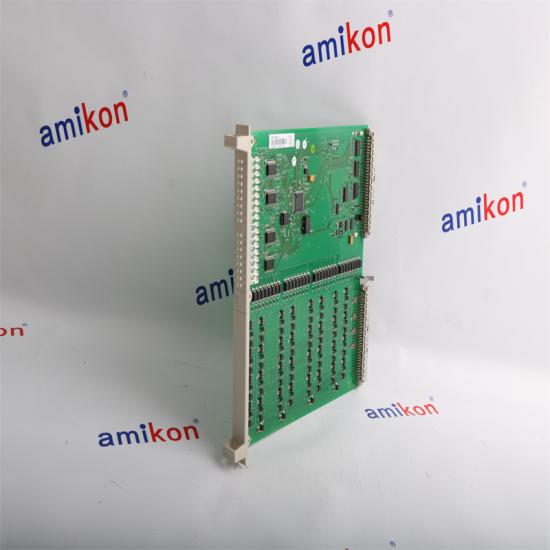

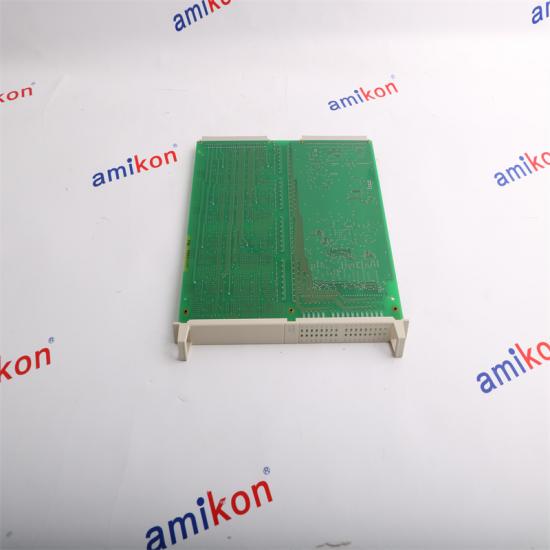

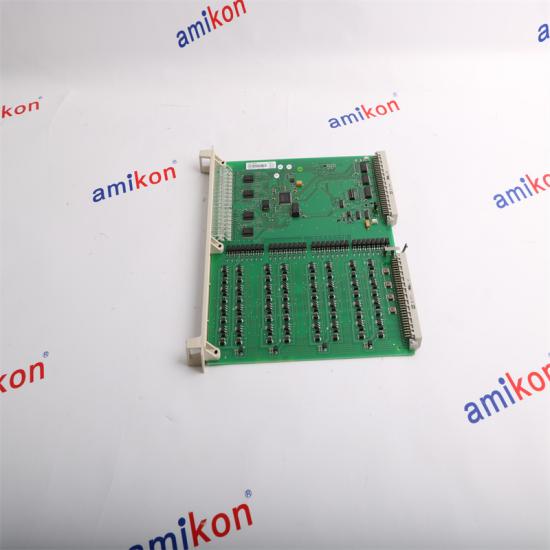

| Catalog Description: | DSDO 115A Digital Output Board 32 Channe |
| Long Description: |
Digital Output Board Note! This part is exempted from the scope of 2011/65/EU (RoHS) as provided in Article 2(4)(c), (e), (f) and (j) therein (ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY - ABB Advant Master Process Control System) |
| Additional Information | |
| Medium Description: | DSDO 115A Digital Output Board 32 Channels 24Vdc 0.5 A |
| Product Type: | I-O_Module |
| Technical Information: | Digital Output Board |
| Ordering | HS Code: | 853890-- Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37.- Other |
| Customs Tariff Number: | 85389091 | |
| Dimensions | Product Net Depth / Length: | 324 mm |
| Product Net Height: | 22.5 mm | |
| Product Net Width: | 234 mm | |
| Product Net Weight: | 0.32 kg | |
| Environmental | RoHS Status: | Not RoHs Compliant |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) | |
| SCIP: | cdd013e1-a150-4d00-9d56-3fd8695cbfdb Sweden (SE) |
If you want to more details，please contact me without hesitate. Email：sales@amikon.cn
