| Mfr. Part Number: |
6632097A1 |
| Manufacturer: | ABB |

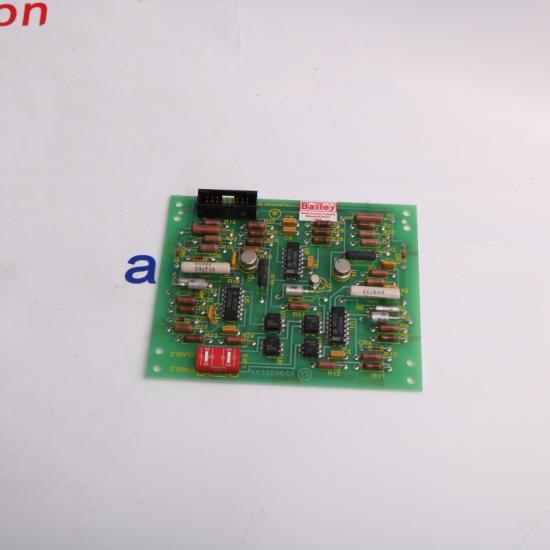

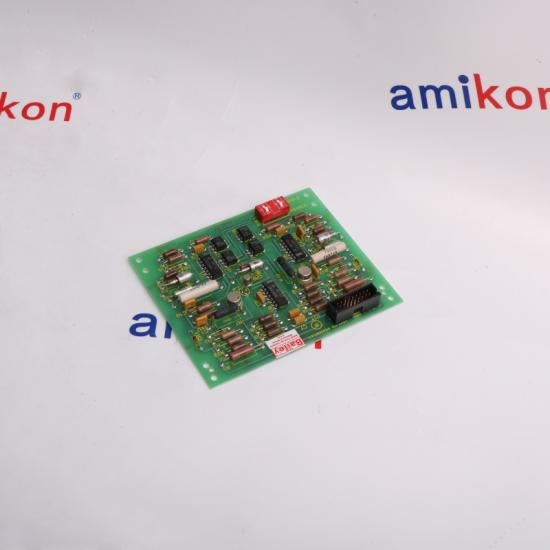

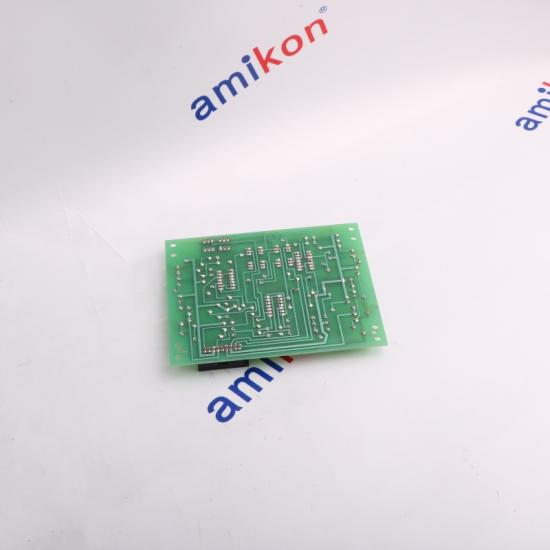

| Description: | ABB 6632097A1 Power Panel Alarm Board |
| Full Description: | ABB 6632097A1 Power Panel Alarm Board Backplane Distribution Board (BDB) with either 2 or 6 slots |
| Status: | In stock Ready for shipment |
| PowerView consists of three main components: |
| • A sheet metal enclosure surrounding a Backplane Distribution Board (BDB) with either 2 or 6 slots |
| • A Main Control Board (MCB), with USB and RJ-45 connectors for communicating with other modules inside the distribution product and with service tools. |
| Daughter cards with various metering and monitoring functions which can be mixed according to the needs of the unit to be monitored. Daughter cards can be added to an existing PowerView for new capabilities. Installation and configuration must be completed by ABB Service personnel. o Analog Conditioning Boards (ACB) for monitoring branches and sub-feeds. Each board has two sets of connectors: |
| • Four connectors with 22 positions for connecting to branch or sub-feed current transformers (CT). |
| • One connector with 8 positions for connecting to panel main or sub-feed CT’s. |
| • Four 2 pin connectors for connecting to voltage phases and neutral. |
