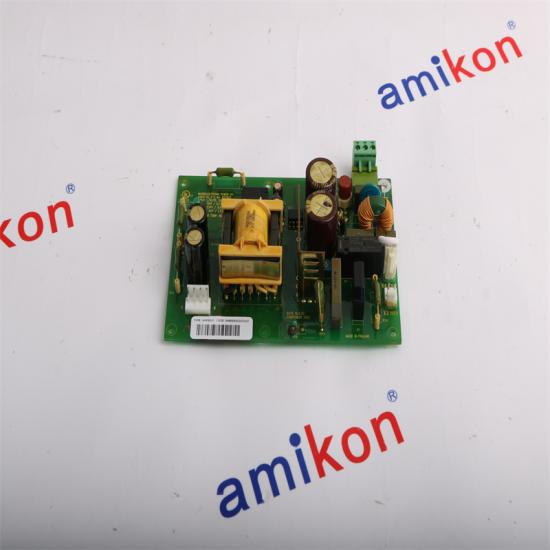

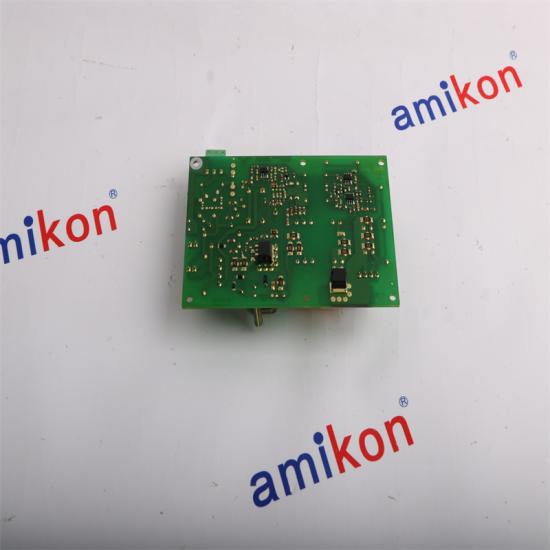

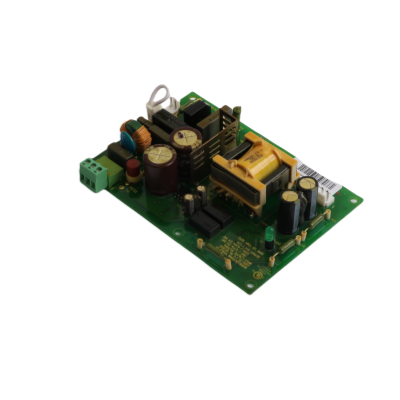

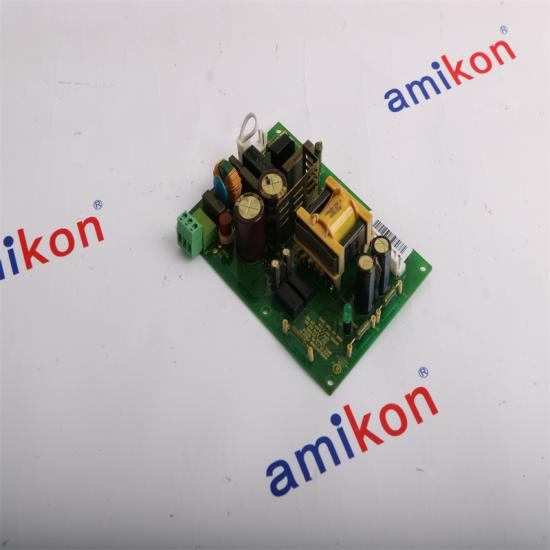

ABB AGPS-21C Power Module

The ABB AGPS-21C is a power module within the ABB Ability™ System 800xA® control system series, designed to provide power to various modules within the control system. Key features include:

♦ High Reliability: Built with high-quality components to ensure long-term stable operation.

♦ High Efficiency: Achieves up to 95% efficiency, contributing to energy savings.

♦ High Power Density: Compact design with high power density, making installation easy.

♦ Low Noise: Operates with low noise levels, suitable for quiet environments.

• High Reliability: The AGPS-21C module uses high-quality components to ensure long-term stable operation, providing reliable performance even in harsh environmental conditions.
• High Efficiency: With up to 95% efficiency, the AGPS-21C helps save energy and reduce operating costs.
• High Power Density: The module boasts a high power density and compact design, making installation straightforward.
• Low Noise: Operating at low noise levels, the AGPS-21C is suitable for use in quiet environments.

The primary function of the AGPS-21C module is to supply power to various modules within the control system, including:

• CPU modules
• I/O modules
• Communication modules
• Other electronic modules

1. Power Supply Issues

• Issue: Module fails to power on or experiences intermittent power.
• Solution:
  • Check the input voltage to ensure it is within the specified range (100-240 VAC).
  • Inspect power connections for damage or loose wiring.
  • Test the power source to confirm stability and functionality.

2. Overheating

• Issue: The module operates at higher than recommended temperatures.
• Solution:
  • Ensure adequate ventilation around the module to facilitate airflow.
  • Remove dust or obstructions that may block cooling vents.
  • Consider relocating the module to a cooler environment if necessary.

3. Low Output Voltage

• Issue: Output voltage drops below expected levels.
• Solution:
  • Verify that the load does not exceed the module’s maximum output current (20 A).
  • Check for any short circuits or faults in connected devices.
  • Inspect the module for damage or internal faults.

4. Noise Issues

• Issue: The module produces excessive noise during operation.
• Solution:
  • Ensure that the module is installed on a stable surface to minimize vibrations.
  • Check for loose components or connections that may contribute to noise.
  • If noise persists, consider consulting technical support for further assessment.

5. Faulty Diagnostics

• Issue: Diagnostic indicators do not function or show errors.
• Solution:
  • Refer to the user manual for error codes and troubleshooting steps.
  • Perform a reset of the module and check for firmware updates if applicable.
  • Contact ABB technical support if the issue continues.
