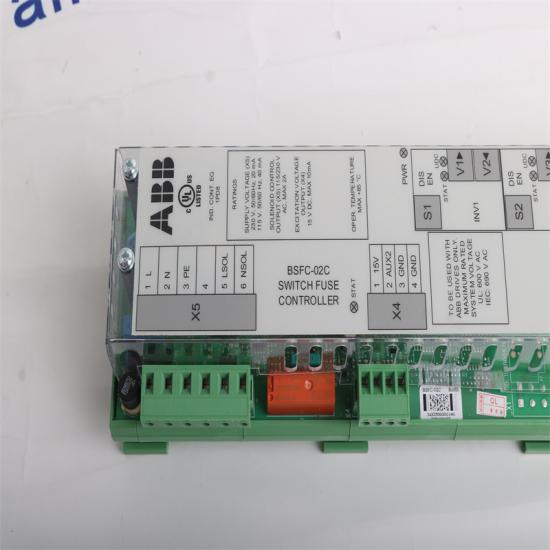

| BSFC-02C | |
| Power supply input (X5） |
operating voltage 115 VAC or 230 vAC 士10%,50/60 Hz current consumption 20 mA(230 V AC) or 40 mA (115 VAC) typical |
|
Protection by Microfuse 2 A, slow Control voltage 115VAC or 230 VAC,+10/-/Control voltage 24v DC土10% |
|
|
Solenoid control output (X5) |
Control voltage 115VAC or 230 VAC,+10/- 15% |
| Control current max.2 A for 3.5 s or max.4 A for 20 ms | |
| Protection by Microfuse 2 A, slow (common with power supply input)6-position detachable screw terminal block, wire size max. 2.5 mm2 | |
|
Switch feedback in- put(X4) |
voltage output 15 v DC max. 10 mA |
| 4-position detachable screw terminal block, wire size max. 2.5 mm2 | |
|
optical links (1...v6) |
Avago Versatile Link series 5 MBd optical transmitters & receivers Max. optical cable (POF) length 4 m (13.1 ft) |
 |
|

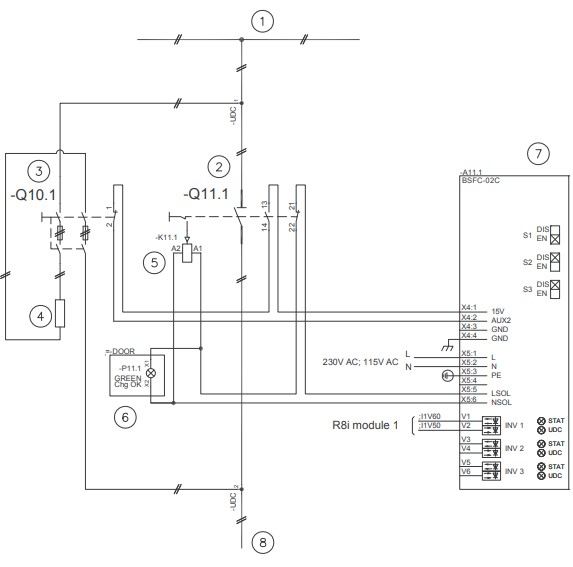

| 1 | Drive DC bus |
| 2 | DC switch-disconnector |
| 3 | Charging fuse-switch |
| 4 | Charging resistors |
| 5 | Locking solenoid for DC switch-disconnector |
| 6 | Indicator lamp on the cabinet door |
| 7 | BSFC-02C unit |
| 8 | R8i module DC input connection |
If you want to more details，please contact me without hesitate. Email：sales@amikon.cn
