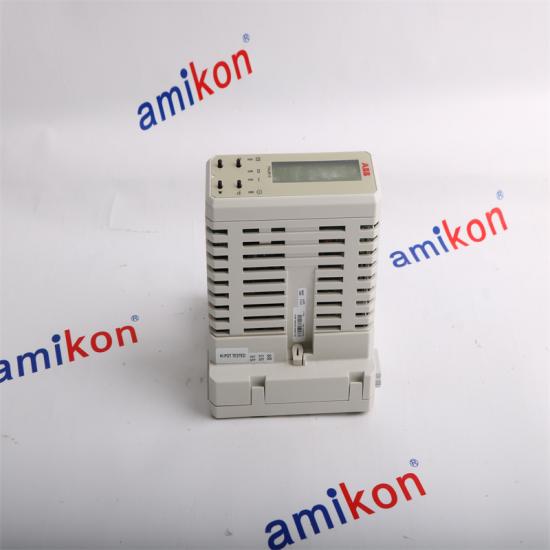

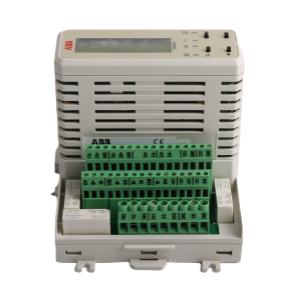

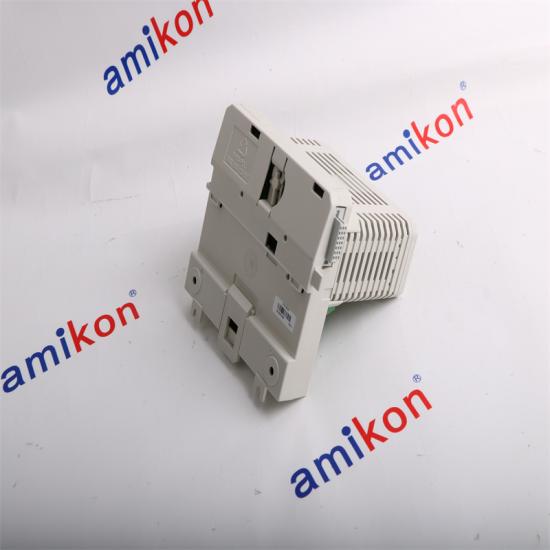

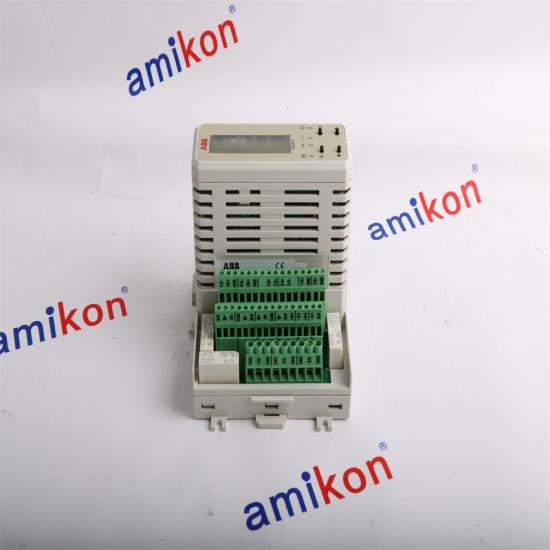

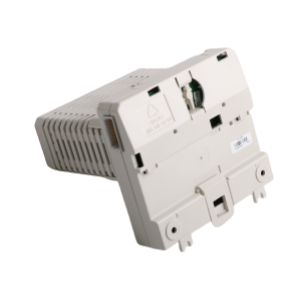

ABB FAU810 C10-12010 Flame Analysis Unit

ABB FAU810 C10-12010
ABB FAU810 C10-12010
ABB FAU810 C10-12010

ABB FAU810 C10-12010 Flame Analysis Unit

Calculate shipping
Quotation Request
⇒ Model Number FAU810 C10-12010
⇒ Country of Origin:  Sweden
⇒ Description: Flame Analysis Unit
⇒ Shipping Worldwide by DHL /Fedex /TNT / UPS
⇒ Weight

0.58KG
⇒ Dimensions

12.8x11.6x12.2cm


Mobile :86-18020776792        Email : sales@amikon.cn

What’s app:86-18020776792  Skpye:miyazheng520

ABB FAU810 C10-12010

General Information
Product ID: C10-12010
ABB Type Designation: /
Catalog Description: FAU810
Long Description: FAU810 - Flame Analysis Unit, Dual Channel Complete Assembly with Dual Profibus DPV1 and CI capability CE-FM
Ordering
Customs Tariff Number: 8543709990
Invoice Description: FAU810
Minimum Order Quantity: 1 EA
Classifications
WEEE Category: 5. Small Equipment
ABB Product Family: Combustion Instruments

Product Overview

The Flame Analysis Unit, or FAU810, is ABB’s latest leading-edge flame analysis device.
The FAU810 is designed from the ground up for maximum flexibility, usability and reliability. It takes advantage of the latest technologies available to make flame analysis as cost-efficient as possible, while retaining ABB’s rock-solid reputation as the most reliable instruments in the industry. The FAU810 is easy to install and configure, flexible to operate, and uses redundant Profibus DP-V1 or standard Modbus interfaces for easy and safe data exchange and tuning. Flexible and reliable device for use with all ABB flame detectors
FAU810 can process any type of ABB Flame sensing device, from the legacy DFS scanner to the latest single and multisensor UvisorTM SF810. This makes the FAU810 the standard module for all ABB Flame Scanner application and the preferred solution for retrofitting existing installation. A wide range of tuning can be defined in the FAU810 to account for any situation that may occur in utility or industrial boilers.
Collects signal values from the flame detector
Calculates signal quality
Continuously detect faults
Signals unsafe conditions
Profibus DPV1 and Modbus connectivity

If you want to more details，please contact me without hesitate. Email：sales@amikon.cn

Field tested, Field proven

ABB flame scanners are installed around the world in a wide ranging set of power and process industry applications. These applications include:

• Power Generation

– Main boiler

• Oil & gas, steel, and chemical

– Heaters

 – Furnaces

      – Industrial boilers

• Cement

  – Main burners

  – Kilns

  – Industrial boiler for CPP

• Waste incinerators

  – Burners

• Fire stacks

• Petrochemicals

  – Heaters

  – Furnaces

  – Industrial boilers

Technical Issues

1.Power Supply Problems:
  • Verify that the unit is receiving the correct voltage.
  • Check for loose connections or damaged cable
2.Sensor Malfunctions:
  • Inspect sensors for proper functioning; replace any that are faulty.
  • Ensure sensors are calibrated correctly for accurate readings.
3.Communication Failures:
  • Confirm that communication settings match with connected devices.
  • Check for issues in wiring or connectivity, including protocol mismatches.
4.Software/Firmware Issues:
  • Ensure the latest firmware is installed; consider updating if needed.
  • If issues arise after an update, reverting to a previous version may be necessary.
5.Overheating:
  • Ensure proper ventilation around the unit to prevent overheating.
  • Check for dust or obstructions that may block airflow.
