| General Information | |
| Product ID: | HIEE300698R0001 |

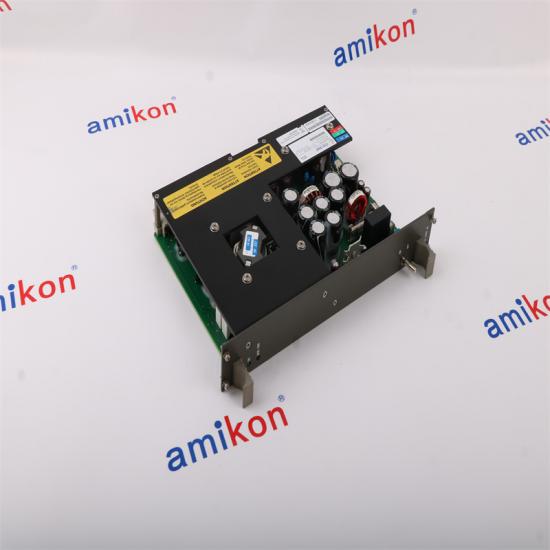

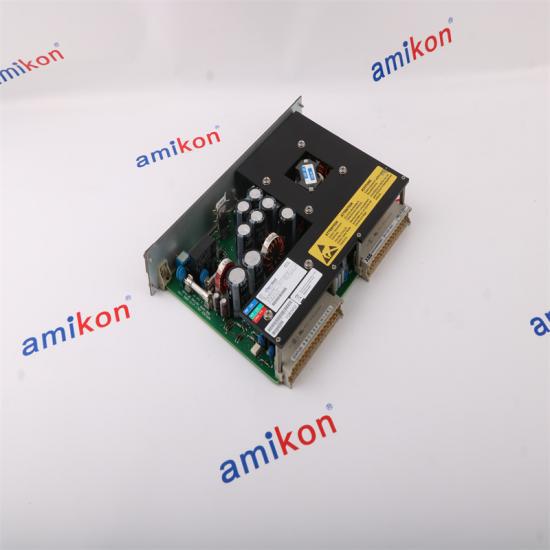

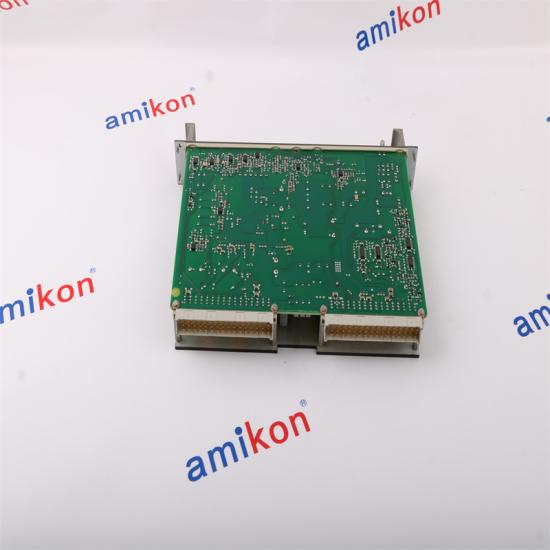

| Catalog Description: | KU C321 AE01:PSR2-Power Supply |
| Additional Information | |
| Country of Origin: |
Switzerland (CH)
Belgium (BE)
|
| Customs Tariff Number: | 85044000 |
| Frame Size: | Undefined |
| Part Type: | New |
| Product Type: | Undefined |
| The ABB HIEE300698R0001 is generally a module or component designed for integration into ABB's automation and control systems. It may be involved in tasks related to signal processing, control, or communication. | |
| Voltage: | 24 V DC |
| Current Consumption: | 100 mA and 500 mA |
| Digital Inputs: | 24 V DC. |
| Analog Inputs: | 0-10 V or 4-20 mA. |
| Digital Outputs: | 0.5 A to 2 A. |
| Analog Outputs: | 0-10 V or 4-20 mA. |
| 1. Power Supply Issues: |
|
Problem: The module does not power up or shows erratic behavior. Cause: This could be due to an incorrect power supply voltage, poor connections, or a malfunctioning power supply unit. Solution:Verify that the power supply is providing the correct voltage (typically 24 V DC) and check for any fluctuations. |
| 2. Communication Failures: |
|
Problem: The module fails to communicate with other system components or control systems. Cause: Potential causes include incorrect configuration settings, faulty communication cables, or issues with the communication protocol. Solution:Check the communication settings and ensure they are correctly configured for the protocol in use (e.g., Modbus, Profibus, Ethernet). |
| 3. Input/Output Issues: |
|
Problem: Inputs or outputs are not responding or are inconsistent. Cause: This might be due to incorrect wiring, configuration errors, or malfunctioning field devices. Solution:Verify that all input/output wiring is correctly connected according to the module’s specifications. |
| 4. Overheating: |
|
Problem: The module becomes excessively hot during operation. Cause: Overheating could be caused by inadequate ventilation, ambient temperature exceeding specifications, or a malfunctioning module. Solution:Check the ambient temperature and ensure it is within the specified operating range (-20°C to +60°C). |
