1.Switch off the PC and all its peripherals. Disconnect the mains leads. |
 |
| 2.Switch off the mains supply and other dangerous voltages (e.g. from external control circuits) to the ACx 600. | |

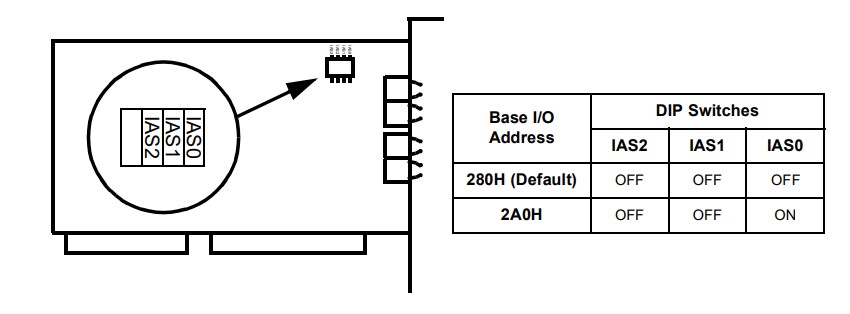

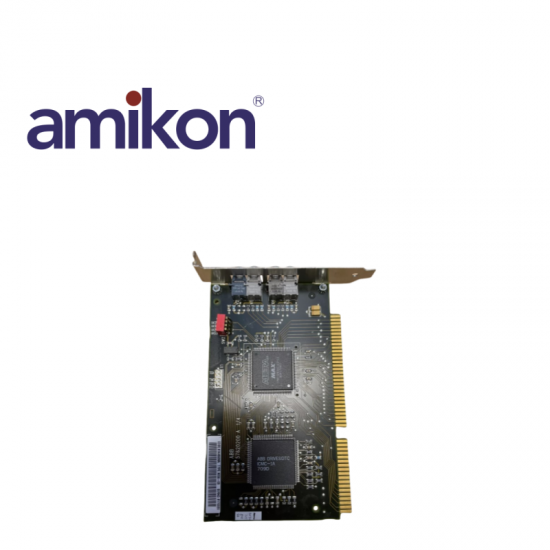

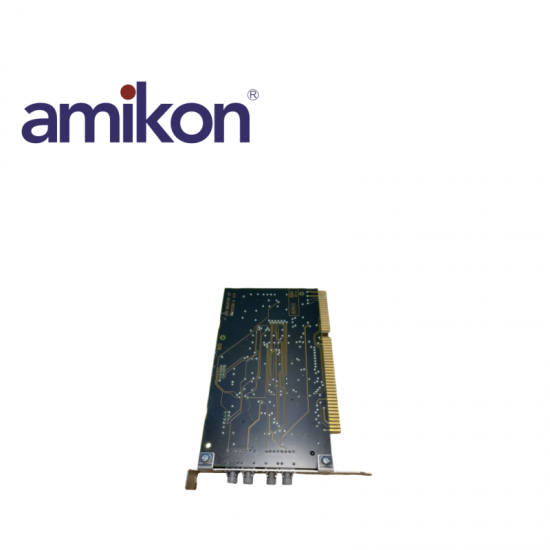

| 3.Remove the PC cover. Check that no existing boards use the same addressing space with the NISA-03. The default base I/O address for the NISA-03 is 280H. (The NISA-03 requires 32 consecutive locations.) If this address is already used by another board on the system, 2A0H can be selected using the DIP switches as shown below. (DIP switch IAS3 is not used.) | |
| 4.Locate an available 16-bit ISA card slot. Remove the expansion slot cover and screw. (Keep the screw.) | |
| 5.Press the NISA-03 Adapter into the slot evenly and firmly. Use the screw from the slot cover to fasten the NISA-03 into its place. | |
| 6.Close the PC cover. | |
| Before proceeding, make sure that the intermediate circuit capacitors in the ACx 600 have discharged. (Before starting work on the ACx 600, wait at least 5 minutes after switching off the mains supply.) | |

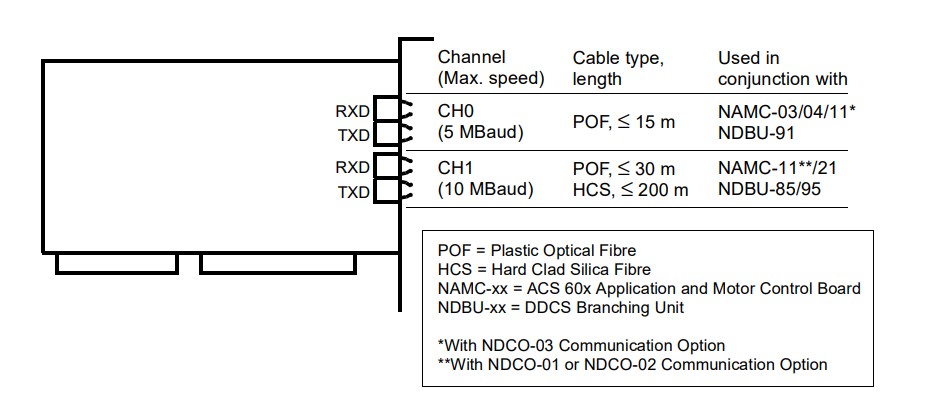

| 7.Open the front cover (or door) of the ACx 600. Locate the NAMC (or NDBU) board. (The actual location of the boards inside the drive vary depending on drive type.) Lead the fibre optic cables to the inside of the drive. Use grommets at cable lead-throughs. |
