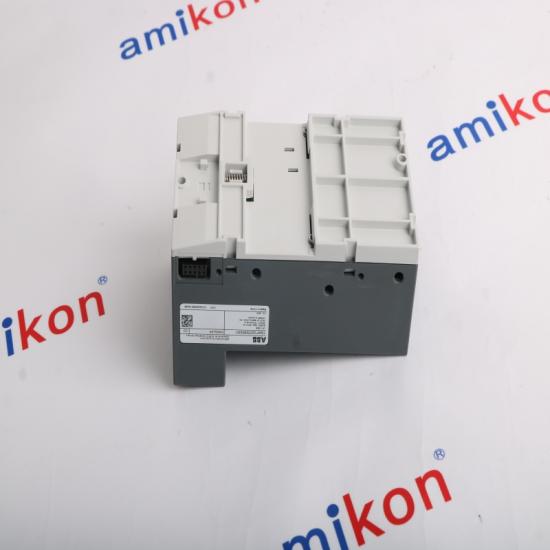

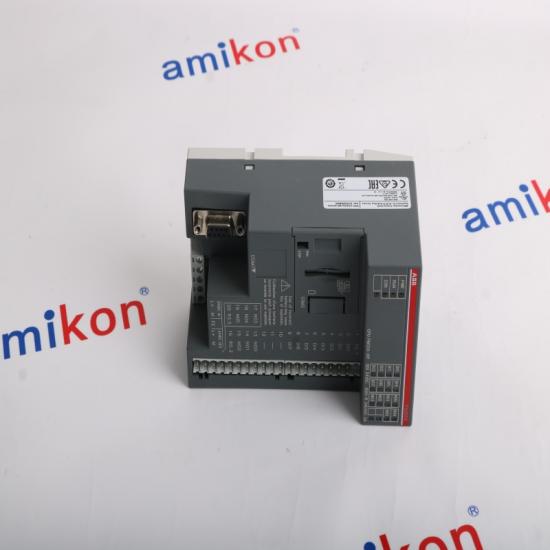

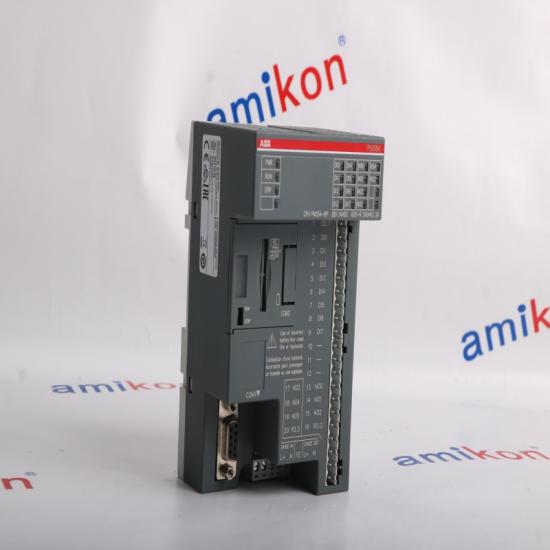

| Product module | PM554-RP |
| Brands | ABB |
| Payment | Paypa/TT |
| Condition | 100% New |
| Weight | 0.3KG |
| Production year | 2024 |
| country of origin | SWEDEN |
ABB PM554-RP Detailed data of the interfaces
| Serial interface COM1 | |
| •Physical link | RS-485 |
| •Galvanic isolation | none |
|
•Transmission rate |
Configurable from 1.2 to 187.5 kBit/s |
| •Connection | 9-pin D-sub female connector |
| •Common mode range |
Typ. -8 V / +12 V （CAUTION: The interface can be damaged if the signal exceeds the common mode range.) |
| •Usage |
Programming port - Modbus (master and slave) - Serial ASCII communication - CS31 (master only) |
If you have something you want to know more,
you can contact us Miya！
Email : sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
| 1.WEEE B2C / B2B: | Business To Business |  |
| 2.WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) | |
| 3.Rated Voltage (Ur): | 24 V DC | |
| 4.Supply Voltage: | 20.4 … 28.8 V DC | |
| 5.Input Voltage Type: | DC |
| 1. What types of electrical parameters can the PM554-RP measure? |
|
The PM554-RP can measure parameters such as voltage, current, active power, reactive power, power factor, frequency, and energy consumption. It also provides detailed power quality metrics. |
| 2.How do I install the PM554-RP? |
|
Wiring: Follow the wiring diagram provided in the user manual to connect voltage and current inputs. Mounting: Install the device in a suitable panel or enclosure, ensuring proper ventilation and accessibility. Configuration: Use the device’s interface or software to configure settings according to your needs. |
| 3.What communication protocols does the PM554-RP support? |
|
The PM554-RP typically supports Modbus RTU and Modbus TCP protocols. Check the product documentation for details on supported protocols and configuration. |
| 4.What is the power supply requirement for the PM554-RP? |
|
The device usually operates on a standard AC power supply. Specific voltage and frequency requirements are detailed in the user manual. |
