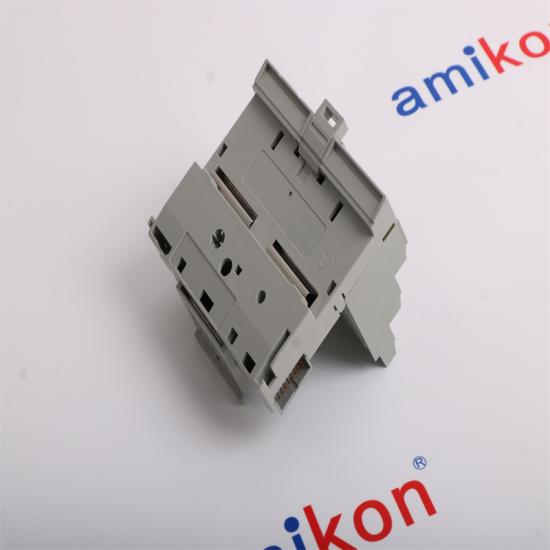

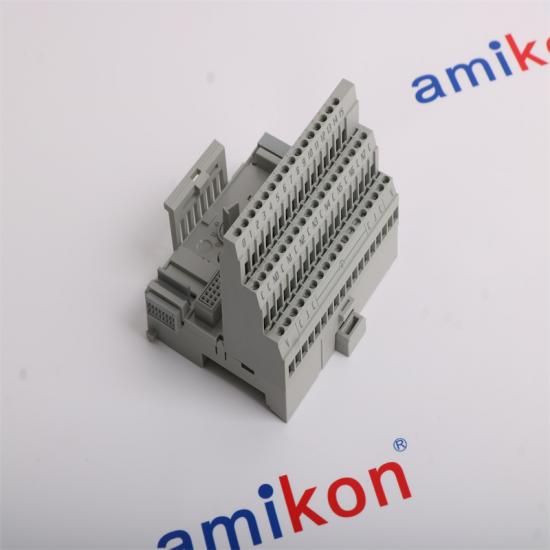

| 200-TB3 | ||
| Number of terminals | 1 row of 16, 2 rows of 18 | |
| Current capacity | 10 A max. | |
| Voltage rating | 132 V AC max. (rms) | |
| Isolation voltage |
Channel-to-channel isolation determined by inserted unit |
|
| Backplane key code | Determined by inserted unit | |
| Wire size |
Solid or stranded copper wire 0.5–2.5 mm2 or AWG 20–AWG 12 |
|
| Weight |
0.225 kg excl. package 0.320 kg incl. package |
|
| Dimensions |
H 94 x W 94 x D 58 mm (with inserted I/O unit: D 72 mm) |
|
| Order code |
200-TB3 200-TB3S 200-TB3T |
|
