| Input Voltage: | |
| Rated input voltage: | 85-264V AC |
| Frequency: | 47-63Hz |
| Input current: | Typically 2A at 230V AC |
| Output Voltage: | |
| Output voltage: | 24V DC |
| Maximum output current: | 5A |
| Power rating: | 120W |
| Efficiency: | |
| High efficiency up to 90%, reducing energy losses and ensuring stable power delivery. |
|
| Operating Temperature Range: |
|
| Operating temperature: |
0°C to +70°C |
| Storage temperature: |
-40°C to +85°C |
| Mounting: | |
| Designed for DIN rail mounting, making it easy to install within control panels. |
|
Product Details

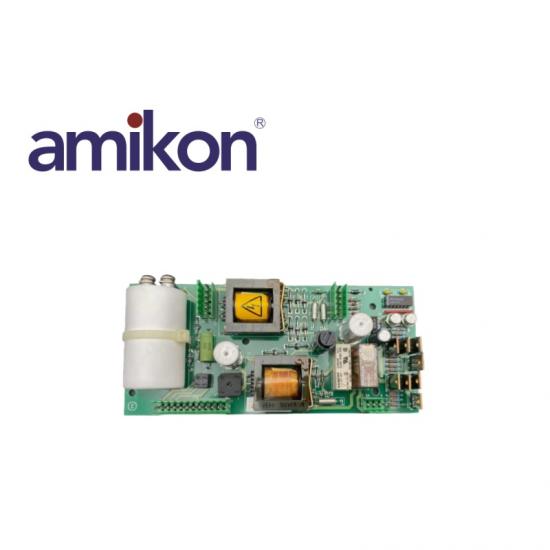

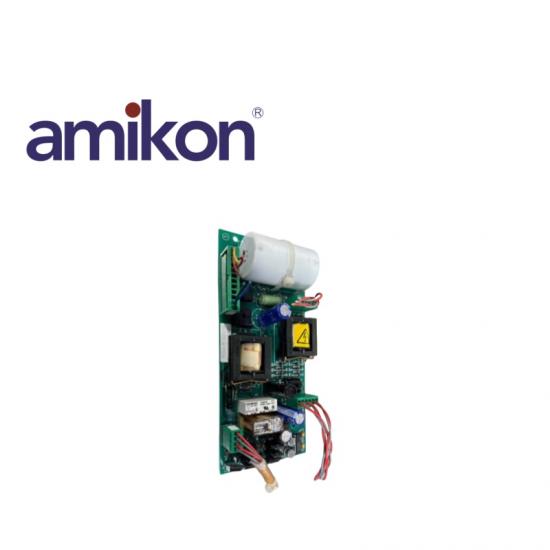

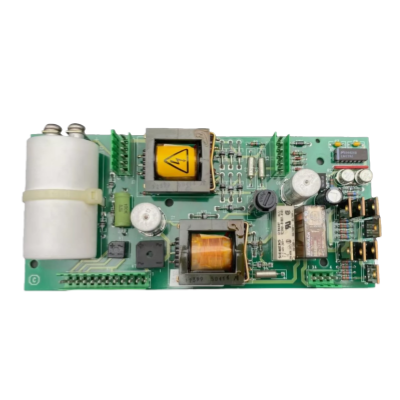

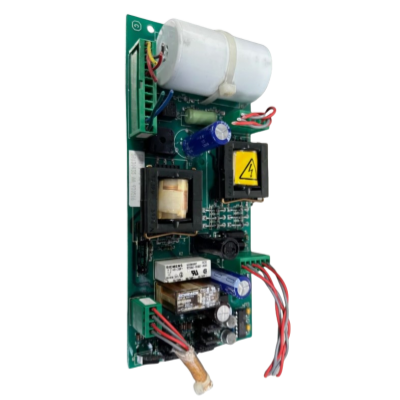

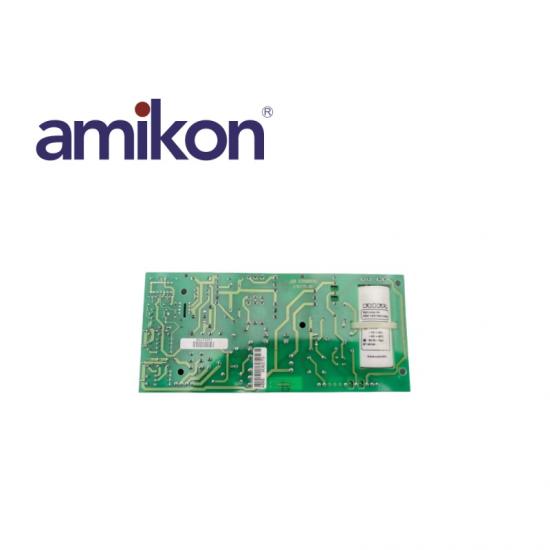

| The SAFT190APC is Power Supply Card. | |||
| SAFT190APC SAFT 190 APC Data sheet | The Control Cards for the Inverter Unit (INU) are mounted on a doorthat can be opened for access to other components mounted insidethe INU. | ||
| The Power Supply Card A3 is mounted on the back of thedoor. | |||
| All the connections to the door mounted cards are at the hingeside and the cable routing is such that the flexing of the cables isminimized by having them run parallel to the hinge. | |||
 |
 |
||
If you want to more details，please contact me without hesitate. Email：sales@amikon.cn
