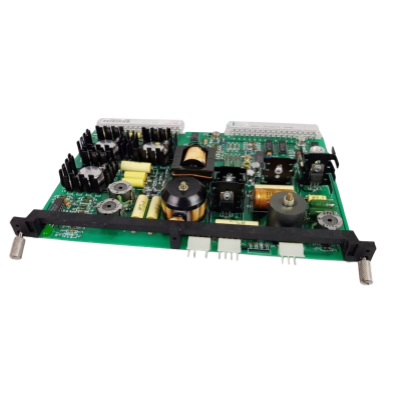

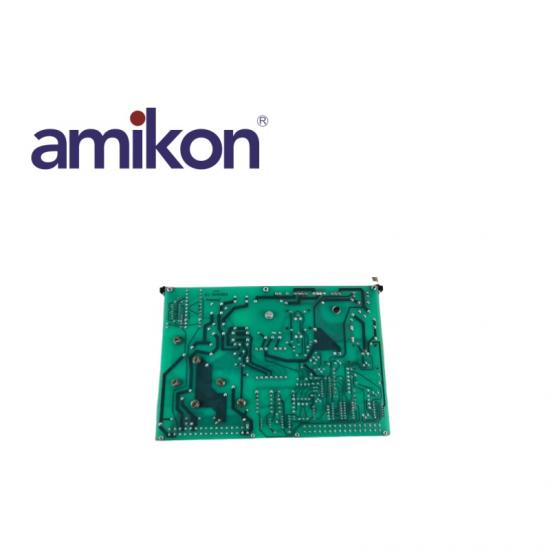

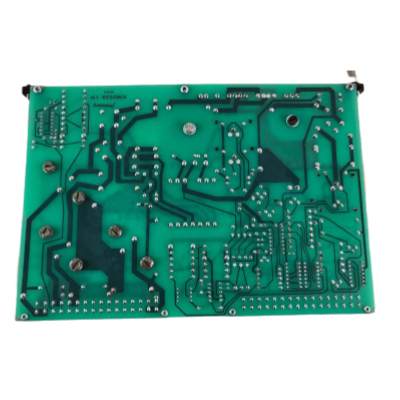

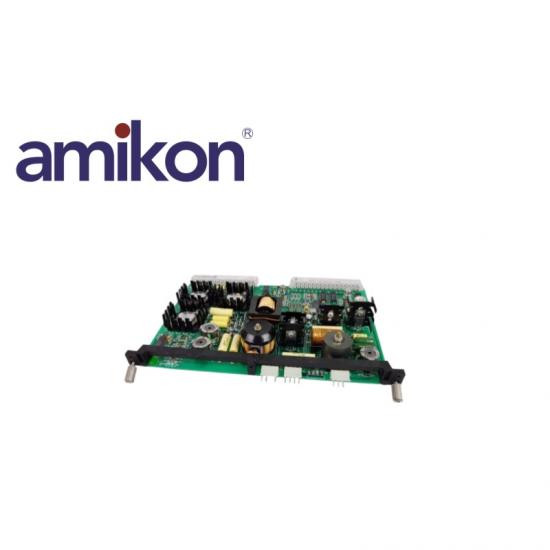

ABB SAMC11POW 57171847 Power Supply Module

• The ABB SAMC11POW is a high-performance power supply module designed for industrial applications requiring reliable and efficient power distribution. With an input voltage range of 85-265 V AC, this module is adaptable to various power sources, making it suitable for global deployment.

• The output voltage is set at 24 V DC, with a maximum output current of 2.5 A, ensuring that it meets the demands of diverse automation and control systems. The module features robust protection mechanisms, including overload and short circuit protection, which enhance its durability and operational safety.

• Designed for easy integration, the SAMC11POW can be mounted on DIN rails, allowing for flexible installation in control panels and cabinets. Its compact dimensions and lightweight design facilitate space-efficient setups in industrial environments.

• The operating temperature range of -20°C to +60°C ensures reliable performance in varying environmental conditions. Additionally, the module is equipped with LED indicators for real-time monitoring of operational status, enabling quick diagnostics and troubleshooting.

1.Power Supply Not Functioning

Issue: The module fails to power on or show any operational indicators.

Possible Causes:

• Incorrect input voltage or frequency.

Solutions:

• Verify that the input voltage is within the specified range (85-265 V AC) and frequency (50/60 Hz).

2. Output Voltage Issues

Issue: The output voltage is not at the expected level (e.g., lower than 24 V DC).

Possible Causes:

• Overloading the power supply beyond its rated capacity (2.5 A).

Solutions:

• Disconnect any load and measure the output voltage again to determine if it stabilizes at 24 V DC.

3. Overheating

Issue: The module operates at high temperatures, leading to potential shutdowns or failures.

Possible Causes:

• Operation in ambient temperatures above specified limits (-20°C to +60°C).

Solutions:

• Ensure adequate ventilation around the module, and consider using fans or heat sinks if necessary.

4. Incompatibility with Load

Issue: The connected load does not operate correctly when powered by the SAMC11POW.

Possible Causes:

• The load requires different voltage or current specifications.

Solutions:

• Verify that the load specifications match the output capabilities of the SAMC11POW (24 V DC, 2.5 A).

5. Environmental Sensitivity

Issue: The module fails in extreme environmental conditions (humidity, dust).

Possible Causes:

• Inadequate protection in harsh environments.

Solutions:

• Ensure the module is housed in an appropriate enclosure to protect against environmental factors.
