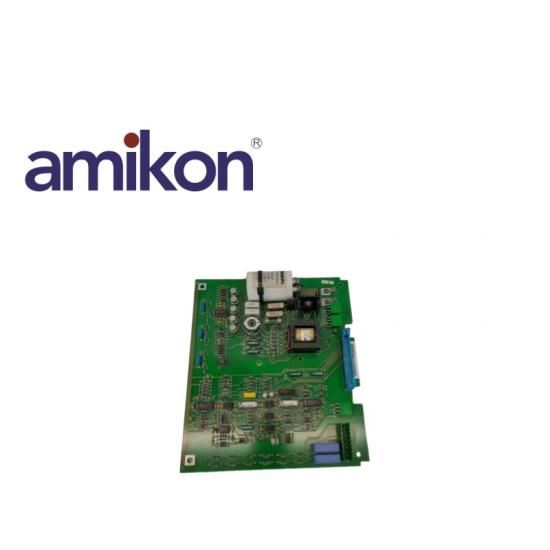

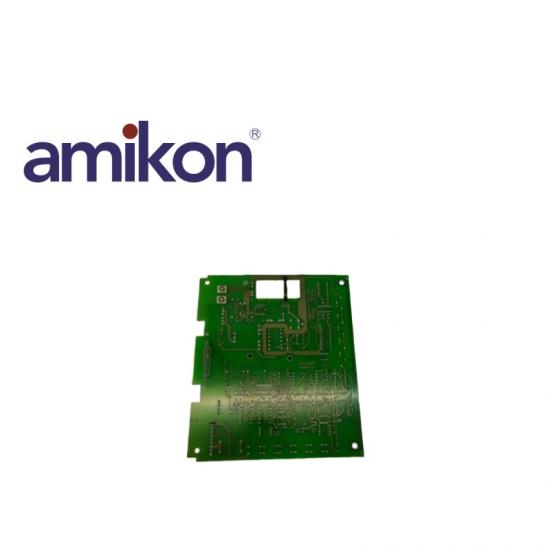

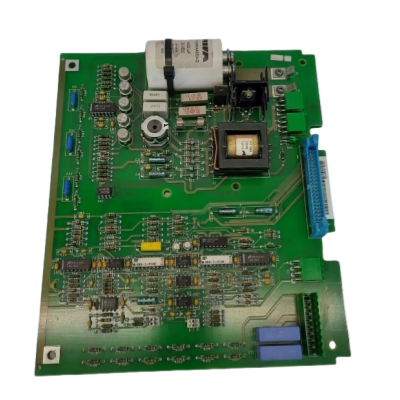

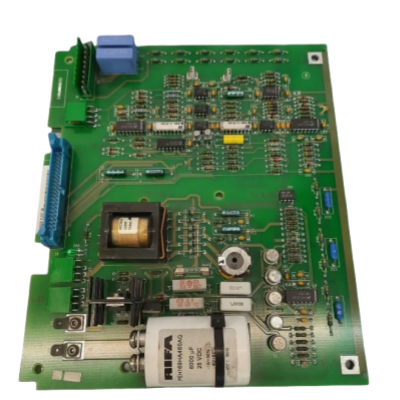

ABB SNAT617CHC 61037136 Control Module

ABB SNAT617CHC 61037136
ABB SNAT617CHC 61037136
ABB SNAT617CHC 61037136

ABB SNAT617CHC 61037136 Control Module

Calculate shipping
Quotation Request
⇒ Model Number SNAT617CHC
⇒ Country of Origin:  Sweden
⇒ Description: Control Module
⇒ Shipping Worldwide by DHL /Fedex /TNT / UPS


Mobile :86-18020776792        Email : sales@amikon.cn

What’s app:86-18020776792  Skpye:miyazheng520



Technical Specifications for SNAT617CHC 61037136

Product Type:  Control Module
Model:  SNAT617CHC
Part Number:  61037136
Functionality:  Communication and Control
Supported Protocols: Profibus DP
Modbus
Number of Channels:  16
Power Supply Voltage:  24 V DC
Current Consumption:
 Typical: 500 mA
  Maximum: 700 mA
Operating Temperature Range:
 Standard: -20°C to +60°C
Storage Temperature Range:
 -40°C to +85°C
Protection Class:  IP20
Weight:  Approximately 0.5 kg

Key Features

Integration:

Easily integrates with ABB’s automation and control systems.

Diagnostics:

Built-in diagnostic capabilities for monitoring and troubleshooting.

Modular Design:

Can be expanded with additional modules as needed.

Reliability:

Engineered for robust performance in demanding industrial conditions.



If you want to more details，please contact me without hesitate. Email：sales@amikon.cn

Technical Issues and Solutions

1.Communication Failure

Issue: The SNAT617CHC module is unable to communicate with the control system or other network devices.

Possible Causes:

  • Incorrect wiring or faulty connections.

Solutions:

  • Check all wiring connections to ensure they are secure and correctly configured.

2. Module Not Detected

Issue: The control system does not recognize the SNAT617CHC during initialization.

Possible Causes:

  • Improper installation in the control panel.

Solutions:

  • Ensure the module is properly seated in its slot and that all installation steps have been followed.

3. Power Supply Issues

Issue: The module is not powering on or experiences intermittent power loss.

Possible Causes:

  • Loose or damaged power connections.

Solutions:

  • Check the specifications of the power supply to ensure it meets the module’s requirements.

4. Overheating

Issue: The module operates at high temperatures, which can lead to reduced performance or failure.

Possible Causes:

  • Inadequate ventilation in the installation environment.

Solutions:

  • Ensure that there is sufficient airflow around the module and that it is not enclosed in a way that restricts cooling.

5. Inconsistent Performance

Issue: The module exhibits erratic behavior, such as delays in data processing or intermittent faults.

Possible Causes:

  • Software glitches or outdated firmware.

Solutions:

  • Ensure that the firmware is up-to-date and that any known bugs are addressed in the latest updates.
