Home Brands ABB

ABB SPNPM22 Network Processing Module

ABB SPNPM22
ABB SPNPM22
ABB SPNPM22

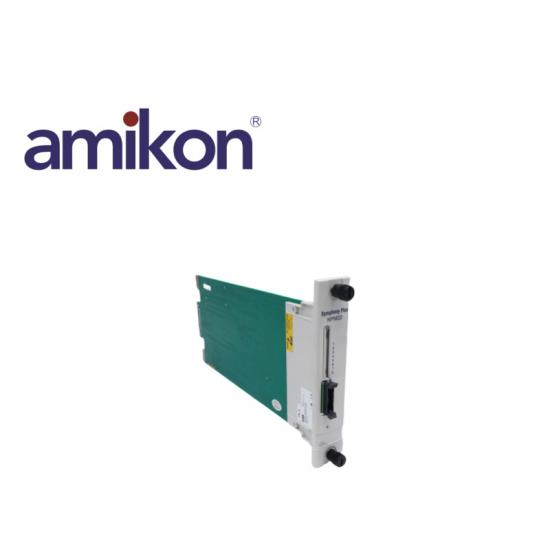

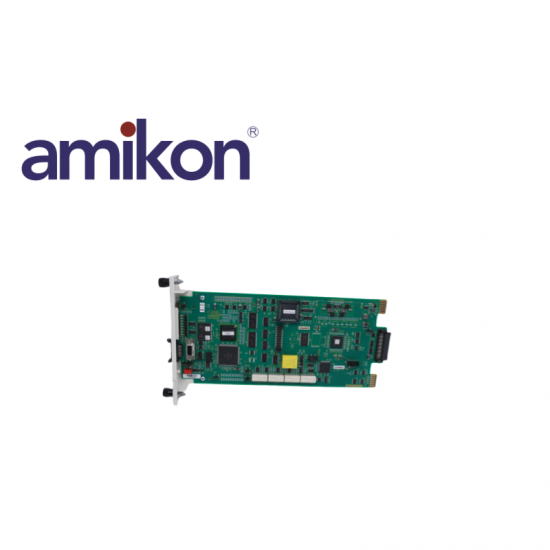

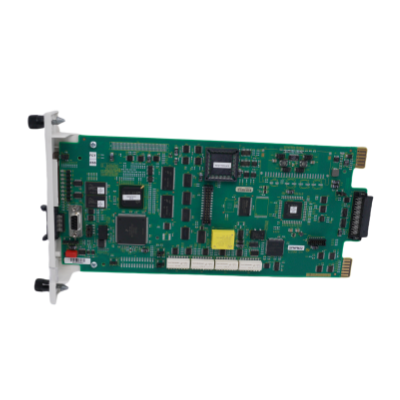

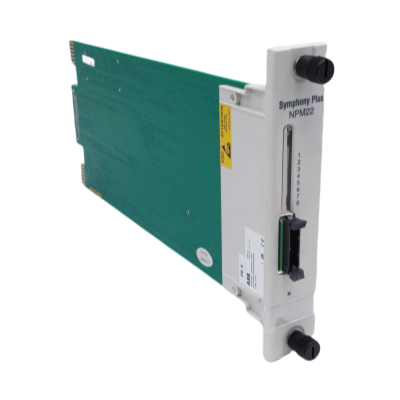

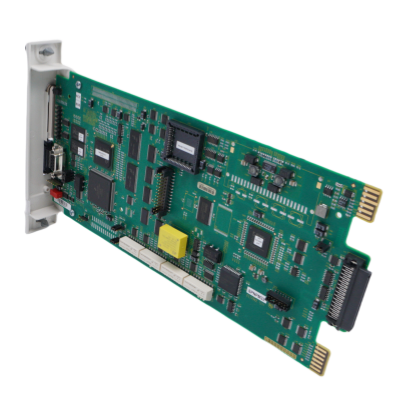

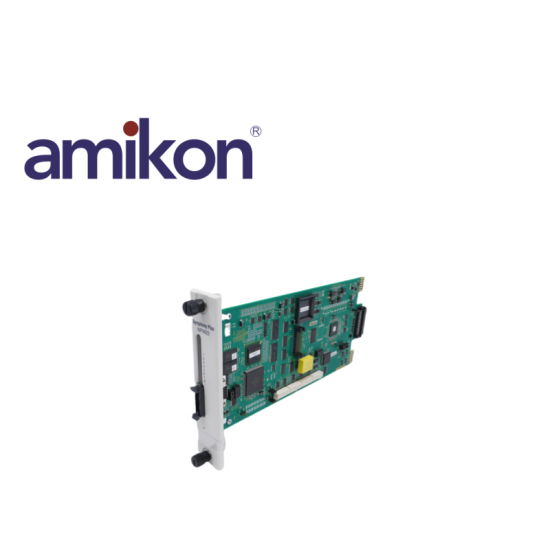

ABB SPNPM22 Network Processing Module

Calculate shipping
Quotation Request
⇒ Model Number SPNPM22
⇒ Country of Origin:  Sweden
⇒ Description: Network Processing Module
⇒ Shipping Worldwide by DHL /Fedex /TNT / UPS


Mobile :86-18020776792        Email : sales@amikon.cn

What’s app:86-18020776792  Skpye:miyazheng520



Product Details

General Information
Product ID: SPNPM22
ABB Type Designation: SPNPM22
Catalog Description: Network Processing Module
Long Description: Network Processing Module

Datasheet Of ABB SPNPM22

Additional Information Image
Product Type: Communication_Module
Ordering
HS Code: 851762-- Telephone sets, including telephones for cellular networks or for other wireless networks; other apparatus for the transmission or reception of voice, images or other data, including apparatus for communication in a wired or wireless network (such as a local or wide area network), other than transmission or reception apparatus of heading 84.43, 85.25, 85.27 or 85.28.- Other apparatus for transmission or reception of voice, images or other data, including apparatus for communication in a wired or wireless network (such as a local or wide area network) :-- Machines for the reception, conversion and transmission or regeneration of voice, images or other data, including switching and routing apparatus
Customs Tariff Number: 85176200
Dimensions
Product Net Depth / Length: 73.66 mm
Product Net Height:
 360.68 mm
Product Net Width:
 279.4 mm
Product Net Weight:
 0 kg
Environmental
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries: 1
Battery Chemical Composition:
 Lithium
Battery Type:
 Button Cell
Battery Weight:
 5 g
SCIP:
 709e5c46-71cb-4b7e-93d8-8ba3d12b06af Malta (MT)

If you want to more details，please contact me without hesitate. Email：sales@amikon.cn

Technical Issues and Solutions

1.Communication Failure

Issue: The SPNPM22 module fails to communicate with other devices or control systems.

Possible Causes:

  • Faulty communication cables or connections.

Solutions:

  • Check and secure all cable connections.

2. Module Not Detected by DCS

Issue: The DCS does not detect the SPNPM22 module during system startup or operation.

Possible Causes:

  • Improper installation of the module.

Solutions:

  • Ensure the SPNPM22 module is properly seated in its slot.

3. Power Supply Issues

Issue: The SPNPM22 module does not power on or frequently loses power.

Possible Causes:

  • Insufficient or unstable power supply.

Solutions:

  • Ensure the power supply meets the required voltage and current ratings.

4. Overheating

Issue: The module experiences overheating, leading to unexpected shutdowns or performance degradation.

Possible Causes:

  • Poor ventilation or cooling within the control panel.

Solutions:

  • Ensure proper airflow around the SPNPM22 module by keeping vents clear of obstructions.

5. Data Transmission Errors

Issue: Frequent data transmission errors occur, leading to data loss or communication delays.

Possible Causes:

  • Network interference or faulty communication ports.

Solutions:

  • Test communication ports and replace any that are defective.
