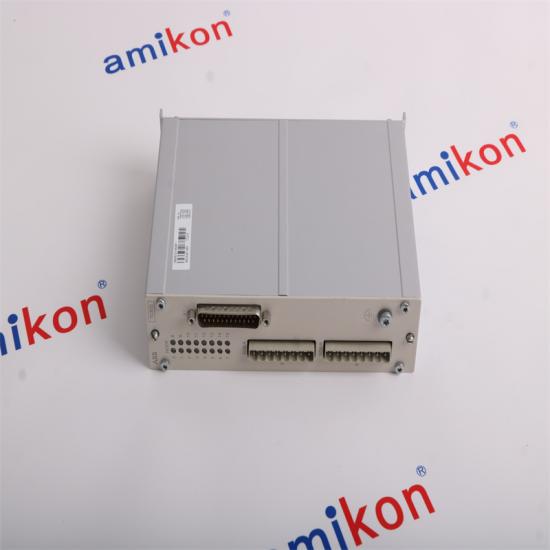

| General Information | |
| Product ID: | 3BSE001458R1 |
| ABB Type Designation: | TC570 |
| Catalog Description: | TC570 Master Fieldbus Connection Unit |
| Long Description: |
TC570 Master Fieldbus Connection Unit Note! This part is exempted from the scope of 2011/65/EU (RoHS) as provided in Article 2(4)(c), (e), (f) and (j) therein (ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY '- ABB Advant Master Process Control System) |
| Additional Information | |
| Medium Description: | MasterFieldbus Connection Unit |
| Product Type: |
Communication_Module |
| Technical Information: |
TC570 Master Fieldbus Connection Unit |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Customs Tariff Number: | 85389091 |
| WEEE Category: | 5. Small Equipment |
| Voltage range: | 24 to 550 VAC |
| Current range: | 0.5 to 63 A |
