| General Specifications | |
| Model: | XM03 |
| Type: | Contronic Module |
| Function: | Data acquisition and control |
| Application Areas: | Industrial automation, process control, and monitoring |
| Electrical Specifications | |
| Input Voltage: | 24 VDC (typical) |
| Power Consumption: | < 2 W |
| Input Signal Types: | Analog and digital inputs |
| Analog Input Range: | 0-10 V / 4-20 mA |
| Digital Input Types: |
Dry contact and voltage signals |
| Output Specifications |
|
| Output Types: | Analog output (0-10 V or 4-20 mA) |
| Digital output (optional based on configuration) | |
Product Details

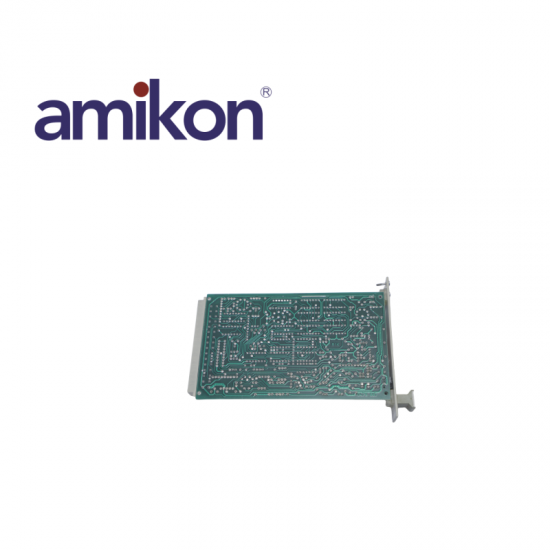

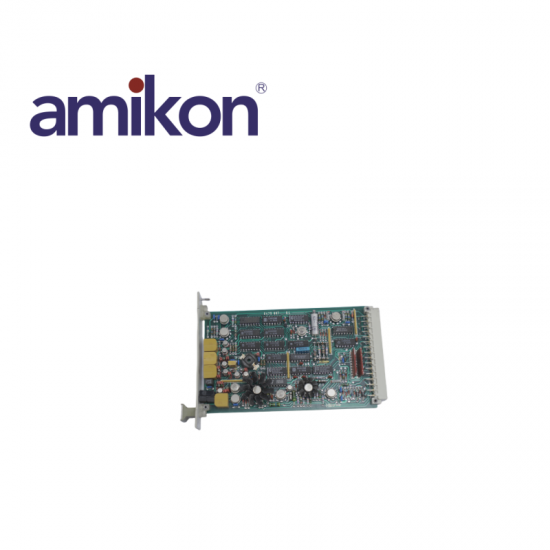

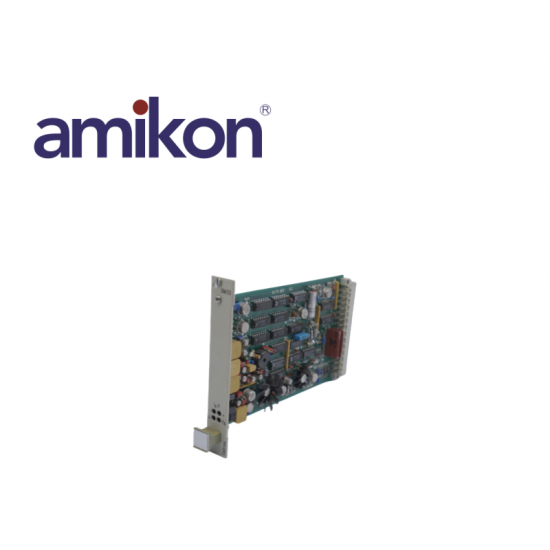

| The XM03 is Contronic Module. | |||
| XM03 XM 03 Data sheet | Coupling links to the Contronic P automation system are possible via the MZ 03 module of a WSR. | ||
| Coupling links to the Contronic E, Melody and Freelance 2000 automation systems are realized via the WSL01 module. | |||
| The workstation features power management. | |||
| Award-winning service | More than 25 in stock | Full 12-month warranty | We deliver worldwide |
If you want to more details，please contact me without hesitate. Email：sales@amikon.cn
