| Product module | 135137-01 |
| Brands | BENTLY NEVADA |
| Payment | Paypa/TT |
| Condition | 100% New |
| Weight | 0.18KG |
| Production year | 2024 |
| country of origin | USA |

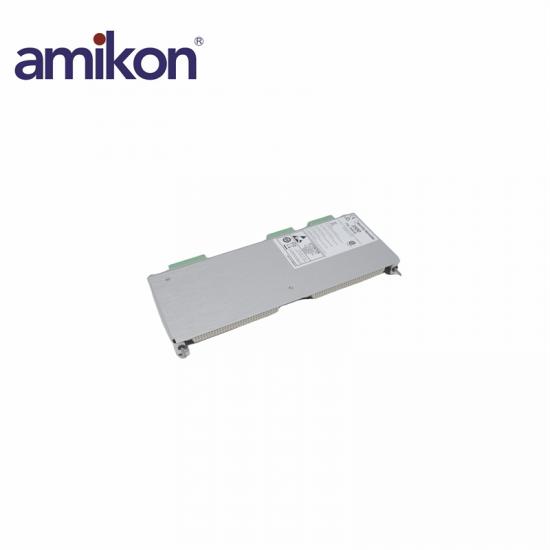

Bently Nevada 135137-01 Position I/O Module
Discription
| Part number：135137-01 |
|
Power consumption：7.7 watts, typical, using Position I/O |
| Input Impedance ：1 MΩ (DC LVDT inputs) 10 kΩ (Proximitor or RPT inputs) |
|
Rotary Potentiometer Valve Position： 41 mV/degree rotation
|
|
Proximitor or RPT ：-24 Vdc
|
|
DC LVDT： +15 Vdc |
| Rotary Potentiometer： -12.38 Vdc |
The 135137-01 Position I/O Module is designed for high-precision measurement and control in industrial automation
systems. It enables the monitoring and control of various devices that require position feedback, such as motors, actuators,
and valves. This module integrates seamlessly with other control systems, providing accurate and reliable position data
for automated processes. It is ideal for applications where precise position sensing and feedback are
critical to maintaining system performance and ensuring operational efficiency.
The 135137-01 Position I/O Module is equipped with multiple channels for monitoring different types of position sensors,
including potentiometers, encoders, and linear variable differential transformers (LVDTs). The module offers excellent signal
processing capabilities, ensuring accurate position tracking and control. With built-in isolation between input and output channels,
it ensures the protection of connected equipment and minimizes signal interference. This module is
widely used in industries such as manufacturing, robotics, and process control.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About 135137-01
|
What is the 135137-01 Position I/O Module? |
|
The 135137-01 Position I/O Module is an industrial device used to monitor and control position feedback from various sensors, such as encoders, potentiometers, and LVDTs. It integrates into automation systems to provide accurate and reliable position data for applications requiring precise position control. |
| What types of position sensors are compatible with the 135137-01 module? |
| The module is compatible with a variety of position sensors, including potentiometers, encoders, and linear variable differential transformers (LVDTs). It can be used to monitor both linear and rotary position sensors. |
| What industries use the 135137-01 Position I/O Module? |
|
The 135137-01 Position I/O Module is commonly used in industries such as manufacturing, robotics, process control, and automation. It is particularly useful in applications where precise position measurement and feedback are critical for operational efficiency. |
| How does the 135137-01 module provide position data? |
|
The module receives signals from position sensors and converts them into a standardized output for control systems. It processes the sensor data to provide accurate and reliable position feedback that can be used to adjust machinery or equipment. |
