| Product module | 330103-17-23-05-02-05 |
| Brands | BENTLY NEVADA |
| Payment | Paypa/TT |
| Condition | 100% New |
| Weight | 0.1KG |
| Production year | 2024 |
| country of origin | USA |

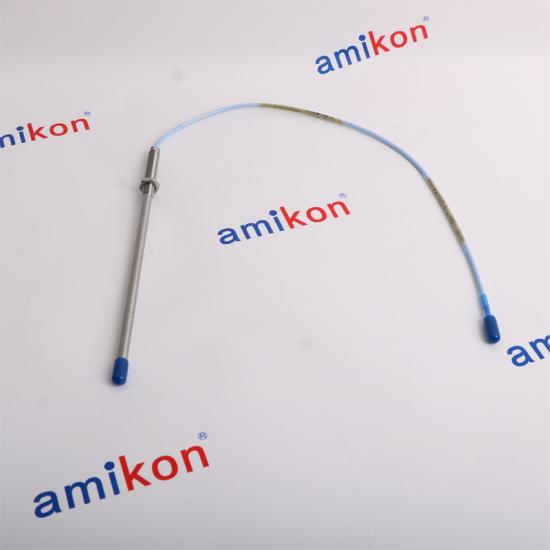

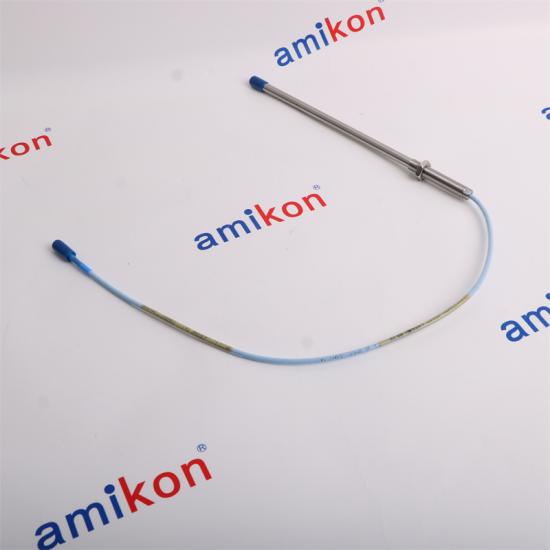

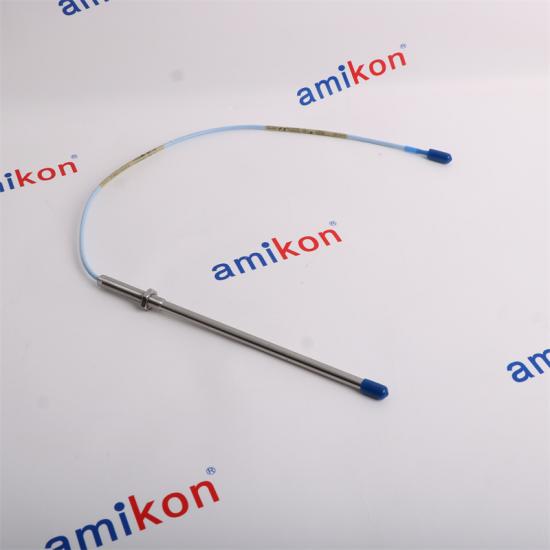

BENTLY NEVADA 330103-17-23-05-02-05 Proximity Probe
Discription
| Part number：330103-17-23-05-02-05 |
|
Amplitude Linearity：±2% to 152 mm/s (6 in/s) peak. |
| Temperature Sensitivity：-14% to +7.5% typical over the operating temperature range. |
|
Frequency Response：4.5 to 2,000 Hz (270 to 120,000 cpm) ±3.0 dB, 6.0 to 1,000 Hz (360 to 60,000 cpm) ±0.9 dB
|
|
Temperature Sensitivity：-14% to +7.5% typical over the operating temperature range.
|
|
Velocity Range ：1270 mm/s (50 in/s) peak. |
|
Dynamic Output Impedance ：Less than 2400 Ω |
| Diemension：1.8x1.6x70cm |
The 330103-17-23-05-02-05 Proximity Probe is a precision instrument designed for monitoring the displacement
and vibration of rotating machinery. It utilizes the eddy current principle to detect changes in distance between the
probe and the machine surface, providing accurate and real-time measurements. This probe features a robust construction
to endure harsh industrial environments, including high temperatures and mechanical stress. With its high sensitivity and reliability, it
is ideal for applications in power generation, oil and gas, and manufacturing industries, where continuous and precise
monitoring of machinery is essential for maintaining operational efficiency and preventing equipment failure.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About 330103-17-23-05-02-05
More Recommend Items
| BENTLY NEVADA | HI-POTTED 00270143 PX4995 | Control Transformer |
| BENTLY NEVADA | 3300/01 | System Monitor |
| BENTLY NEVADA | 330709-000-040-50-02-00 | proximity probes |
| BENTLY NEVADA | JNJ5300-08-03-000-060-10-00-00-03 | process variable monitor |
| BENTLY NEVADA | JNJ5300-08-045-00-00 | Proximity Probe |
| BENTLY NEVADA | JNJ5300-08-06-005-030-05-00-00-03 | VIBRATION MONITOR CARD |
| BENTLY NEVADA | 3300/46 3300/46-46-04-02-01 | Ramp Differential Expansion Monitor |
| BENTLY NEVADA | 990-04-50-02-00 | 990 Vibration Transmitter |
| BENTLY NEVADA | 330100-50-00 | Proximity Sensor |
| BENTLY NEVADA | 81725-02 | 14mm 7200 Series Proximity |
| BENTLY NEVADA | TM0180-08-00-15-10-02 | Proximity Probe |
| BENTLY NEVADA | TM0180-A08-B00-C02-D10 | Proximity Probe |
| BENTLY NEVADA | 330703-000-060-10-02-00 | 3300 XL 11mm Proximity Probes |
Email : sales@amikon.cn
The 3500/22M 138607-01 Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
3500/22M is a Transient Data Interface Module manufactured and designed by Bently Nevada as part of the 3500 Series used for monitoring seismic activity. The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
The 3500/33 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module. Each output of the 3500/33 16-Channel Relay Module can be independently programmed to perform voting logic.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The 3500/60 133811-01 modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/72M Recip Rod Position Monitor meets API 618 requirements for reciprocating compressors. It measures: l Rod position l Rod drop l Hyper-compressor The four-channel 3500/72M Recip Rod Position Monitor accepts input from proximity transducers, conditions the signal to provide dynamic and static position measurements, and compares the conditioned signals with userprogrammable alarms. Each channel, depending on how you configure it, typically conditions its input signal to generate various parameters called measured values.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
