| Product module | 330130-040-01-05 |
| Brands | BENTLY NEVADA |
| Payment | Paypa/TT |
| Condition | 100% New |
| Weight | 0.38KG |
| Production year | 2024 |
| country of origin | USA |

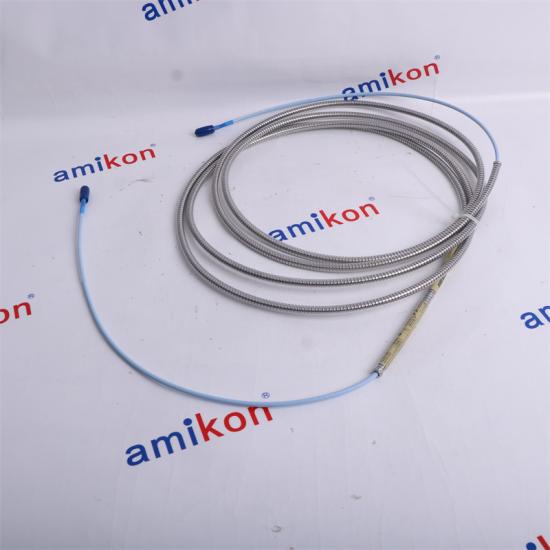

BENTLY NEVADA 330130-040-01-05 Standard Extension Cable
Discription
| Part number：330130-040-01-05 |
|
System performance is restricted to the non-XL 3300 5 and 8 mm Transducer System standards when XL and non-XL 3300 series 5 and 8 mm system components are combined. |
|
The 3300-series 5 mm probe (see Specifications and Ordering Information p/n 141605-01) has a smaller physical footprint than an 8 mm probe, but it cannot be used with reduced side view clearances or tip-to-tip spacing. |
|
When the use of an 8 mm probe is prohibited by physical—not electrical—constraints, this method is used. Use the 3300 NSvTM Proximity Transducer System when narrow side view probes are needed. |
|
A thicker encapsulation of the probe coil in the molded PPS plastic probe tip is offered by 8 mm probes. As a result, the probe becomes more robust. |
|
The probe body's increased diameter also offers a stronger, more durable casing. For the best robustness against physical abuse, Bently Nevada advises using 8 mm probes wherever it is practical. |
| Dimensions：33x28x2cm |
The Bently Nevada 3300 XL 8mm Proximity Transducer System consists of one 3300 XL 8mm probe, one
3300 XL extension cable, and one 3300 XL Proximitor Sensor. The system provides an output voltage that is
directly proportional to the distance between the probe tip and the observed conductive surface and can measure
both static (position) and dynamic (vibration) values. The system's primary applications are vibration and position
measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The standard
3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute's (API) 670 Standard (4th Edition)
for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer
systems provide this level of performance and support complete interchangeability of probes, extension cables, and
Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward-compatible and interchangeable with other non-XL
3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe,
for applications in which an 8 mm probe is too large for the available mounting space.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About 330130-040-01-05
| What is the 330130-040-01-05 Standard Extension Cable? |
| The 330130-040-01-05 Standard Extension Cable is a high-quality cable designed to extend the reach of electrical connections in various industrial and electronic applications. It ensures reliable signal transmission and power delivery over longer distances. |
| What are the key features of the 330130-040-01-05 Standard Extension Cable? |
| Key features include high-quality construction for durability, reliable signal and power transmission, and compatibility with various industrial and electronic systems. |
| How should the 330130-040-01-05 Standard Extension Cable be installed? |
| The cable should be installed following the manufacturer’s guidelines, ensuring secure connections and proper routing to avoid mechanical stress and interference. |
