| Product module | 330980-50-05 |
| Brands | BENTLY NEVADA |
| Payment | Paypa/TT |
| Condition | 100% New |
| Weight | 0.24KG |
| Production year | 2024 |
| country of origin | USA |
| Proximitor Sensor Input | Accepts one non-contacting 3300-series 5 mm, 3300 XL 8 mm Proximity Probe and Extension Cable. |
| Power | Requires -17.5 Vdc to -26 Vdc |
| Supply Sensitivity | Less than 2 mV change in output voltage per volt change in input voltage. |
| Output Resistance | 50 Ω |
| VGA port (I/O) | Analog red, green, blue and sync signals to the display |
| Front Port |
24 Vdc Power out, VGA signal out, Touch commands in. |
Compliance and Certifications
FCC:
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired operation.
EMC:
European Community Directive:
EMC Directive 2014/30/EU
Standards EN 61000-6-2;
Immunity for Industrial Environments EN 61000-6-4;
Emissions for Industrial Environments
| Extension Cable Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Field Wiring | 0.2 to 1.5 mm2 (16 to 24 AWG). |
| Linear Range | 2 mm (80 mils). |
| Recommended Gap Setting for Radial Vibration | -9 Vdc [approximately 1.27 mm (50 mils)] |
| Frequency Response | (0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring. |
If you want to know more, please contact us!
Looking forward to your contact.
Email:sales@amikon.cn

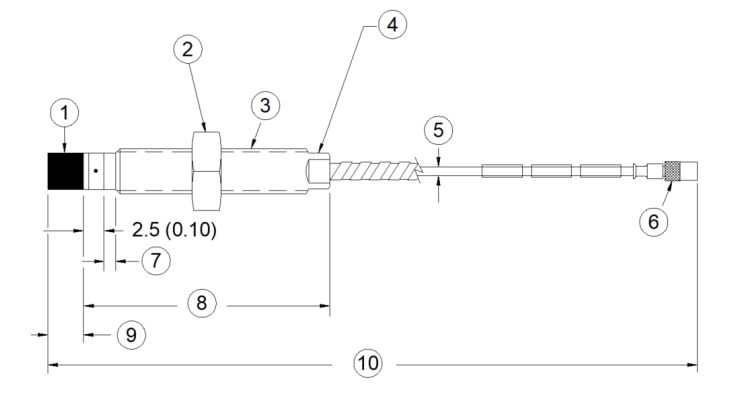

Engineering drawing of BENTLY NEVADA 330980-50-05

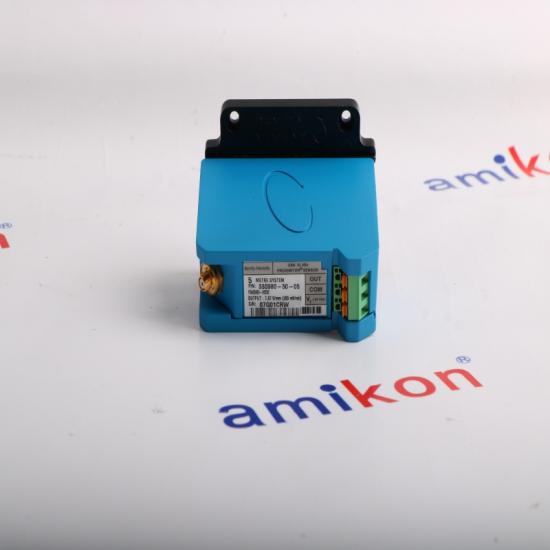

The Bently Nevada 330980-50-05 Proximity Sensor is a high-performance industrial
sensor designed for monitoring machinery and equipment. It uses eddy current technology to
accurately measure the distance between the sensor and a target, typically a rotating shaft.
Its rugged, industrial-grade construction allows it to operate reliably in harsh conditions,
including high temperatures, high pressures, and strong electromagnetic interference.
The sensor offers high sensitivity, capable of detecting minute changes in distance
between the sensor and the target, which is crucial for precise vibration monitoring and machinery
health assessment. It is commonly used in conjunction with Bently Nevada monitoring systems,
such as the 3500 Series, to provide real-time data on machinery condition.
The sensor outputs an analog signal that can be used directly for measurement or processed for diagnostic purposes.
Recommended model
| Bently Nevada | 990-05-50-01-05 | 990 Vibration Transmitter |
| Bently Nevada | 990-04-XX-01-01 MOD:165335-01 | 990 Vibration Transmitter |
| Bently Nevada | 990-04-70-02-00 | Vibration Transmitter |
| Bently Nevada | 990-04-70-01-05 | 990 Vibration Transmitter |
| Bently Nevada | 990-04-70-01-00 | 990 Vibration Transmitter |
| Bently Nevada | 990-04-50-01-00 | 990 Vibration Transmitter |
| Bently Nevada | 9200-06-05-10-00 | Two-Wire Transducer |
| Bently Nevada | 9200-06-05-05-00 | Two-Wire Transducer |
| Bently Nevada | 9200-06-01-10-00 | Two-Wire Transducer |
| Bently Nevada | 9200-03-05-10-00 | Two-Wire Velocity Seismoprobe Transducer |
Please contact us and look forward to our cooperation!
The 3500/22M 138607-01 Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
3500/22M is a Transient Data Interface Module manufactured and designed by Bently Nevada as part of the 3500 Series used for monitoring seismic activity. The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
The 3500/33 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module. Each output of the 3500/33 16-Channel Relay Module can be independently programmed to perform voting logic.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The 3500/60 133811-01 modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/72M Recip Rod Position Monitor meets API 618 requirements for reciprocating compressors. It measures: l Rod position l Rod drop l Hyper-compressor The four-channel 3500/72M Recip Rod Position Monitor accepts input from proximity transducers, conditions the signal to provide dynamic and static position measurements, and compares the conditioned signals with userprogrammable alarms. Each channel, depending on how you configure it, typically conditions its input signal to generate various parameters called measured values.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
