| Product module | 990-16-XX-01-CN 106M1675-01 |
| Brands | BENTLY NEVADA |
| Payment | Paypa/TT |
| Condition | 100% New |
| Weight | 0.52KG |
| Production year | 2024 |
| country of origin | USA |

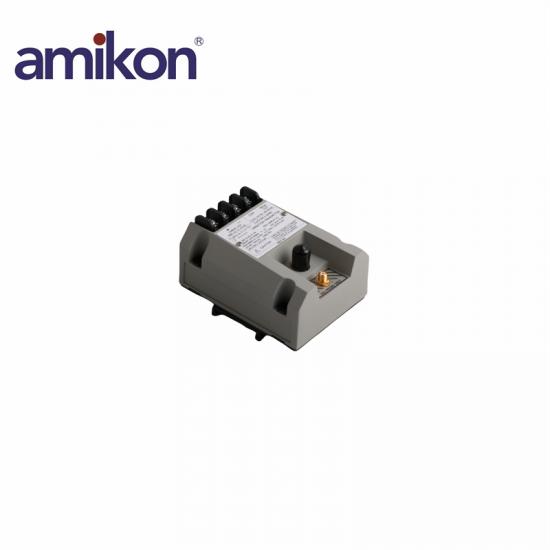

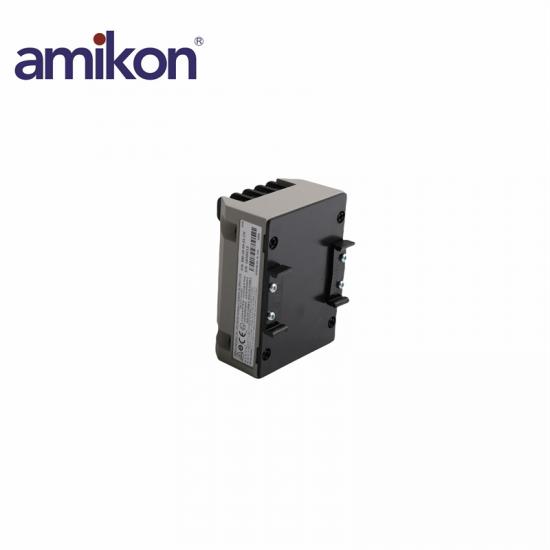

BENTLY NEVADA 990-16-XX-01-CN 106M1675-01 Vibration Transmitter
Discription
| Part number：990-16-XX-01-CN 106M1675-01 |
|
Input ：Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable. |
|
Power：Requires +12 to +35 Vdc input at the transmitter terminal. |
|
4 to 20 mA signal output： 4 to 20 mAdc over specified fullscale range in 2-wire configuration.
|
|
Maximum loop resistance ：1,000 Ω including cable at 35 Vdc
|
|
Standard DSL range： Less than ±0.10 mm (±4 mils). |
|
Current limiting： 23 mA typical |
| Frequency response ：5 Hz to 6,000 Hz +0, 3 dB. |
The 990-16-XX-01-CN 106M1675-01 Vibration Transmitter is designed for continuous monitoring of vibration levels
in rotating machinery, providing real-time data for predictive maintenance and condition monitoring. It converts vibration
signals into analog or digital output, allowing for easy integration into industrial control systems. This transmitter helps detect
early signs of mechanical issues such as imbalances, misalignments, and bearing failures, ensuring timely interventions
and reducing the risk of costly downtime. Its rugged design makes it suitable for use in harsh
industrial environments, including high-temperature, high-vibration, and hazardous areas.
Email : sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About 990-16-XX-01-CN 106M1675-01
|
What is the function of the 990-16-XX-01-CN 106M1675-01 Vibration Transmitter? |
|
The 990-16-XX-01-CN 106M1675-01 Vibration Transmitter continuously monitors vibration levels in rotating machinery and converts these signals into analog or digital outputs for use in predictive maintenance and condition monitoring systems. |
| What types of machinery can the 990-16-XX-01-CN 106M1675-01 Vibration Transmitter be used with? |
| This vibration transmitter is suitable for use with a wide range of rotating machinery, including motors, pumps, fans, compressors, and turbines, where vibration monitoring is critical for detecting mechanical faults. |
| How does the 990-16-XX-01-CN 106M1675-01 Vibration Transmitter help with predictive maintenance? |
|
By continuously monitoring vibration levels and providing real-time data, the transmitter helps detect early signs of mechanical problems such as imbalance, misalignment, or bearing failure. This enables maintenance teams to take corrective actions before more serious damage occurs, minimizing downtime and repair costs. |
| Is the 990-16-XX-01-CN 106M1675-01 Vibration Transmitter suitable for harsh industrial environments? |
|
Yes, the transmitter is designed for use in harsh environments, including high-temperature, high-vibration, and hazardous areas, ensuring reliable operation even in challenging conditions. |
More Recommend Items
| Bently Nevada | 330780-90-00 | 3300 XL 11 mm Proximitor Sensor |
| Bently Nevada | 330780-51-00 | 3300 XL 11 mm Proximitor Sensor |
| Bently Nevada | 330780-50-CN | 3300 XL 11 mm Proximity Sensor |
| Bently Nevada | 330780-50-00 | 3300 XL 11 mm Proximity Sensor |
| Bently Nevada | 330730-080-12-00 | 3300 XL 11 mm Extension Cable |
| Bently Nevada | 330730-080-02-00 | 3300 XL Standard Extension Cable |
| Bently Nevada | 330730-080-01-00 | 3300 XL 11 mm Extension Cable |
| Bently Nevada | 330730-040-01-00 | 3300 XL 11 mm Extension Cable |
| Bently Nevada | 330730-040-00-05 | 3300 XL 11 mm Extension Cable |
| Bently Nevada | 330730-040-00-00 | 3300 XL 11 mm Extension Cable |
| Bently Nevada | 330709-050-120-10-02-00 | 3300 XL 8mm Proximity Probes |
| Bently Nevada | 330709-000-120-10-02-00 | 3300 XL 11 mm Proximity Probes |
| Bently Nevada | 330709-000-070-10-02-00 | 3300 XL 11 mm Proximity Probes |
Email : sales@amikon.cn
The 3500/22M 138607-01 Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
3500/22M is a Transient Data Interface Module manufactured and designed by Bently Nevada as part of the 3500 Series used for monitoring seismic activity. The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
The 3500/33 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module. Each output of the 3500/33 16-Channel Relay Module can be independently programmed to perform voting logic.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The 3500/60 133811-01 modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/72M Recip Rod Position Monitor meets API 618 requirements for reciprocating compressors. It measures: l Rod position l Rod drop l Hyper-compressor The four-channel 3500/72M Recip Rod Position Monitor accepts input from proximity transducers, conditions the signal to provide dynamic and static position measurements, and compares the conditioned signals with userprogrammable alarms. Each channel, depending on how you configure it, typically conditions its input signal to generate various parameters called measured values.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
