| Product module | PR6423/10R-030 CON021 |
| Brands | EMERSON |
| Payment | Paypal/TT |
| Condition | 100%New |
| Weight | 0.26KG |
| Production year | 2024 |
| Contry origin | USA |
Decription
| Part number ：PR6423/10R-030 CON021 |
| Linear Measurement Range ：2 mm (80 mils) |
| Initial Air Gap ：0.5 mm (20 mils) |
| Incremental Scale Factor (ISF) ISO: 8 V/mm (203.2 mV/mil) ± 5% @ temperature range 0 to 45°C (+32 to +113°F) |
| Deviation from best fit straight line (DSL)： ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F) |
|
Minimum Shaft Diameter ：25 mm (0.79”) |
|
Target Material (Ferromagnetic Steel) ：42CrMo4 (AISI/SAE 4140) Standard Other (On Request) |
| Dimensions：20x20x4cm |

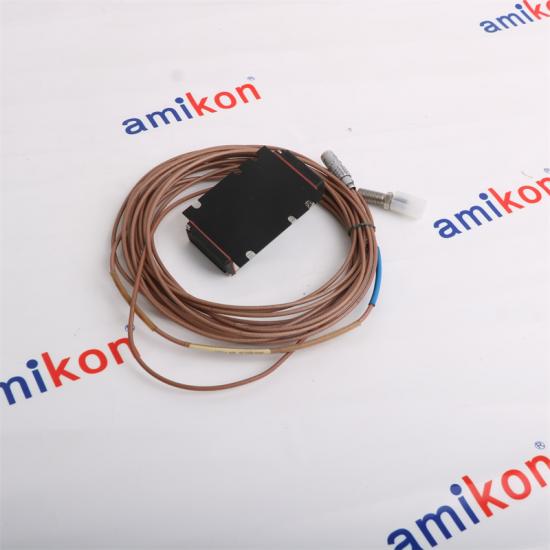

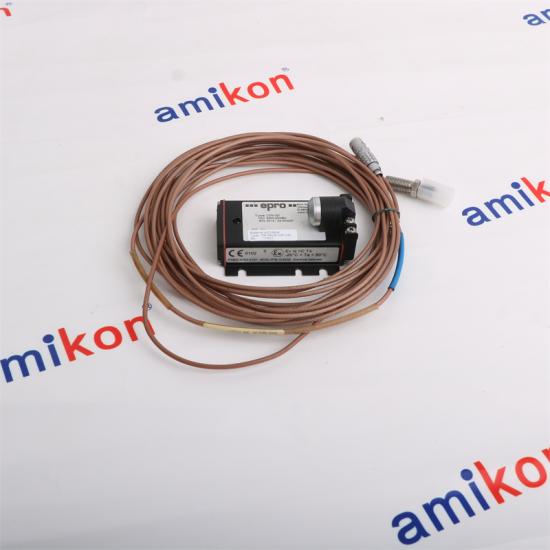

PR6423/10R-030 CON021 Eddy Current Sensor is a precision sensor used for non-contact measurement of thickness,
conductivity, and other parameters of metal materials. Based on the eddy current principle, it obtains relevant information
by measuring the response of the target object to a high-frequency alternating magnetic field. This sensor features high precision,
high resolution, fast response speed, and strong anti-interference capability, and is widely used in
metal processing, automotive manufacturing, aerospace, and other fields.
Working Principle
When a high-frequency alternating current passes through the sensor coil, eddy currents are generated on the surface of the
measured metal. The magnitude and phase of the eddy current are closely related to the conductivity, permeability, and
thickness of the measured metal. The sensor obtains these parameters by measuring the
change in the magnetic field generated by the eddy current.
Email： sales@amikon.cn
Freequently Asked Questions About PR6423/10R-030 CON021
| What is PR6423/10R-030 CON021 Eddy Current Sensor? |
|
PR6423/10R-030 CON021 is an industrial-grade eddy current sensor primarily used for non-contact measurement of thickness, conductivity, and other parameters of metal materials. It operates on the eddy current principle, obtaining relevant information by measuring the target object's response to a high-frequency alternating magnetic field. |
| What is the main function of this sensor? |
|
Its primary function is to accurately measure the thickness, conductivity, position, and other parameters of metal materials, and provide corresponding measurement signals. |
| Where is this sensor applicable? |
|
It is suitable for various applications requiring non-contact measurement of metal material parameters, such as:
|
| How to maintain this sensor? |
|
Regular maintenance, including cleaning, inspection, and protection, is crucial for ensuring the long-term stable operation of the sensor. |
