Product module | PR6423/10R-040 CON021 |
Brands | EMERSON |
Payment | Paypal/TT |
Condition | 100%New |
Weight | 0.3KG |
Production year | 2024 |
Contry origin | USA |
Decription
Part number :PR6423/10R-040 CON021 |
Measuring error after calibration:< ±1% linearity error |
Temperature error:Zero point: 200 mV / 100˚ K Sensitivity: < 2% / 100˚ K |
Long term drift:0.3% max. |
Influence of supply voltage:< 20 mV/V |
Operating temperature range:-35 to +180˚ C (-31 to 365˚ F) (short term, up to 5 hours, up to +200˚ C / 392˚ F) |
Temperature range for storage:-40 to +70˚ C (-40 to 158˚ F) |
Vibration and shock nominal values at 25˚ C (77˚ F):5 g at 60 Hz |
Dimensions:18x18x4cm |

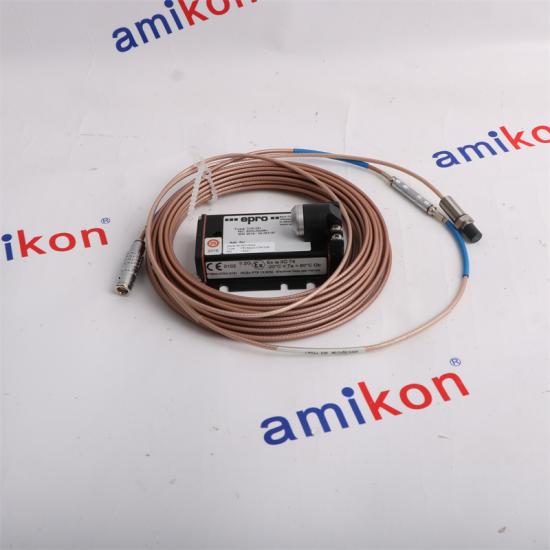

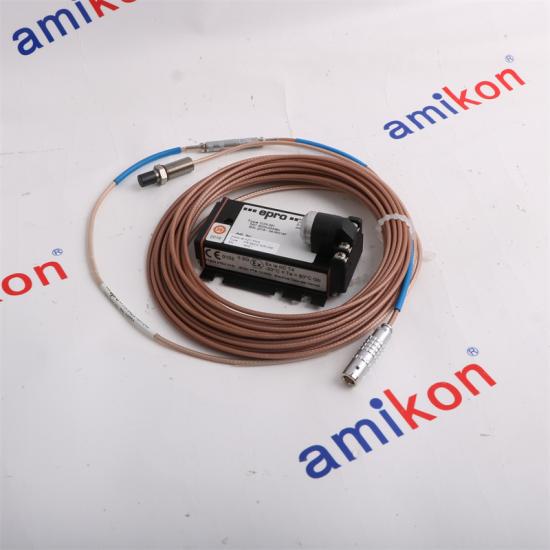

PR6423/10R-040 CON021 Eddy Current Sensor is a high-precision, non-contact industrial sensor primarily used for measuring
the thickness, conductivity of metal materials, and the distance between the probe and the metal surface. This sensor employs the
eddy current principle, obtaining relevant information by measuring the target metal's response to a high-frequency alternating magnetic
field. It is widely used in automotive manufacturing, aerospace, metal processing, and other fields.
Working Principle
When a high-frequency alternating current passes through the sensor coil, eddy currents are generated on the surface
of the measured metal. The magnitude and phase of the eddy current are closely related to the conductivity, permeability,
and distance of the measured metal from the sensor surface. The sensor obtains these parameters
by measuring the change in the magnetic field generated by the eddy current.
Email: sales@amikon.cn
Freequently Asked Questions About PR6423/10R-040 CON021
What is PR6423/10R-040 CON021 Eddy Current Sensor? |
PR6423/10R-040 CON021 is an industrial-grade eddy current sensor primarily used for non-contact measurement of thickness, conductivity of metal materials, and the distance between the probe and the metal surface. It operates on the eddy current principle, obtaining relevant information by measuring the target metal's response to a high-frequency alternating magnetic field. |
What is the main function of this sensor? |
Its primary function is to accurately measure the thickness, conductivity, and distance to the metal surface of metal materials. |
What are the common failures of this sensor? |
|
How to maintain this sensor? |
|
