EMERSON PR6426/000-131 CON041/916-200 Eddy Current Signal Converter

EMERSON PR6426/000-131 CON041/916-200 Eddy Current Signal Converter

Product module PR6426/000-131 CON041/916-200
Brands EMERSON
Payment Paypal/TT
Condition 100%New
Weight 0.44KG
Production year 2024
Contry origin USA

EMERSON  PR6426/000-131 CON041/916-200 Eddy Current Signal Converter


Decription

Part number :PR6426/000-131 CON041/916-200
Sensitivity :2 V/mm (50.8 mV/mil) ≤ ±1.5% max
Air Gap (Center) :Approx. 5.5 mm (0.22”) Nominal
Long Term Drift: < 0.3%
Target/Surface Material :Ferromagnetic Steel (42 Cr Mo 4 Standard)

Maximum Surface Speed :2,500 m/s (98,425 ips)

Shaft Diameter: ≥200 mm (7.87”)

Operating Temperature Range: -35 to 175°C (-31 to 347°F)

Dimensions:15x14x4.5cm

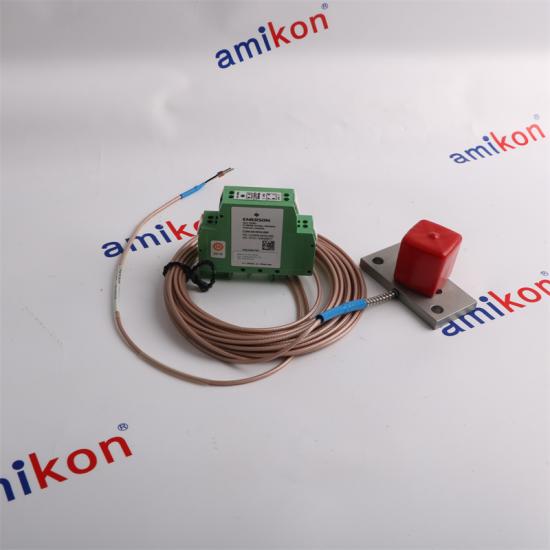

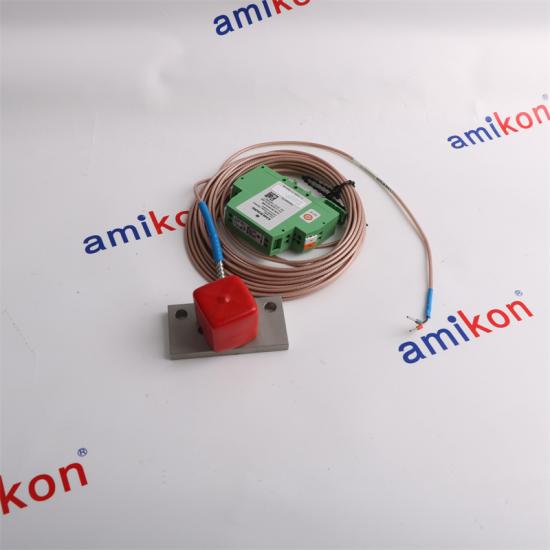

R6426/000-131 CON041/916-200 Eddy Current Signal Converter is a high-performance industrial-grade signal converter

manufactured by Emerson. Combining the CON041 signal converter and the PR6426/000-131 eddy current sensor, it provides

an advanced solution for non-contact displacement and vibration measurement in industrial machinery. The system

leverages eddy current technology to accurately detect radial and axial displacements of rotating equipment,

widely used in vibration monitoring and fault diagnosis of industrial machinery.

Email: sales@amikon.cn

Freequently Asked Questions About  PR6426/000-131 CON041/916-200

What is the PR6426/000-131 CON041/916-200 Eddy Current Signal Converter?

The PR6426/000-131 CON041/916-200 is a high-performance eddy current signal converter manufactured by Emerson. It combines the CON041 signal converter and the PR6426/000-131 eddy current sensor to measure vibration, displacement, and other parameters of rotating equipment.

What is the basic principle of the eddy current signal converter?

The eddy current signal converter utilizes electromagnetic induction to measure the eddy currents generated in a conductor, thereby obtaining information about the measured object. When the sensor coil approaches a conductor, the alternating magnetic field in the coil generates eddy currents in the conductor. The magnitude and phase of the eddy current are related to the conductivity, thickness, distance, and other factors of the conductor. By measuring the changes in the eddy current, the vibration, displacement, and other information of the measured object can be obtained.

Does the sensor need regular maintenance?
Yes, the sensor needs regular maintenance to ensure its normal operation. Maintenance includes cleaning the sensor surface, checking the connection wires, and calibrating the sensor.
How to install and debug the sensor?
  • Select the appropriate sensor model and installation location.
  • Connect the sensor to the signal converter.
  • Configure the parameters of the signal converter.
  • Perform calibration and testing.
