| Product module | 269PLUS-D/O-100P-125VDC |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight | 5.04KG |
| Production year | 2024 |
| country of origin | USA |
GE 269PLUS-D/O-100P-125VDC protective relay
Features
| 269PLUS-D/O-100P-125VDC protective relay |
|
Part Number: 269PLUS-D/O-100P-125VDC |
|
269PLUS：269 Plus motor management relay |
|
D/O：Drawout version |
|
100P： 100 Ohm platinum RTD |
|
Holdup: 100 ms (@ 120 VAC/125 VDC) |
|
Maximum power consumption: 20 VA |
|
Operating temperature range: -25° C to +60° C |
|
Detection Level: ±1% of primary CT amps |
|
Trip Time Accuracy: ±1 sec up to 13 sec 、±8% of trip time over 13 sec |
|

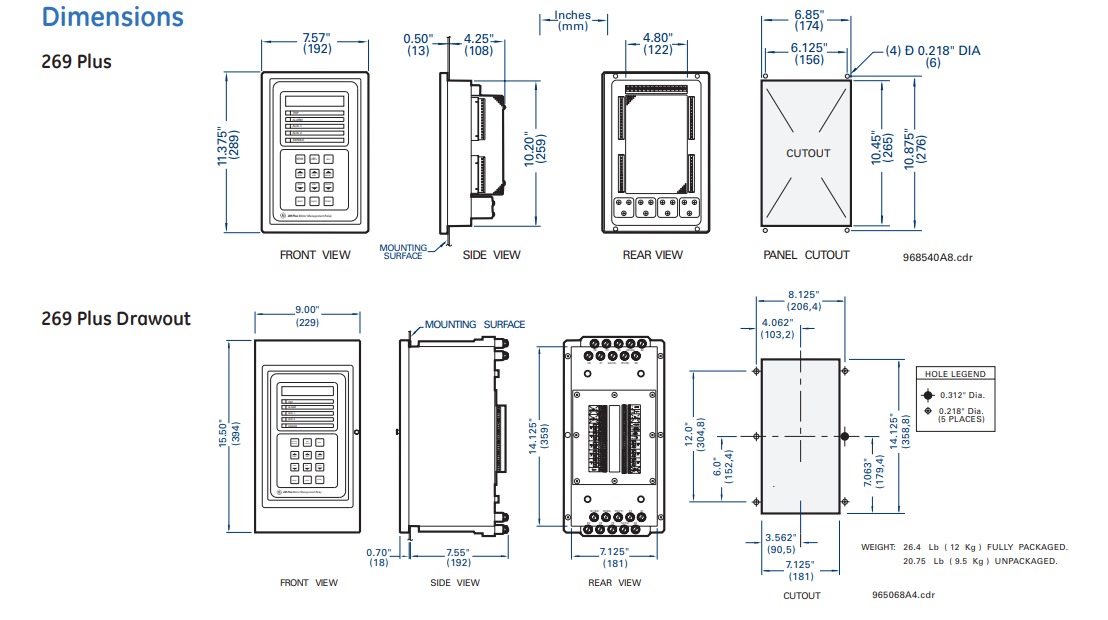

Dimensions:35x19.2x18cm |
Funcrional Description
269PLUS-D/O-225-100P-125VDC is a motor protection relay system from the 269 Plus Motor Protection system series by
GE Multilin. This system is intended to be used in conjunction with a variety of 3-phase AC motors. The system provides
protection from electrical and thermal harm to the motor via resistor thermal detectors (RTDs) and current transformers (CTs).
The power input to the control is either 80- 300 VDC or 65-265 VAC and 50-60 Hz. The maximum power consumptio
n is 20 VA and 100 ms at 120VAC/125 VDC. The RTD sensors for this device are 100 ohm Platinum sensors.
They have a display accuracy of ±2°C, and they have a setpoint range 0 - 200°C. The sensors
have a dead band at 3°C. The sensors also have 25% of the resistance at 0°C.
Once the system is properly set up, it is ready to be programmed by the user. Programming is completed
using the 12-key pad on the front panel. The 48-character alphanumeric LCD display is key to
ensuring that the system is properly programmed.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About 269PLUS-D/O-100P-125VDC
| What is the 269PLUS-D/O-100P-125VDC Protective Relay? |
| The 269PLUS-D/O-100P-125VDC Protective Relay is a protective device designed to safeguard electrical systems by monitoring various parameters such as voltage, current, and frequency. It provides relay outputs for trip actions to protect equipment from faults or abnormal conditions. |
| What are the key features of the 269PLUS-D/O-100P-125VDC Protective Relay? |
| Key features include high precision monitoring, configurable protection settings, multiple relay outputs, compatibility with 125VDC power supply, and robust design for reliable performance in industrial environments. |
| How do I install the 269PLUS-D/O-100P-125VDC Protective Relay? |
| Installation involves mounting the relay in a suitable enclosure or panel, connecting it to the electrical system according to the wiring diagram, and configuring the relay settings using the appropriate software or manual controls. |
| How do I troubleshoot issues with the 269PLUS-D/O-100P-125VDC relay? |
| To troubleshoot issues, check the wiring connections, ensure the relay is properly configured, and verify that the power supply is within the specified range. |
