| Product module | 469-P5-HI-A1-E-H |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight | 7.4KG |
| Production year | 2024 |
| country of origin | USA |

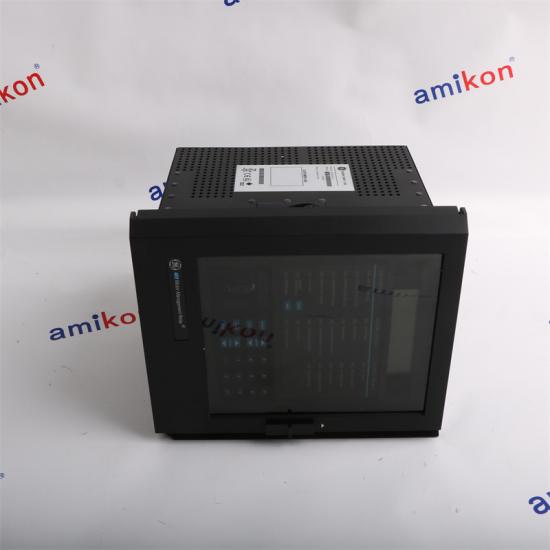

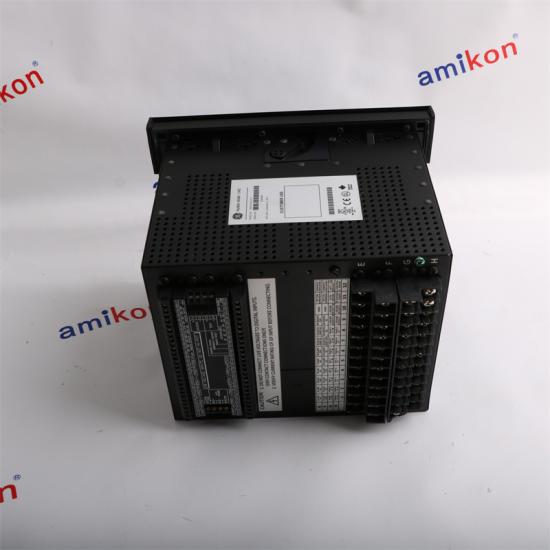

GE 469-P5-HI-A1-E-H Motor Management Relay
Key Features
| 469-P5-HI-A1-E-H Motor Management Relay |
|
Part Number:469-P5-HI-A1-E-H |
|
469：469 Motor Management Relay |
|
P5:5 A phase CT secondaries |
|
HI:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz |
|
A1:Four (4) 0 to 1 mA analog outputs |
|
E:Enhanced display, larger LCD |
|
H:Harsh (chemical) environment conformal coating |
|
Dimensions:21.5x23x25.2cm |
Funcrional Description
General Electric Multilin’s UR-9EH is a CPU module intended for replacing a defunct module or upgrading an
old module for a unit in the Universal Relays series. The module provides computing power to the relay in the
form of logic algorithms, logic gates, latches, and timers. CPU modules do not require a surge ground connection.
Users should note that new CPU modules must be used alongside new CT/VT modules; similarly, old CPU
modules must be used alongside old CT/VT modules. Failure to do so will result in HARDWARE MISMATCH
or DSP ERROR error displays, so users should ensure they are buying an
appropriate module for the age of their module’s counterpart.
GE Multilin’s UR-9EH has a number of configurable settings that impact CPU function and can be modified using
the keypad and faceplate or EnerVista UR. For example, the SERVER SCANNING feature can be disabled to
increase CPU resources, which is especially useful for users not requiring IEC 61850 client/server functionality.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About 469-P5-HI-A1-E-H
| What are the primary functions of the 469-P5-HI-A1-E-H relay? |
| The 469 relay is a multifunction motor management relay designed to protect and monitor motor performance. It offers current, voltage, and thermal protection, along with start control, fault detection, and alarm features. |
| What types of motors does this relay support? |
| The 469 relay supports various motor types, including induction and synchronous motors. Its flexible configuration options make it suitable for a range of motor control and protection applications. |
| How do you configure the 469-P5-HI-A1-E-H? |
| Configuration can be done through the front panel buttons on the relay, or more advanced settings can be managed using GE Multilin EnerVista software, which supports remote monitoring and diagnostics |
| How does the 469 relay provide motor protection? |
| It provides comprehensive protection by monitoring real-time electrical parameters like current, voltage, and frequency. It can detect overloading, undervoltage, overcurrent, phase imbalance, and more to protect the motor. |
