| Product module | 531X207LCSAMG1 |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight | 0.98KG |
| Production year | 2024 |
| country of origin | USA |

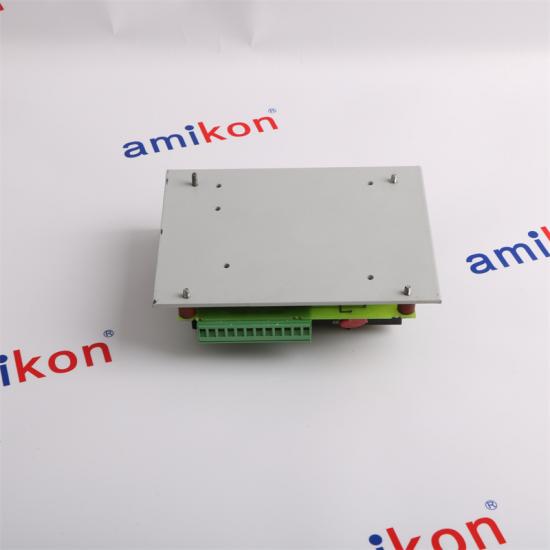

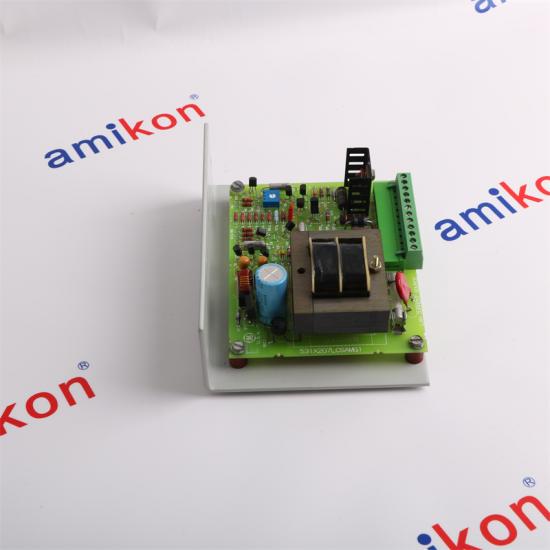

GE 531X207LCSAMG1 Drive Board
Specification
| 531X207LCSAMG1 Drive Board |
|
current source：5 VDC and 15 VDC power |
|
input power supply ：115 VAC |
|
terminal block：12 |
|
Precise Control: Provides precise control over motors and other drive systems, ensuring efficient operation in industrial applications. |
|
Reliable Performance: Manufactured with high-quality materials, offering long-term reliable performance in harsh industrial environments. |
|
Dimensions:15.2x11.8x6cm |
Funcrional Description
The 531X207LCSAMG1 board was developed as a local area network (LAN) current source board. The manufacturer,
General Electric, designed this card for the 531X replacement series of drive boards. As it is a standard component
of the drive cabinet, this card can be installed into a number of machines across GE’s brand of drives and exciters. This current source
board provides rated power supplies of 5 VDC as well as 15 VDC to the LAN board when installed.
A fuse protected 115 VAC input power source provides necessary electricity to the board.
Power supplies required by the LAN communication board is provided by this card. A jumper (J1) found on the board allows users
to select between the two provided power supplies. Should these levels be adjusted, users must then adjust the output accordingly. A potentiometer
found on the card allows for the output configuration. 531X207LCSAMG1 also features a protected fuse as
well as a 12-point terminal board. The terminal board relays all signals sent to and from the card.
Necessary installation parameters should be reviewed before board installation occurs. Meeting the provided parameters will
help to reduce any risk of damage to the board, drive, or user. Included on the 531X207LCSAMG1 board are electrical circuits, so only allow
trained users to install this card. The series manual as well as the device datasheet contains a comprehensive installation
and wiring guide. Technical support for the entire 531X series was originally provided by General Electric.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions
| What applications is the GE 531X207LCSAMG1 Drive Board suitable for? |
| The GE 531X207LCSAMG1 Drive Board is used in various industrial applications requiring precise motor control and drive system management. It is typically employed in automation and control systems within industrial environments. |
| What types of motors can the GE 531X207LCSAMG1 Drive Board control? |
| This drive board is designed to control a range of motors used in industrial applications, including AC and DC motors, depending on the system configuration and requirements. |
| What are the common troubleshooting steps if the GE 531X207LCSAMG1 Drive Board is not functioning correctly? |
| Check for proper power supply and connections. |
| Does the GE 531X207LCSAMG1 Drive Board support any specific communication protocols? |
| The drive board supports various communication protocols used in GE systems, facilitating integration with other modules and ensuring efficient data exchange. |
