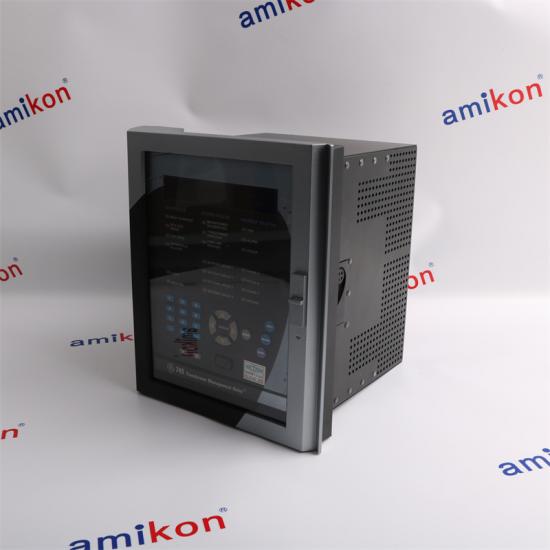

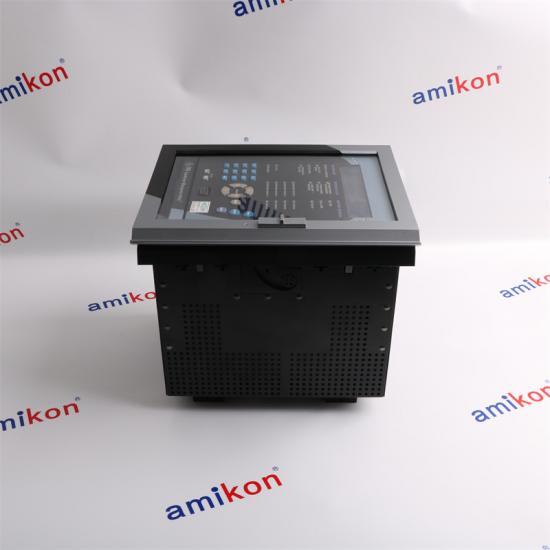

GENERAL ELECTRIC 745-W2-P5-G5-HI-A-L-R-E-H Transformer Protection System
| Product module | 745-W2-P5-G5-HI-A-L-R-E-H |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight | 7.54KG |
| Production year | 2024 |
| country of origin | USA |
GE 745-W2-P5-G5-HI-A-L-R-E-H Transformer Protection System
Features
| 745-W2-P5-G5-HI-A-L-R-E-H Transformer Protection System |
|
Part Number: 745-W2-P5-G5-HI-A-L-R-E-H |
|
745：745 Transformer Protection System |
|
W2:Two windings per phase |
|
P5:Winding 1 = 5 A, Winding 2 = 5 A, Winding 3 = 5 A |
|
G5:Winding 1/2 = 5 A, Winding 2/3 = 5 A |
|
HI:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz |
|
A :Analog inputs/outputs |
|
L:Loss of life |
|
R:Restricted ground fault |
|
E: Enhanced display, larger LCD |
|
H:Harsh (chemical) environment conformal coating |
|
Dimensions:21.5x23x25cm |
Funcrional Description
Transformer protection and management is a difficult task, but GE Multilin 745-W2-P5-G5-HI-A-L-R-E-H’s adaptive features and
system monitoring capabilities streamline the process with ease. Intended to work with transformer systems small to large, the 745
is a highly configurable transformer protection relay. Features such as adaptive harmonic restraint help maintain system security
during inrush events. Users can also adjust how the relay interacts with the system by adding, removing, or editing setpoints,
which are configurable settings that determine how the relay behaves. The 745’s FlexLogic™ technology increases versatility and
decreases the need for auxiliary components and wiring, allowing the configuration of unique equations that provide
customized outputs in the system. The 745-W2-P5-G5-HI-A-L-R-E-H’s display screen is enhanced over the base model and is
larger as a result. The screen is noticeably wider and the expanded keypad makes inputting and navigating the relay easier. The relay is
18lbs, 6oz when housed in the SR series chassis and approximately 10lbs, 8oz when removed from the case.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About 745-W2-P5-G5-HI-A-L-R-E-H
| What options come with the 745-W2-P5-G5-Hi-A-L-R-E Multilin protection system and what size of transformer can this part protect? |
|
The 745-W2-P5-G5-Hi-A-L-R-E transformer protection system is designed to protect small, medium, and large sizes of power transformers. These systems are made to have two windings per phase (as specified by W2 in the part number). |
| What is the primary function of the 745-W2-P5-G5-HI-A-L-R-E-H Transformer Protection System? |
| The 745-W2-P5-G5-HI-A-L-R-E-H system is designed to protect transformers by providing comprehensive monitoring and protection against faults such as overcurrent, differential protection, and thermal overload. |
| What communication protocols are supported by the 745-W2-P5-G5-HI-A-L-R-E-H? |
|
The 745-W2-P5-G5-HI-A-L-R-E-H supports multiple communication protocols, including Modbus, DNP3, and IEC 61850, facilitating easy integration into modern SCADA systems. |
| How can the 745-W2-P5-G5-HI-A-L-R-E-H be configured? |
| Configuration can be done through the front panel interface, or via dedicated configuration software provided by the manufacturer, allowing for flexibility in setup and operation. |
