Product module | DS200TCPSG1ARE |
Brands | GENERAL ELECTRIC |
Payment | Paypal/TT |
Condition | 100% New |
Weight | 1.2KG |
Production year | 2024 |
country of origin | USA |

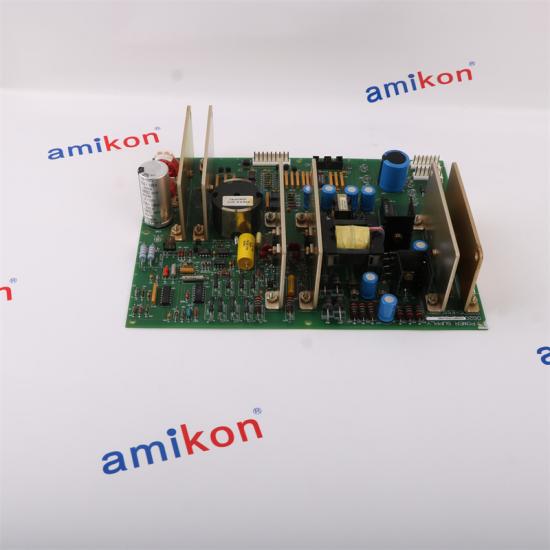

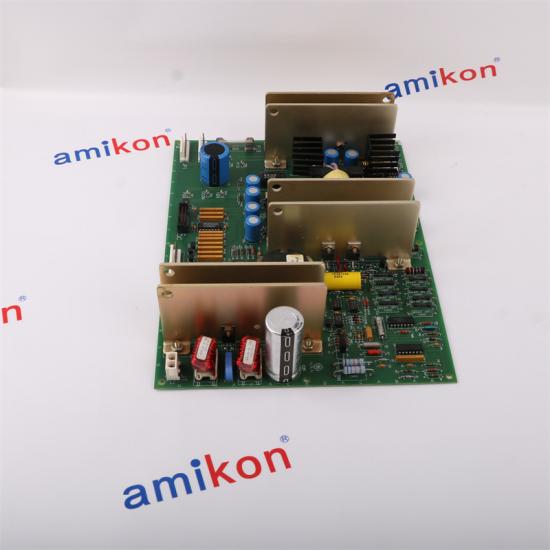

GE DS200TCPSG1ARE DC Input Power Supply Board
Specification
DS200TCPSG1ARE DC Input Power Supply Board |
16 pin connector:1 |
9 pin connector:1
|
power supply:125 VDC |
Reliable Power Conversion: The DS200TCPSG1ARE efficiently converts DC input power to a stable output, ensuring consistent performance for GE control systems. |
Robust Design: Built to withstand harsh industrial environments, this power supply board offers durability and reliability in demanding conditions. |
Dimensions:28x21.3x6.8cm |
Funcrional Description
This DS200TCPSG1ARE printed circuit board product offering was originally manufactured by General Electric, for
placement in the Mark V Turbine Control System Series, as identified above. This DS200TCPSG1ARE PCB's greater
Mark V Series has specific applications in the management and control systems of popular and compatible wind, steam,
and gas turbine automated drive assemblies, as proven through the above-inserted full extended series name. While the
Mark V Series from GE that this DS200TCPSG1ARE product offering belongs to has specific applications in a relatively
newly-developed style of alternative technology potentially, it is still something of an outdated General Electric product series,
given its obsolescence-necessitated manufacturing discontinuation that took place in the years following its initial release.
With this being true, this DS200TCPSG1ARE PCB's Mark V Series is still highly-sought in the automated industrial marketplace,
as it is one of the final General Electric product series to make use of the brand's patented Speedtronic control system technology
first introduced alongside the rollout of the Mark I Series in the mid to late 1960s. This specific DS200TCPSG1ARE printed circuit board
product offering is not the original product of its specific functionality to exist within the Mark V Series; that would be the DS200TCPSG1
parent DC Power Supply Input Board missing all three of this DS200TCPSG1ARE device's three significant product revisions.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions
Where is DS200TCPSG1ARE located? |
DS200TCPSG1ARE is located in the < R > core and DS200TCPSG1ARE is also located in the I/O cores. |
What is the J1 connector for on DS200TCPSG1ARE? |
The J1 connector on DS200TCPSG1ARE is the connector that brings the 125 VDC power supply into DS200TCPSG1ARE from the TCPD board in the < PD > core. JP2 on DS200TCPSG1ARE is identical to JP1. |
What is the CCOM bus connection on DS200TCPSG1ARE? |
DS200TCPSG1ARE's CCOM bus connection is connector X1 on DS200TCPSG1ARE. |
What is the primary function of the DS200TCPSG1ARE DC Input Power Supply Board? |
The main function of this power supply board is to convert DC input power into a form suitable for use by the control system and associated equipment, providing reliable power to ensure stable system operation. |
