| Product module | IC693MDL646 |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight | 0.28KG |
| Production year | 2024 |
| country of origin | USA |

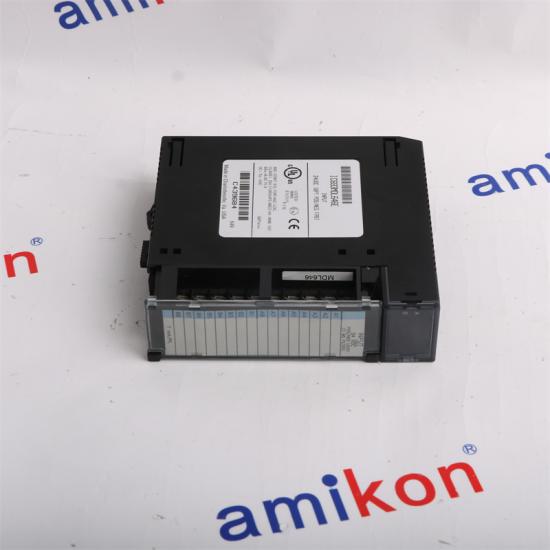

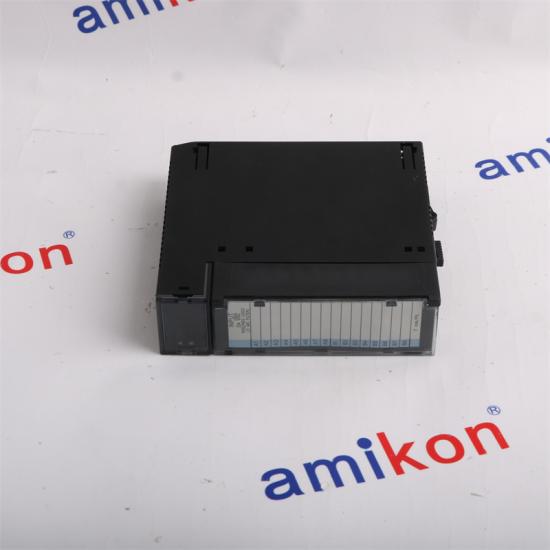

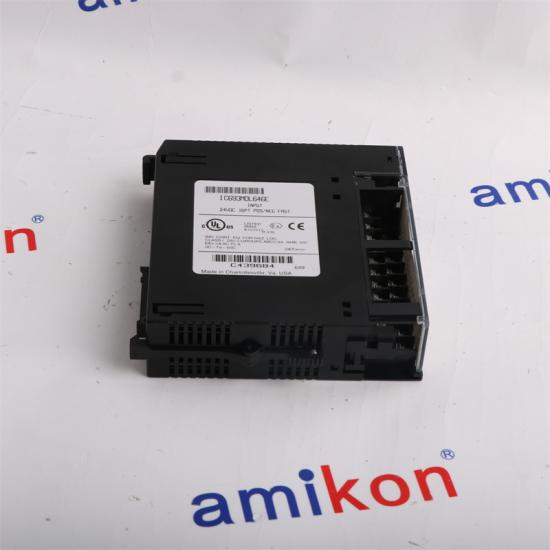

GE IC693MDL646 Positive/Negative Logic Input Module
Specification
| Lifecycle Status |
Active |
| Module Type | Discrete Input |
| Power Type | DC |
| Input Voltage Range | 0-30 VDC |
| Input Current (mA) |
7 |
| Number of points |
16 |
| Response Time (ms) |
1 on/1 off |
| Trigger Voltage |
11.5-30 |
| Points per Common |
16 |
| Connector Type |
Terminal Block (20 screws), included with module. |
| Internal Power Used |
80 mA @ 5 VDC; 125 mA @ 24 VDC Isolated |
| Dimensions | 3.5x13x13.5cm |
Functional Description
The IC693MDL646 Positive/Negative Logic Input Module is a versatile and reliable input module designed
for use with the GE Fanuc Series 90-30 PLC system. It features 16 input points that can be configured to
accept either positive or negative logic signals, providing flexibility to accommodate various input devices
and control requirements. The module supports both dry contact (passive) and wet
contact (active) signals, making it adaptable to different types of input sources.
Housed in a durable enclosure, the IC693MDL646 is built to withstand harsh industrial environments and
is equipped with clear status indicators for each input point. These indicators facilitate real-time monitoring
and troubleshooting by providing immediate feedback on the status of input signals. The module integrates
seamlessly with the GE Fanuc Series 90-30 PLC, ensuring reliable communication and control
within the system. Its design allows for easy installation and maintenance, making
it a suitable choice for both new installations and system upgrades.
Overall, the IC693MDL646 enhances the ability to manage and process discrete input signals effectively,
contributing to the efficiency and functionality of industrial automation systems.
Email : sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Freequently Asked Questions
| What is the primary use of the IC693MDL646? |
| The IC693MDL646 is used with the GE Fanuc Series 90-30 PLC system to handle positive and negative logic input signals, suitable for various industrial automation applications. |
| What types of logic does the IC693MDL646 support? |
| This module supports both positive and negative logic input configurations, providing flexible signal processing options. |
| How many inputs does the IC693MDL646 have? |
| The module provides 16 input points, allowing for the processing of multiple input signals. |
| What types of input signals can the IC693MDL646 handle? |
| It can handle dry contact (passive) and wet contact (active) signals, accommodating different control requirements. |
| How is the IC693MDL646 configured? |
| Configuration is done through the PLC’s programming software, where users can set the module’s logic type and input parameters. |
