| Product module | IC695PSA140 |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight | 0.52KG |
| Production year | 2024 |
| country of origin | USA |

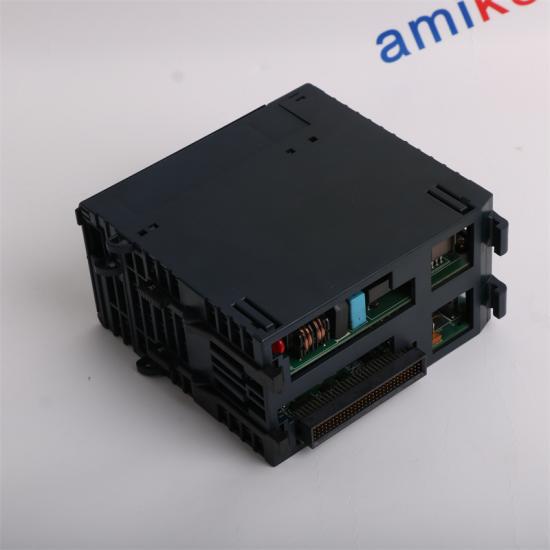

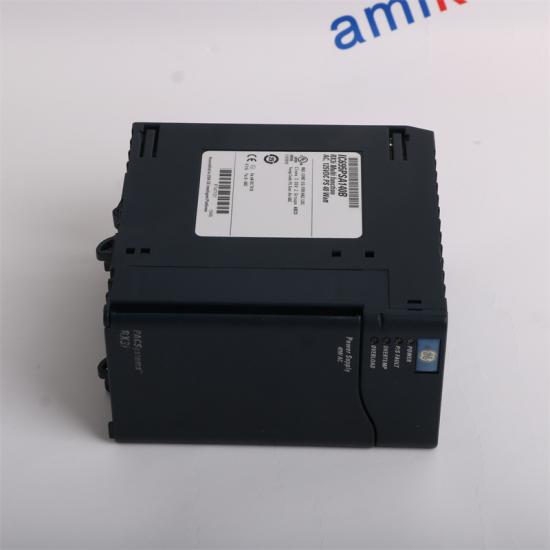

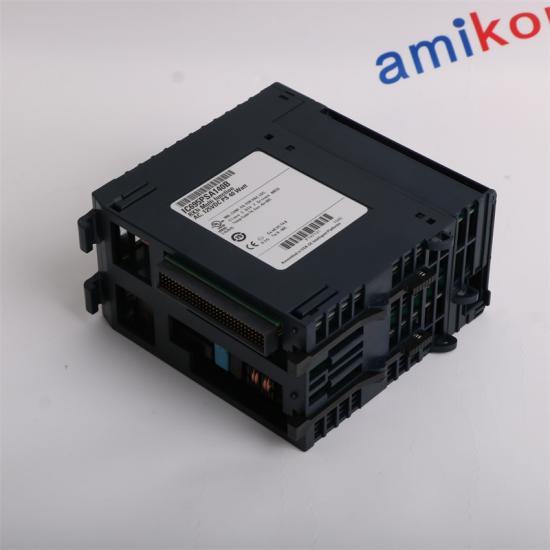

GE IC695PSA140 Universal Power Supply
Specifications
| Nominal Rated Voltage | 120/240 VAC or 125 VDC |
| Input Voltage Range AC | 85 to 264 VAC |
| Input Voltage Range DC | 100 to 300 VDC |
| Input Power (Maximum with Full Load) | 70 Watts maximum |
| Inrush Current | 4 Amps, 250 milliseconds maximum |
| Output Power |
40 Watts maximum total 5.1 VDC = 30 Watts maximum 3.3 VDC = 30 Watts maximum The maximum total output power available depends on the ambient temperature, as shown. |
| Ripple (all outputs) | 150 mV |
| Output Current | 24 VDC: 0 to 1.6 Amps, 5.1 VDC: 0 to 6 Amps, 3.3 VDC: 0 to 9 Amps |
| Dimensions | 7x13.2x13.6cm |
Functional Description
The 5.1 VDC output is electronically limited to 7 Amps. The 3.3 VDC output is limited to 10 Amps.
If an overload (including short circuits) occurs, it is sensed internally and the Power Supply shuts
down. Because it is designed for redundancy applications, this Power Supply latches “OFF” in
fault conditions and will not automatically try to restart. Input power must be cycled to clear a
latched fault. However, if the Power Supply is used in a non-redundant application where automatic
restarting is required, a jumper plug can be installed. An internal fusable link in the input line is provided
as a backup. The Power Supply usually IC695PSA140 shuts down before the fusable link blows. The fusable link also
protects against internal supply faults. The CPU Fault Table shows a fault if any Overtemperature, Overload, or P/S
Fault occurs. There is no additional indication if the Power Supply fusable link blows.
In a non-redundancy application, where automatic restarting may be appropriate, a shunt can be installed on back
of the module as shown at left. The shunt must have 0.100 inch spacing on center and accommodate 0.25 inch pins.
Example parts are Radio Shack DIP Programming Shunt #276-1512 and DIGI-Key
#59000- ND. The IC695PSA140 must be removed from the backplane to install the shunt
Email : sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Freequently Asked Questions
| What is the IC695PSA140 used for? |
| The IC695PSA140 is a universal power supply designed to provide reliable power to the RX3i PACSystem, a GE Fanuc automation system. |
| What is the input voltage range for the IC695PSA140? |
| The IC695PSA140 operates with an input voltage range of 85 to 264 VAC or 100 to 300 VDC, making it versatile for various power sources. |
| What is the output power capacity of the IC695PSA140? |
| It provides an output power capacity of 40 watts, sufficient to power the RX3i CPU and several modules within the rack. |
| Does the IC695PSA140 support redundancy? |
| Yes, the IC695PSA140 supports redundancy configurations when used with compatible power supply modules, enhancing system reliability. |
| What safety features does the IC695PSA140 include? |
| The power supply includes overcurrent, overvoltage, and short-circuit protection to safeguard the connected equipment and ensure safe operation. |
