| Product module | IS200EPDMG1BAA |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight | 0.54KG |
| Production year | 2024 |
| country of origin | USA |
GE IS200EPDMG1BAA Exciter Power Distribution Module
Specification
| IS200EPDMG1BAA Exciter Power Distribution Module |
|
Part Number: IS200EPDMG1BAA |
|
Equipped with a 24-point terminal block and ten plug connectors, the EPDM module offers ample connectivity options for power distribution |
|
Rated at 600 V ac or dc, these connectors ensure safe and reliable connections for various system components. |
|
Each switch is rated at 125 V dc and 6 A, offering precise control over power output to different components. |
|
Ac to Dc Conversion and Voltage Regulation: Externally, Ac to Dc Converters (DACA) rectify ac inputs to 125 V dc, ensuring stable power conversion. |
|
Convenient Power Output Features: Individual power outputs to exciter boards are equipped with fuses, on/off toggle switches, and green LED indicators, offering users convenient monitoring and control options. |
|
With seven switches and fourteen fuses, the EPDM module provides granular control and protection for power distribution. |
|
Dimensions:33x12.6x4.5cm |
Funcrional Description
The IS200EPDMG1BAA is a rectangular board component made by General Electric as part of the Mark VI gas/steam turbine
control system. The Mark VI is one of several turbine control systems marketed under the Speedtronic name since the 1960s.
This iteration includes Ethernet capabilities and can be built to offer Simplex or TMR (triple modular redundant)
control depending on the size and complexity of the associated turbine system.

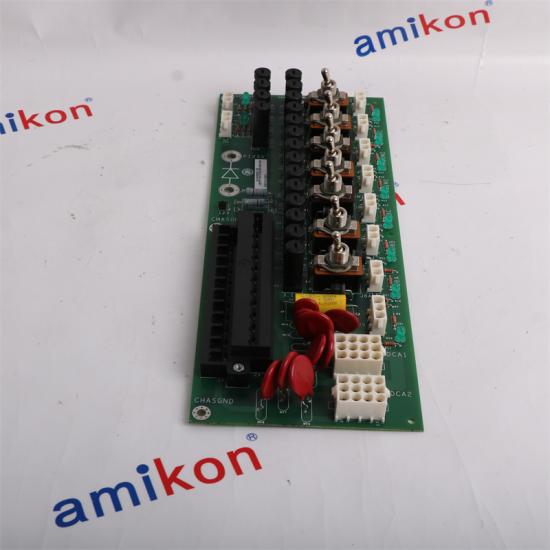

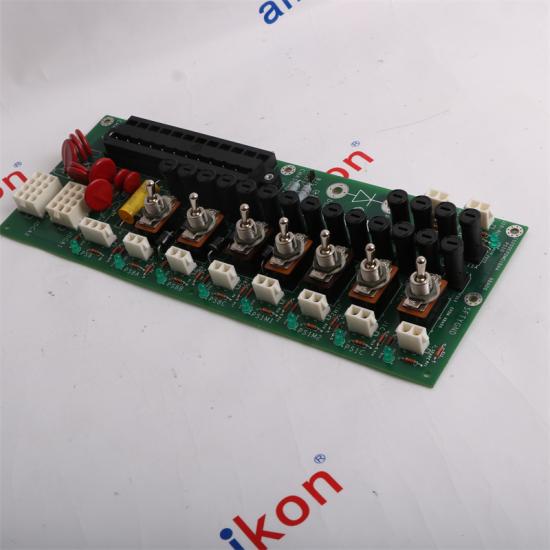

The IS200EPDMG1BAA is built with two terminal blocks located in the bottom corner. Other board components include multiple
female plug connectors, the previously-mentioned toggle switches, and multiple fuses to protect all throughput. The board also
has metal oxide varistors, capacitors, and resistors. There are eight green LED indicators lined up along
one long edge of the board that will let users know when the board is energized.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About IS200EPDMG1BAA
| What is IS200EPDMG1BAA? |
| It is a Exciter Power Distribution Module developed by GE under the EX2100 series. |
| What is the primary function of the Exciter Power Distribution Module (EPDM)? |
| The module serves as a critical component in excitation control systems, providing power distribution for control, I/O, and protection boards within the exciter. |
| How is the EPDM module powered? |
| The module receives 125 V dc power from the station battery and can accept one or two 120 V ac power inputs for backup, ensuring reliable power supply under various conditions. |
| What safety features does the module incorporate? |
| It includes fourteen fuses for protection against overcurrent, seven switches for granular control, and eight LED indicators for visual feedback on power availability and status. |
