| Product module | IS200ERBPG1ACA |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight | 0.54KG |
| Production year | 2024 |
| country of origin | USA |

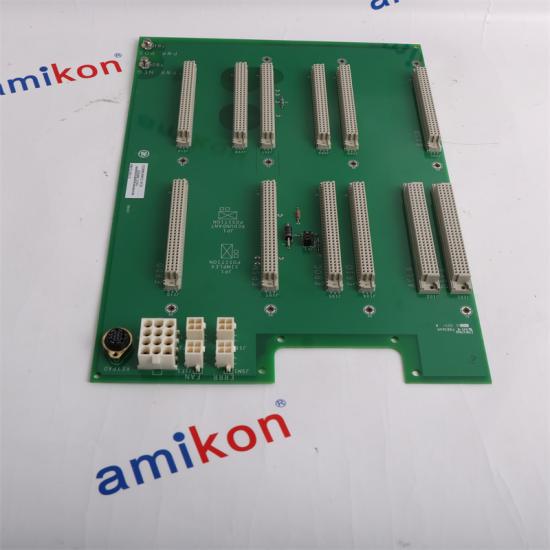

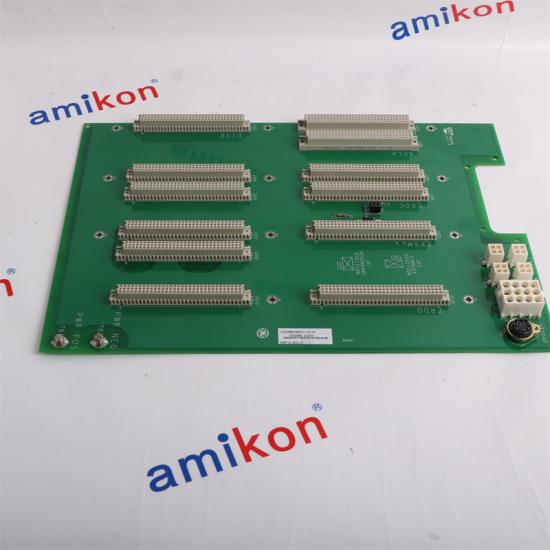

GE IS200ERBPG1ACA Exciter Regulator Backplane
Specification
| IS200ERBPG1ACA Exciter Regulator Backplane |
|
Part Number: IS200ERBPG1ACA |
|
Number of channels: 12 |
|
Input span: 4-20 mA
|
|
Common Mode Voltage Range: ±5 V |
|
Maximum Lead Resistance: 15Ω |
|
Analog output current: 0-20 mA |
|
Operating temperature: -30 to 65 °C |
|
Dimensions:33.5x23.3x1.7cm |
Funcrional Description
IS200ERBPG1ACA is an Exciter Regulator Backplane manufactured and designed by General Electric as part of the
EX2100 Series used in GE Excitation Control Systems. The IS200ERBPG_A Exciter Regulator Backplane (ERBP) is used
in EX2100 regulator control systems. The ERBP provides connectivity between all printed circuit boards mounted within
it. Power connectors are provided on the front for other external boards that it supports and for fan power output.
Overall ERBP architecture is not VME compliant. It provides 3U or 6U versa module euro (VME) 96-pin or 128-pin DIN
backplane connectors for boards mounted within it. Power is distributed to the mounted boards through these connectors.
The ERBP includes a board identification (ID) serial bus for all installed boards. The boards mounted within the ERBP
contain a board ID device that is programmed with the barcode serial number, board type, and hardware revision.
The board ID device interfaces with the control associated with the specific backplane slot. It also provides
master selection jumpers for simplex or redundant exciter regulator applications.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions
| What is the primary function of the IS200ERBPG1ACA Exciter Regulator Backplane? |
| The IS200ERBPG1ACA serves as the primary interface for connecting exciter regulators within a GE control system, enabling communication and power distribution to ensure proper excitation control. |
| Is the IS200ERBPG1ACA compatible with other GE systems? |
| Yes, this backplane is designed to integrate seamlessly with other GE control systems and exciter regulators, providing reliable operation and connectivity. |
| What types of environments can the IS200ERBPG1ACA operate in? |
| The backplane is built to withstand various industrial environments, including those with high levels of vibration, temperature fluctuations, and electromagnetic interference. |
|
Does the IS200ERBPG1ACA require regular maintenance? |
| The backplane is designed for long-term use with minimal maintenance. However, regular inspections are recommended to ensure all connections are secure and the backplane operates correctly. |
