| Product module | IS200IGPAG2AED |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight | 0.36KG |
| Production year | 2024 |
| country of origin | USA |
GE IS200IGPAG2AED gate drive power supply card
Specification
| IS200IGPAG2AED gate drive power supply card |
|
Part No.: IS200IGPAG2AED |
|
Number of Plug Connectors: 8 |
|
Number of Terminal Connectors: 2
|
|
LED Indicators: Features two sets of LEDs positioned on opposite sides. Each set includes one amber LED and one green LED, providing visual status indicators essential for monitoring operational states. |
|
Right Side Configuration: The right side of the board primarily hosts the LEDs, several terminal connectors, and a single vertical 9-pin male header connector. It includes outlined positions for additional components that are not populated on the board. |
|
Dimensions:19x16.5x5cm |
Funcrional Description
The IS200IGPAG2AED is a component for the Mark VI system. The Mark VI is a Speedtronic system for gas/steam
turbine management. Speedtronic systems from GE have been used for turbine management for decades, starting
with the Mark I in the 1960s and continuing through to the release of the Mark VI and Mark VIe in the late
1990s/early 2000s. The Mark VI includes advances like a PC-based HMI (human machine interface) that
gives users access to data from the central Control Module in one location. The HMI uses proprietary
software designed for turbine management, like CIMPLICITY graphics and the GE Control Systems Toolbox.

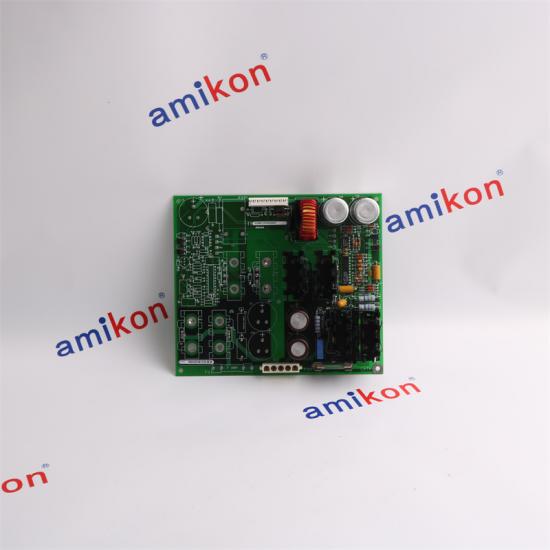

The IS200IGPAG2AED has two distinct sides of the board. One side is full of components while the other
is nearly empty. The nearly empty side of the board has markings drawn on the board surface where
components might be placed, but the components are not on the board. The few components that are
located on this side include a 9-pin vertical male header connector, several terminal connectors
drilled through the surface of the board, and two LED indicators placed side-by-side on the
board edge. These LEDs are mirrored on the other side of the board by two
other LEDs. Each pair of LEDs includes one green and one amber LED.
The ‘full’ side of the IS200IGPAG2AED includes an inductor coil, four electrolytic capacitors, several
ceramic capacitors and some capacitors made of polyester vinyl. The board has six heat sink
components located in two lines. Resistors located on the IS200IGPAG2AED tend to
be made of metal film material. The board has few integrated circuits.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions
| What is IS200IGPAG2AED? |
| It is a Gate Drive Power Supply Board developed by GE under the EX2100 series. |
| What power options does the exciter system offer? |
| It supports power from potential, compound, or auxiliary sources, allowing configurations with single or multiple bridges, warm backup bridges, and simplex or redundant controls. |
| How is power supplied to the exciter? |
| Power is drawn either from a power potential transformer connected to the generator terminals or from an excitation transformer linked to an auxiliary bus. |
|
Does the IS220PRTDH1AD PCB require regular maintenance? |
| Primary feedback sources include generator line current and stator output voltage. The exciter system adjusts DC voltage and current to control the exciter field based on this feedback. |
