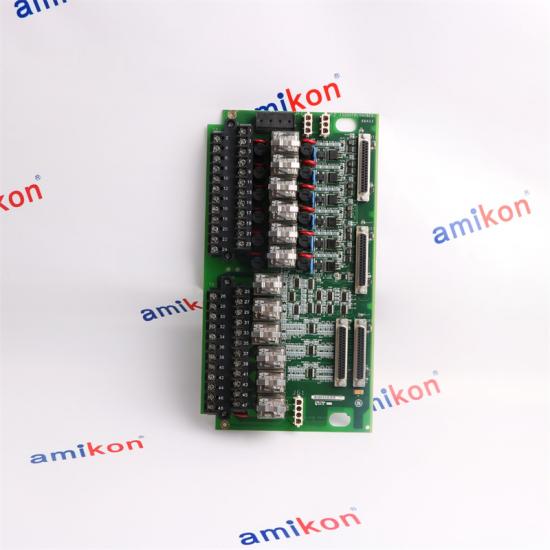

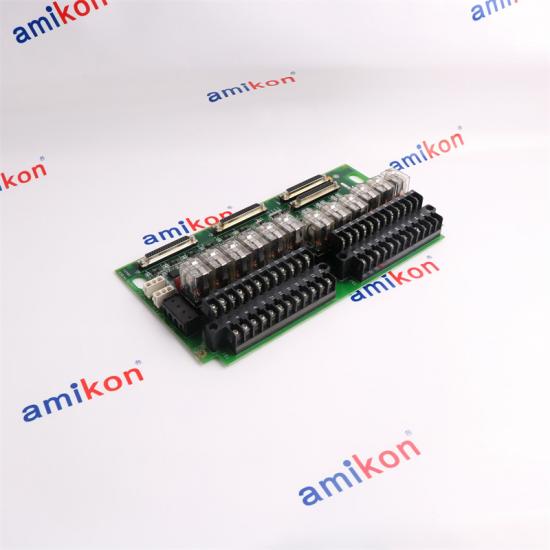

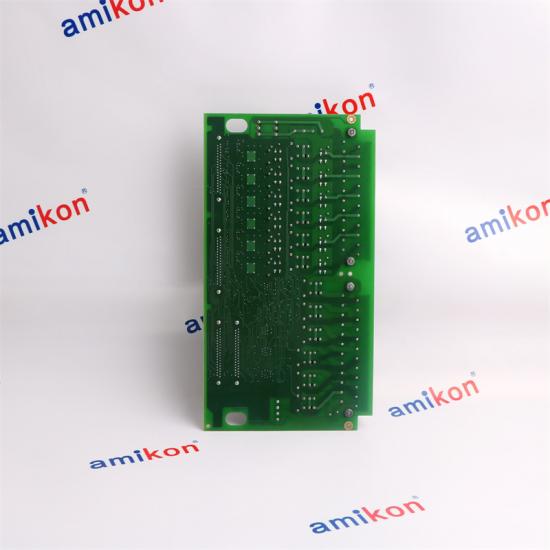

General Electric IS200TRLYH1BED IS200TRLYH1B Relay Output Board

Frequently Asked Questions about IS200TRLYH1BED IS200TRLYH1B

Q: What type of model is the IS200TRLYH1BED IS200TRLYH1B unit?

A: This model is described as a Relay Output Board by GE Boards & Turbine Control.

The manufacturer of this model is GE Boards and Turbine Controls and it is suitable for use with

the Mark VI IS200 Turbine Control System series.

Q: Are there any limitations on the GE IS200TRLYH1BED IS200TRLYH1B's VCRC board?

A: VCRC does not affect the ability to be controlled by the TICI board as the VCCC model does,

as the J3 and J4 connectors do not support this connection.

The Mark VI IS200 Turbine Control System, developed by GE, is designed for controlling gas and steam turbines,

offering a highly reliable and flexible solution for turbine management. It integrates advanced control, protection,

and monitoring capabilities in a modular design.

CPU Controllers (Description:

The control system includes a high-performance central processing unit (CPU) with integrated turbine-specific

algorithms and control logic. (Features:

Multi-core processors for fast execution / Supports TMR and simplex configurations

Redundant controllers available for critical applications / Advanced diagnostics and fault tolerance.

I/O Modules (Input/Output Modules)(Description:

Mark VI supports a wide range of I/O modules for process control and monitoring. These modules handle various

signal types such as digital, analog, and relay outputs.(Features:

Analog Input/Output (AI/AO) / Digital Input/Output (DI/DO) / Relay outputs

High-speed data acquisition for real-time process control / Remote and distributed I/O support.

The Mark VI IS200 Turbine Control System is a robust, scalable, and reliable control solution tailored for critical

turbine operations. With advanced control algorithms, comprehensive safety features, and flexible communication

options, it ensures optimal turbine performance and safe operation in various industrial settings.
