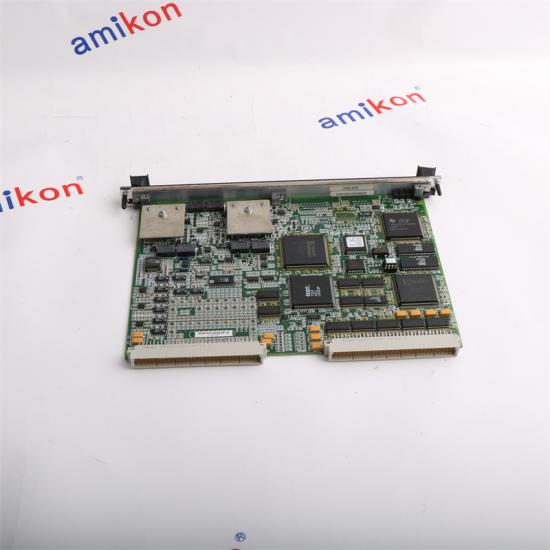

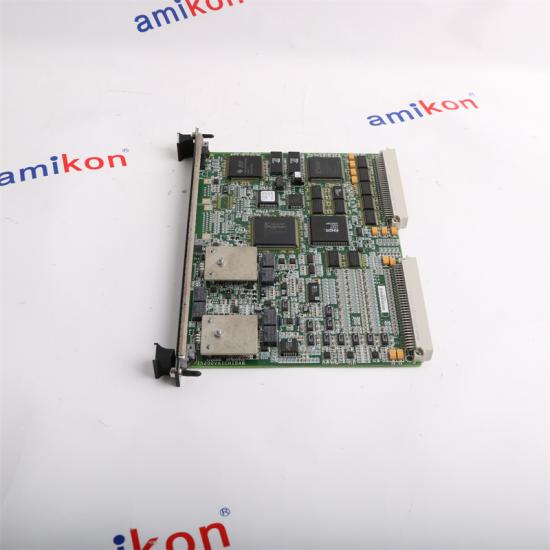

GE IS200VAICH1DAB Analog Input Board
Features
IS200VAICH1DAB Analog Input Board |
Instruction Manual :GEH-6421 |
Product Type:Analog Input/Output Board |
Functional Acronym/Abbreviation :VAIC |
Scan Time:Normal Scan 10 ms at 100 Hz |
Power Consumption:Less than 31 MW |
Series: Mark VI |
Dimensions:2x18.8x26.1cm |
Details
Manufactured by General Electric as an Analog Input/Output Board, the IS200VAICH1DAB model
is used in the Mark V system in either TMR or simplex applications. When used in a TMR system
configuration, the input signals on the attached terminal boards, TBAIH1C or STAI board, will be
fanned out to three VME racks, T, R, and S, each containing a VAIC board. The output signals
on the VAIC board will be driven with a proprietary circuit creating a desirable current using all of the
available VAIC boards. If any of the IS200VAICH1DAB models fail on the VME rack, the failed VAIC
model will be removed from the output, and the remaining VAIC boards can continue to provide the correct current. When
the model is used in a simplex configuration, the attached terminal boards will provide
inputs to one of the VAIC models providing all current for the outputs.
During the operation of the IS200VAICH1DAB model, it will control four analog outputs and accept up to twenty
analog inputs. The model has an analog MUX, A/D converter, D/A converter, and signal conditioning. There are two
analog inputs in the model, either ±1 mA or 4-20 mA, which are selected by jumpers on the attached terminal boards.
The analog output circuits are divided; two outputs can be configured at 0-200 mA or 4-20 mA, and the others are just 4-20 mA.
Both inputs and outputs on the IS200VAICH1DAB model contain high-suppression circuitry to protect against high-frequency noise and surges
Email : sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Freequently Asked Questions
What is the primary function of the GE IS200VAICH1DAB Analog Input Board? |
The GE IS200VAICH1DAB Analog Input Board is designed to interface with analog sensors and devices, converting analog signals such as voltage and current into data that can be processed by industrial control systems. |
What types of analog signals does the IS200VAICH1DAB support? |
The board supports a variety of analog signals, including both voltage (e.g., 0-10V) and current (e.g., 4-20mA) inputs, making it versatile for different industrial measurement and control applications. |
How is the IS200VAICH1DAB installed? |
The IS200VAICH1DAB is typically installed in a control panel or cabinet. It features a compact design with clearly labeled terminals for easy wiring and installation. Ensure proper mounting and secure connections during installation. |
What are the maintenance requirements for the IS200VAICH1DAB? |
The IS200VAICH1DAB requires minimal maintenance. Regular inspections to ensure secure wiring connections and to keep the board clean and free from debris are recommended to maintain optimal performance. |
