| Product module | IS220PDIAH1A |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight | 0.36KG |
| Production year | 2024 |
| country of origin | USA |

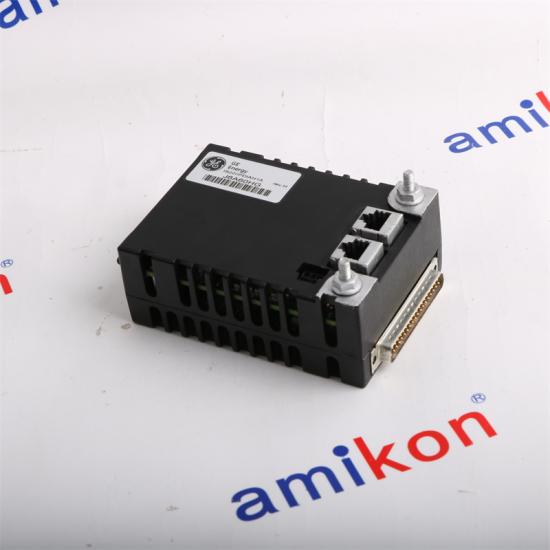

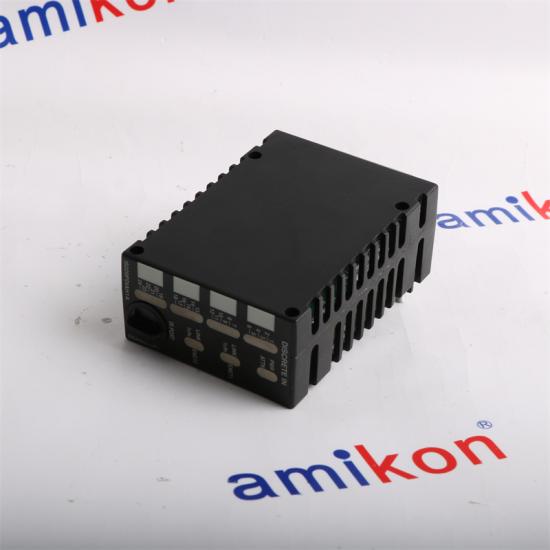

GE IS220PDIAH1A Discrete Contact Input Terminal Board
Specification
| IS220PDIAH1A Discrete Contact Input Terminal Board |
|
Part Number: IS220PDIAH1A |
|
Number of channels: 24 |
|
Input Filter: Hardware Filter, 4 ms
|
|
Minimum Voltage 27.4 VDC |
|
AC Voltage Rejection: 60 V rms at 50/60 Hz at 125 V dc excitation |
|
Availability: In Stock |
|
Dimensions: 12.8x8.2x6cm |
Funcrional Description
IS220PDIAH1A is a Discrete Contact Input Terminal Board manufactured and designed by
General Electric as part of the Mark VIe Series used in GE Distributed Turbine Control Systems.
The PDIA I/O pack provides the electrical interface between one or two I/O Ethernet networks
and a discrete input terminal board. The pack contains a processor board common to all
Mark VIe distributed I/O packs and an acquisition board specific to the discrete input function.
The pack accepts up to 24 contact inputs and terminal board-specific feedback signals, and PDIA
accepts three different voltage levels (with types TBCIH1, H2, and H3 terminal boards). Connections
for the isolated discrete input board with voltage sensing (with type TICI board) are available.
System input to the pack is through dual RJ45 Ethernet connectors and a three-pin power input.
Discrete signal input is through a DC-37 pin connector that connects directly with the associated terminal
board connector. Visual diagnostics are provided through indicator LEDs, and local
diagnostic serial communications are possible through an infrared port.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions
| What is the IS220PDIAH1A? |
| The IS220PDIAH1A is a Discrete Contact Input Terminal Board designed for use in industrial control systems. It provides a means to connect discrete field devices to a control system, allowing for the monitoring of various digital signals. |
| What are the key features of the IS220PDIAH1A? |
| The IS220PDIAH1A features multiple input channels for connecting discrete contact signals, high reliability for industrial applications, and compatibility with a range of control systems. |
| What types of signals can the IS220PDIAH1A handle? |
| The IS220PDIAH1A is designed to handle discrete contact signals, which are typically used for monitoring on/off states, such as limit switches, push buttons, and other binary input devices. |
| Can the IS220PDIAH1A be used in hazardous environments? |
| The IS220PDIAH1A is designed for general industrial environments. |
