| Product module | IS220PVIBH1A |
| Brands | GENERAL ELECTRIC |
| Payment | Paypal/TT |
| Condition | 100% New |
| Weight |
0.46KG |
| Production year | 2024 |
| country of origin | USA |

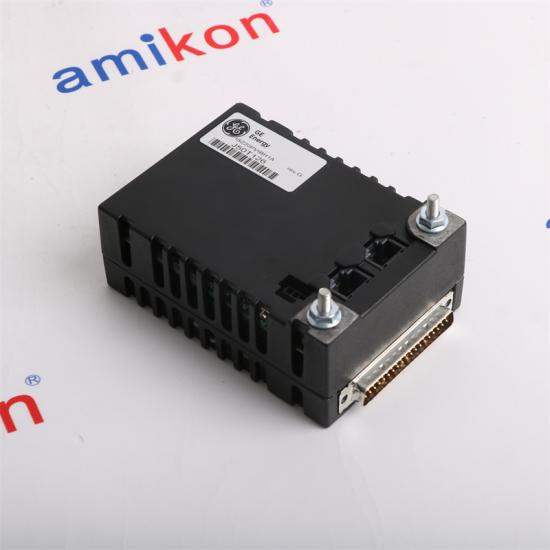

GE IS220PVIBH1A VIBRATION MODULE
Specification
| IS220PVIBH1A VIBRATION MODULE |
|
Ambient Temperature Range:-30 to 65 °C |
|
Board Compatibility :Vibration Terminal Board (TVBA) |
|
Common Mode Voltage: Min. 5 VDC |
|
Frame Rates :3.125, 6.25, 12.5, 25, 50, and 100 Hz |
|
Functional Acronym/Abbreviation ：PVIB |
|
LED Indicators： 4 |
|
Dimensions:6x12.8x8.2cm |
Funcrional Description
The IS220PVIBH1A model was designed as a Vibration Monitor Pack. The main function of the PVIB pack is to
provide an electrical interfacing function between up to two I/O Ethernet networks and a vibration terminal board.
The main components of this pack are the main processor board which is used with a majority of the
MK VIe distributed I/O packs as well as a daughterboard and an acquisition board.
There are thirteen channels on this pack which are used for collecting and reading proximity and vibration information
through several sensor types which are as follows: Velomitor、Seismic、Proximitors、Accelerometers
The sensor types are used with different channels, for example, the accelerometers are only used with channels one,
two, and three. Please note that channels nine, ten, eleven, and twelve can only be used in supporting proximitors
while the thirteenth channel can input a proximity-type or Keyphasor signal type. Note that the thirteen differential
inputs on the IS220PVIBH1A pack have a DAC (digital analog converter) which is used for bias adjustment
which can void the DC content of the signal which will better center the A/D (analog-to-digital) input range.
The PVIB I/O pack has a processor application code that is used to potentially contain all of the logic codes
necessary to allow the pack to operate from singular or dual Ethernet inputs. The network paths necessary to
properly operate the IS220PVIBH1A pack are active at all times when being operated from two Ethernet inputs.
If for any reason either network fails it will not result in any type of disturbance to the operation
of the I/O pack but the failure will be indicated through the operating network connection.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions
| What is the primary purpose of the IS220PVIBH1A Vibration Module? |
| The IS220PVIBH1A Vibration Module is used to detect and monitor vibrations in industrial equipment to help prevent equipment failure and ensure the safe operation of the system. |
| Which types of sensors are compatible with the IS220PVIBH1A module? |
| This module is typically compatible with vibration sensors such as accelerometers, velocity sensors, and displacement sensors, depending on the model and specifications of the sensors. |
| How is data from the IS220PVIBH1A module transmitted? |
| The module transmits vibration data to the control system using standard industrial communication protocols, with common protocols including Modbus, Profibus, etc. |
| What environmental conditions can the IS220PVIBH1A module operate under? |
| This module is designed to operate in industrial environments and can withstand harsh conditions such as high temperatures, humidity, and vibrations. Specific environmental parameters can be found in the product manual. |
