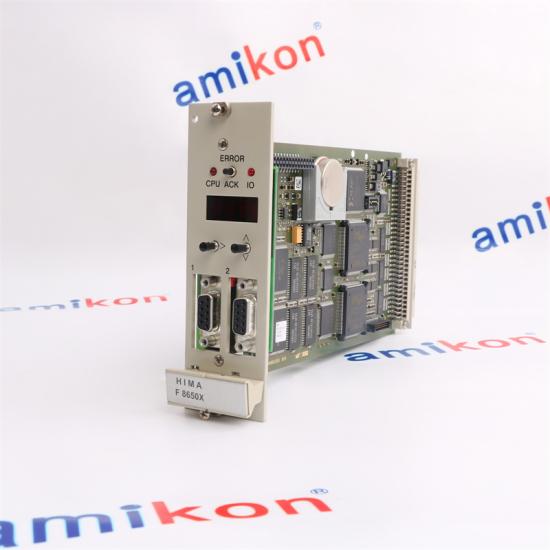

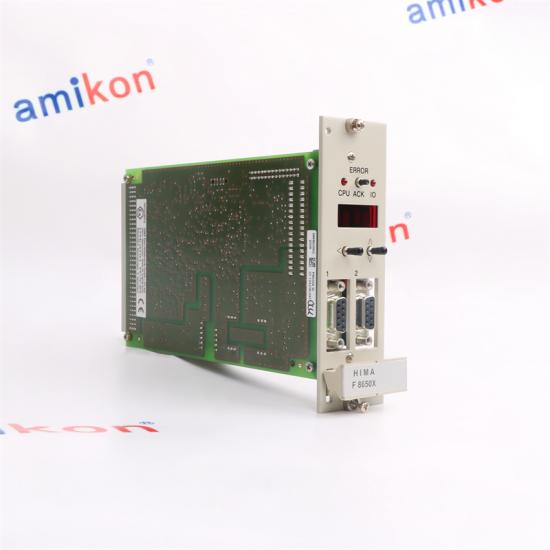

HIMA F8650X F 8650X CPU Controller Module

F8650X F 8650X Brand and Origin: Hima (Germany)

F8650X F 8650X will be applied to industries requiring high safety, such as oil and gas, chemicals, and so on

F8650X F 8650X F3221, F3330, F7131, F7133, F3112, F3225, F7101, F7113, F7119, F7537, F8612B, F7546, F8652X,F7126...

HIMA product HIMatrix parameter reference

·Safety Integrity Level (SIL): SIL 3 certification (compliant with IEC 61508 standards)

·Response Time: Typically less than 10 milliseconds

·Modular Design: Scalable modules to accommodate different scale applications

·Communication Protocols: Supports Ethernet, Modbus, Profibus, CAN, etc.

·Power Supply Voltage: 24 V DC

·Ambient Temperature Range: -20°C to +60°C

·Protection Rating: IP20 (higher ratings available as options)

·Input/Output Channels: Various types of input/output modules, including digital and analog

·Diagnostic Features: Real-time monitoring and fault detection

·Programming Interface: User-friendly programming tools, supporting IEC 61131-3 standards

·Installation Method: DIN rail mounting

·Storage Temperature: -40°C to +85°C

·Electromagnetic Compatibility (EMC): Compliant with IEC 61000-4-2, 3, 4, 5 standards

❒These parameters demonstrate the high reliability, safety and flexibility of the HIMatrix system, making it suitable for a wide

range of industrial safety applications.
