| Product module | FC-FANWR-24R |
| Brands | HONEYWELL |
| Payment | Paypa/TT |
| Condition | 100% New |
| Weight | 1.44KG |
| Production year | 2024 |
| country of origin | USA |

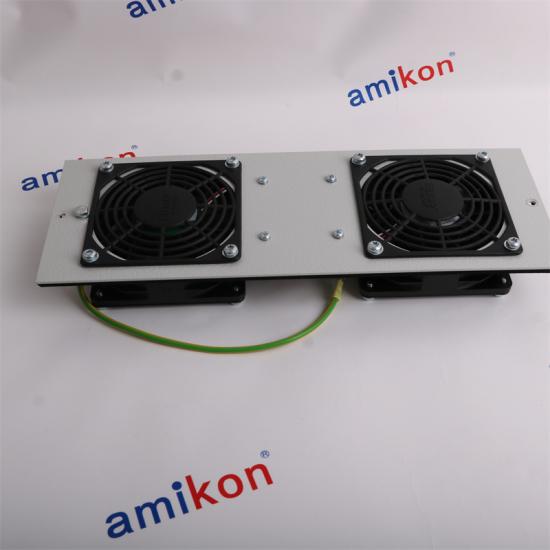

HONEYWELL FC-FANWR-24R Fan Assembly Kit
Discription
| FC-FANWR-24R Fan Assembly Kit |
||
| General |
Type numbers | FC-FANWR-24R |
| Approvals: | CE; UL; FM |
|
| Model and make |
Fan make: | Papst |
| Model: | 4184N/17X (ball bearing)V |
|
| Power |
Finger guard make: | Papst |
| Model: | LZ30 |
|
| Fuse |
Power requirements: | 24 V DC 9.5 W |
| Voltage range: |
12-29 V DC No reverse polarity protection |
|
| Air flow |
(for the complete unit) | 360 m3/hr., 211.8 CFM |
| Noise |
(for the complete unit) | 52 dB |
| Readback contact |
Max. switched voltage: | 300 V DC / 240 V AC |
| Max switched current: | 0.5 A | |
| Max. switched power: | 10 W |
|
| Physical |
Dimensions | 39.1x14.1x6cm |

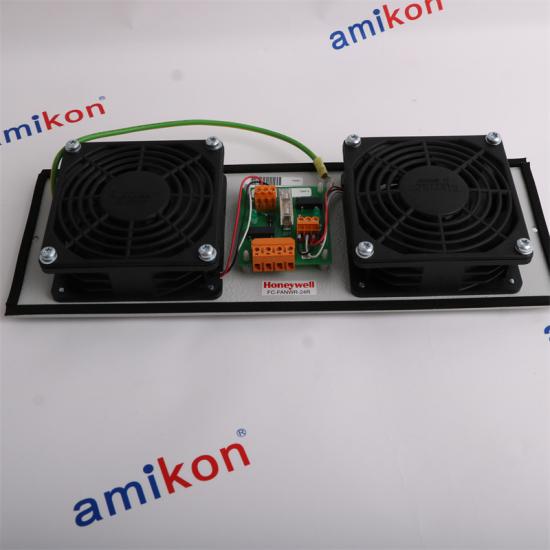

The 24 V DC fan unit (FANWR-24R) consists of two fans and a printed circuit board (PCB) 07209
on a mounting plate. The external 24 V DC power and readback contact wiring for the fan unit terminates
on a 4 pole connector which slots into the fan unit. Electronics in the fan unit generate the signals to indicate
the fan status. If the speed of a fan is above minimum, a green LED next to that fan illuminates to indicate this. If both fans are

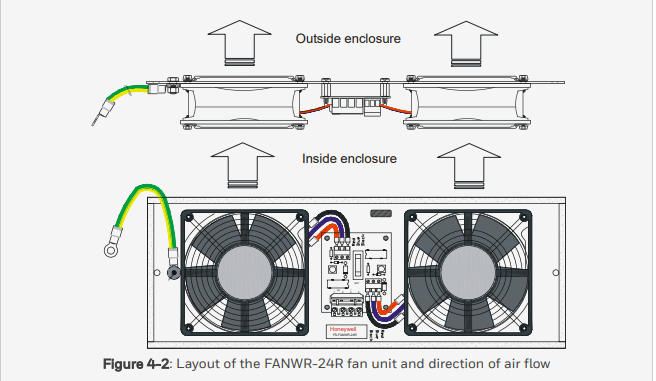

above minimum speed the readback contact closes. Finger guards are mounted on both sides of the fans. The "Layout of
the FANWR-24R fan unit and direction of air flow" below shows the direction of airflow and the bottom and side view of the fan unit.
The FC-FANWR-24R Fan Assembly Kit is designed to provide efficient cooling for industrial control systems,
ensuring optimal performance and system longevity. This reliable fan assembly kit is easy to install and is built
to maintain consistent airflow, reducing the risk of overheating in critical applications.
