| Product module | 125680-01 |
| Brands | BENTLY NEVADA |
| Payment | Paypa/TT |
| Condition | 100% New |
| Weight | 0.18KG |
| Production year | 2024 |
| country of origin | USA |

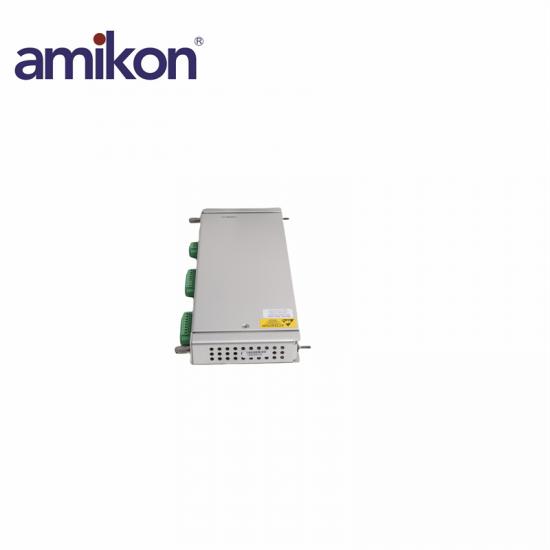

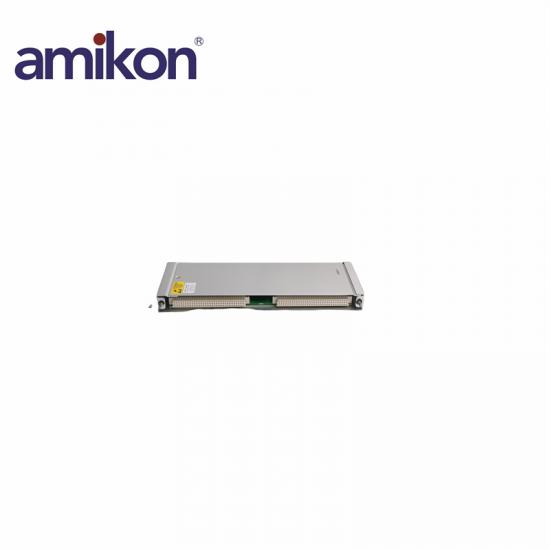

Bently Nevada 125680-01 Proximitor I/O Module
Discription
| Part number：125680-01 |
|
Signal ：Accepts from 1 to 4 proximity transducer signals |
| Power consumption ：7.7 watts, typical |
|
Standard I/O ：10 kΩ (Proximitor and acceleration inputs
|
|
Output Impedance ：550 Ω
|
|
Transducer Power Supply：-24 Vdc |
| Gap filter： -3 dB at 0.09 Hz |
The 125680-01 Proximitor I/O Module is an integral component of a machinery condition monitoring system, designed
to interface with proximitor sensors for accurate measurement of displacement, vibration, and position in rotating machinery.
This I/O module enables the connection of proximitor sensors to monitoring systems, allowing for real-time data collection and
analysis of machinery health. It provides precise signal conditioning and amplification, ensuring that the data from the proximitor
sensor is processed and transmitted with high accuracy. The module is designed to work seamlessly with various monitoring
and control systems, ensuring reliable operation in demanding industrial environments. Its robust construction allows it to
withstand harsh conditions, ensuring continuous performance and long-term reliability.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About 125680-01
|
What is the 125680-01 Proximitor I/O Module? |
|
The 125680-01 Proximitor I/O Module is an interface device that connects proximitor sensors to monitoring systems. It is used to measure displacement, vibration, and position in rotating machinery, supporting high-precision data processing and signal amplification. |
| What are the main functions of the 125680-01 Proximitor I/O Module? |
| The main function of this module is to provide signal conditioning and amplification for the proximitor sensor, ensuring that the data from the sensor is processed with high precision and accurately transmitted to the monitoring system for analysis. |
| What applications is the 125680-01 Proximitor I/O Module suitable for? |
|
The module is widely used in condition monitoring of rotating machinery, especially for turbines, motors, pumps, and compressors, for monitoring equipment health, vibration, misalignment, and other issues. |
| How is the 125680-01 Proximitor I/O Module connected to the monitoring system? |
|
The module connects to the monitoring system via standard industrial communication protocols (such as 4-20 mA output signals or other applicable interfaces), ensuring seamless data transmission and real-time monitoring. |
