| Product module | 330180-90-CN |
| Brands | BENTLY NEVADA |
| Payment | Paypa/TT |
| Condition | 100% New |
| Weight | 0.18KG |
| Production year | 2024 |
| country of origin | USA |

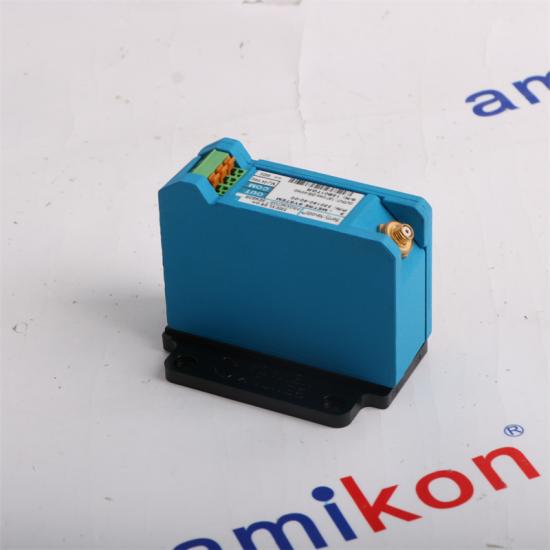

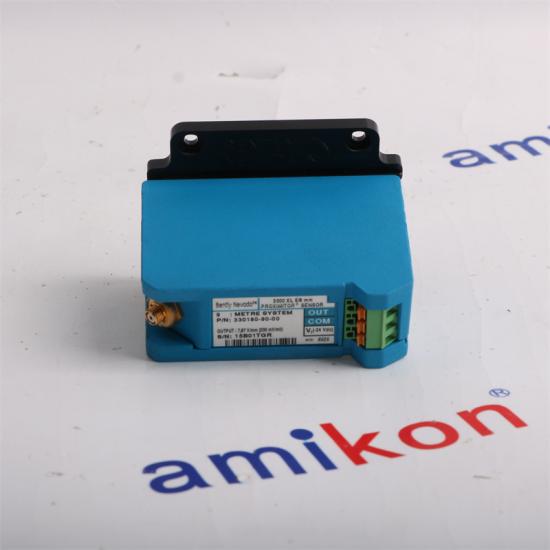

Bently Nevada 330180-90-CN Proximitor Sensor
Discription
| Part number：330180-90-CN |
|
Minimum Target Size :15.2 mm (0.6 in) diameter (flat target) |
| Recommended Gap Setting for Radial Vibration :-9 Vdc [approximately 1.27 mm (50 mils)] |
|
Standard 5 or 1 meter System： Less than ±0.025 mm (±1 mil) with components at 0°C to +45°C (+32°F to +113°F)
|
|
Linear Range ：2 mm (80 mils)
|
|
Field Wiring ：0.2 to 1.5 mm2 (16 to 24 AWG). |
| Extension Cable Capacitance ：69.9 pF/m (21.3 pF/ft) typical |
The 330180-90-CN Proximitor Sensor is a high-performance proximity sensor designed to provide precise
measurement of displacement, vibration, and position in rotating machinery. It is commonly used in industrial
applications such as turbines, motors, compressors, and pumps for condition monitoring and predictive maintenance.
The sensor operates by detecting the distance between itself and a target object, typically a rotating shaft or rotor. Its
reliable performance helps detect early signs of mechanical issues such as misalignment, imbalance, or wear. Built with
durability in mind, the 330180-90-CN Proximitor Sensor is engineered to withstand harsh operating environments,
providing accurate and real-time data for vibration analysis and machine health monitoring.
Email :sales@amikon.cn
Skype :miyazheng520
Phone/WhatsApp : 86-18020776792
Frequently Asked Questions About 330180-90-CN
|
What is the 330180-90-CN Proximitor Sensor? |
|
The 330180-90-CN Proximitor Sensor is a high-performance sensor designed to accurately measure displacement, vibration, and position in rotating machinery. It provides critical machine health information by detecting changes in the distance between itself and a target object, such as a rotating shaft or rotor. |
| How does the 330180-90-CN Proximitor Sensor work? |
| The sensor operates using electromagnetic induction, generating a stable electromagnetic field and monitoring the distance between the sensor and the target object. When the target object undergoes displacement, vibration, or positional changes, the sensor converts these variations into electrical signals for monitoring system analysis. |
| What applications is the 330180-90-CN Proximitor Sensor suitable for? |
|
The sensor is widely used in condition monitoring and fault diagnosis of rotating machinery such as turbines, motors, pumps, and compressors. It is ideal for applications requiring high-precision displacement measurements. |
| Is the 330180-90-CN Proximitor Sensor suitable for harsh environments? |
|
Yes, the 330180-90-CN Proximitor Sensor is designed for durability in high-temperature, high-vibration, and corrosive environments, offering stable performance even under extreme operating conditions. |
