| Product module | 22810-00-10-10-02 |
| Brands | BENTLY NEVADA |
| Payment | Paypa/TT |
| Condition | 100% New |
| Weight | 0.14KG |
| Production year | 2024 |
| country of origin | USA |
Product detailed parameters
| BENTLY NEVADA 22810-00-10-10-02 Product detailed parameters | |
| Product model | 22810-00-10-10-02 |
| Product Description | proximity probe |
| Power | -17.5 Vdc to -26 Vdc at 12 mA |
| Calibrated Range |
80 mils (2.0 mm)
|
| Frequency Response | 0 to 10 kHz |
| Operating Temperature Proximitor | -60°F to +212°F(-51°C to + 100°C) |
| dimensions |
22x20x1.5cm |
|
•High Precision Measurement: Provides accurate displacement and position measurements, essential for precise monitoring of machinery components. |
| • Non-Contact Sensing: Utilizes a non-contact method to detect the proximity of a target, reducing wear and tear and enhancing the probe's durability. |
| •Wide Measurement Range: Capable of measuring a broad range of displacements, making it suitable for various industrial applications. |
| •Real-Time Data: Offers real-time feedback on the position and displacement of machinery components, crucial for timely anomaly detection and corrective action. |
If you want to learn more details，please contact me without hesitate.
Email： sales@amikon.cn

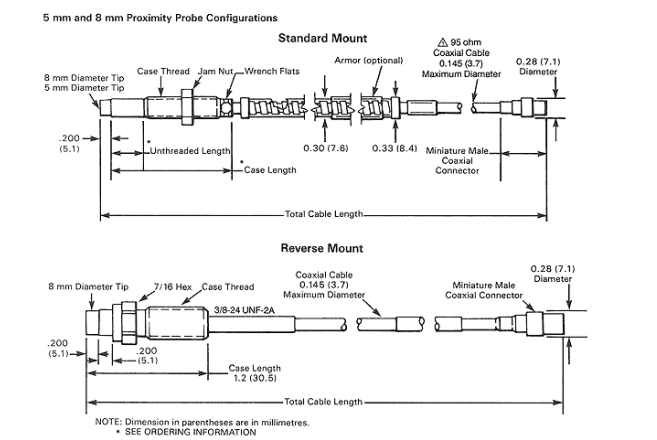

Engineering drawing of BENTLY NEVADA 22810-00-10-10-02
Featuring high precision, the probe provides accurate displacement and position measurements, enabling the precise
monitoring of machinery components. This accuracy is essential for detecting even minor changes that might indicate
potential issues. Its non-contact sensing method eliminates wear and tear on both the sensor and the
target, enhancing the probe's durability and reducing maintenance requirements.
The 22810-00-10-10-02 Proximity Probe is designed with a wide measurement range, making it versatile for various industrial
applications. It can effectively monitor different types of machinery and components, accommodating a broad spectrum of
displacement measurements. Constructed from durable materials, the probe is built to withstand harsh industrial environments,
including extreme temperatures, vibration, and exposure to contaminants, ensuring reliable performance under challenging conditions.
The probe provides real-time data on the displacement and position of machinery components, offering immediate feedback
essential for detecting anomalies and implementing corrective actions to prevent equipment failure. It integrates seamlessly
with machinery protection systems, including those from Bently Nevada's 3500 Series, facilitating comprehensive
monitoring and data analysis to enhance overall system performance.
Additionally, the probe includes advanced diagnostic features that help detect potential issues with the sensor itself,
maintaining accurate measurements and ensuring long-term reliability. It is designed for straightforward installation in various
machinery setups, typically coming with mounting accessories and instructions for quick and accurate installation.
Overall, the 22810-00-10-10-02 Proximity Probe is a high-performance sensor that plays a vital role in effective
machinery monitoring and protection. Its precision, durability, and advanced features make it an essential tool
for ensuring the safe and efficient operation of rotating equipment.
Recommended model
| Bently Nevada | 21000-16-10-15-057-03-02 | Proximity Probe Housing Assemblies |
| Bently Nevada | 21000-16-10-15-102-03-02 | Proximity Probe Housing Assemblies |
| Bently Nevada | 21000-16-10-15-114-03-02 | Proximity Probe Housing Assemblies |
| Bently Nevada | 21000-16-10-15-144-03-02 | Proximity Probe |
| Bently Nevada | 991-01-XX-01-CN | 991 Thrust Transmitter |
| Bently Nevada | 22810-00-10-10-02 | Proximity Probe |
| Bently Nevada | 990-05-XX-01-CN | 990 Vibration Transmitter |
| Bently Nevada | 26363-30 | proximity probe |
| Bently Nevada | 84510-33 | proximity probe |
| Bently Nevada | 4454-156 | Thermal Couple Heat Sensor |
If you want to more，please contact me without hesitate.
Email： sales@amikon.cn
The 3500/22M 138607-01 Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
3500/22M is a Transient Data Interface Module manufactured and designed by Bently Nevada as part of the 3500 Series used for monitoring seismic activity. The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
The 3500/33 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module. Each output of the 3500/33 16-Channel Relay Module can be independently programmed to perform voting logic.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The 3500/60 133811-01 modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/72M Recip Rod Position Monitor meets API 618 requirements for reciprocating compressors. It measures: l Rod position l Rod drop l Hyper-compressor The four-channel 3500/72M Recip Rod Position Monitor accepts input from proximity transducers, conditions the signal to provide dynamic and static position measurements, and compares the conditioned signals with userprogrammable alarms. Each channel, depending on how you configure it, typically conditions its input signal to generate various parameters called measured values.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
