| Product module | 3500/92 136180-01 |
| Brands | BENTLY NEVADA |
| Payment | Paypa/TT |
| Condition | 100% New |
| Weight | 0.82KG |
| Production year | 2024 |
| country of origin | USA |
Product detailed parameters
| BENTLY NEVADA 3500/92 136180-01 Product detailed parameters | |
| Product model | 3500/92 136180-01 |
| Product Description | Communication Gateway Module |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F)
|
| Monitor Module | 1 full-height front slot |
| I/O Modules | 1 full-height rear slot |
| dimensions |
2.5x25x24cm |
|
•Multiple Channels: Supports multiple temperature input channels, allowing for simultaneous monitoring of various temperature points and providing a comprehensive temperature monitoring solution |
| • Compatible with Various Sensors: Interfaces with a variety of temperature sensors, including RTDs (Resistance Temperature Detectors) and thermocouples, enhancing the module's flexibility and applicability |
| •High Precision: Provides high-precision temperature measurements, ensuring the detection of even minor temperature changes for early fault detection and preventive maintenance |
| •Data Integration: Seamlessly integrates with the 3500 Series Machinery Protection System, supporting various communication protocols for easy data sharing and system integration |
If you want to learn more details，please contact me without hesitate.
Email： sales@amikon.cn

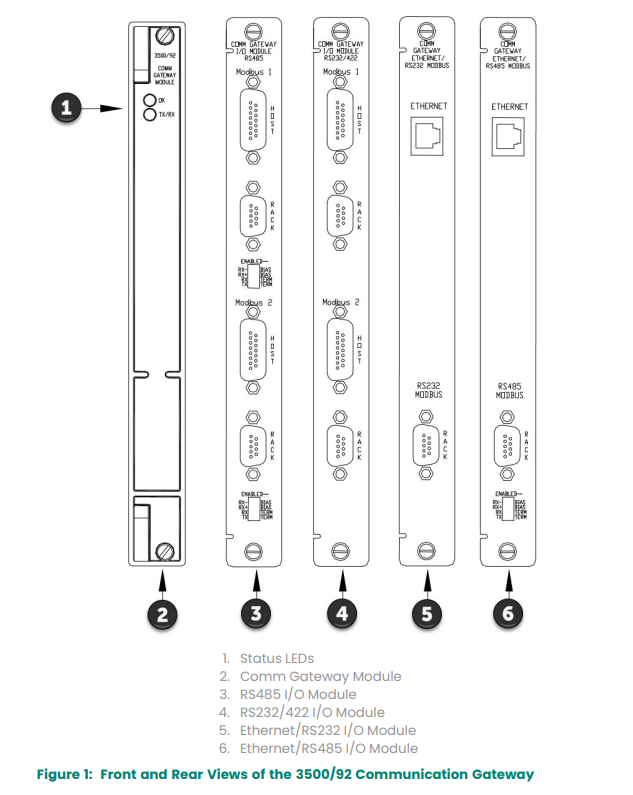

Engineering drawing of BENTLY NEVADA 3500/92 136180-01
One of the key features of the 3500/92 136180-01 is its ability to handle large volumes of data efficiently.
The module is designed to process and transmit data from the 3500 Series modules to external systems with high accuracy and reliability.
This capability ensures that critical machinery data is accurately conveyed, which is crucial for effective monitoring, analysis, and decision-making.
The module supports various communication interfaces, including Ethernet and serial communication, providing flexibility in
how it integrates with existing industrial infrastructure. This versatility allows for easy integration into different network
setups and control systems, enhancing the overall efficiency of machinery monitoring and control processes.
The 3500/92 136180-01 also features advanced diagnostic and troubleshooting capabilities. It includes built-in diagnostic tools that help identify
and resolve communication issues, ensuring uninterrupted data flow between the 3500 Series system and
other industrial networks. This proactive approach to maintenance minimizes downtime and enhances system reliability.
Designed for durability and robustness, the 3500/92 136180-01 can operate reliably in harsh industrial environments.
It is built to withstand extreme temperatures, high levels of dust, and other challenging conditions, ensuring long-term performance and stability.
In addition to its core communication functions, the module provides real-time monitoring and alarm capabilities. It can generate alerts
or communication failures or discrepancies, allowing operators to quickly address issues and maintain optimal system performance.
