| Product module | 3500/40M 140734-01 |
| Brands | BENTLY NEVADA |
| Payment | Paypa/TT |
| Condition | 100% New |
| Weight | 0.8KG |
| Production year | 2024 |
| country of origin | USA |
The 3500/40M Proximitor Monitor is a four-channel monitor that accepts input from
Bently Nevada proximity transducers, conditions the signal to provide various vibration
and position measurements, and compares the conditioned signals with user-programmable alarms.
The user can program each channel of the 3500/40M with the 3500
Rack Configuration Software to perform any of the following functions:
• Radial vibration • Eccentricity • REBAM
• Thrust position •Differential expansion
Specifications
| Signal | Accepts from 1 to 4 proximity transducer signals |
| Power consumption | 7.7 watts, typic |
| Input Impedance | |
| Standard I/O | 10 kΩ (Proximitor and acceleration inputs |
| TMR I/O |
The effective impedance of three bussed TMR I/O channels wired in parallel to one transducer is50 kΩ |
FCC:
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference received,
including interference that may cause undesired operation.
If you want to know more, please contact us!
Looking forward to your contact.
Email:sales@amikon.cn

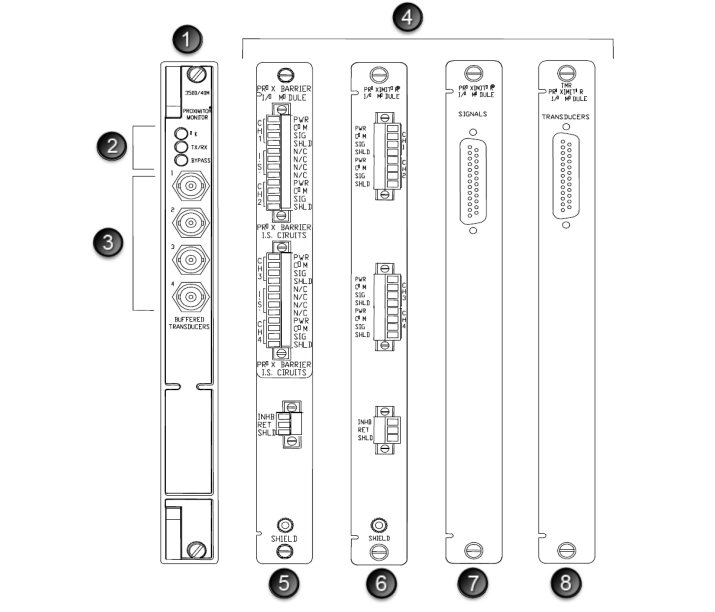

Engineering drawing of BENTLY NEVADA 3500/40M 140734-011
The Bently Nevada 3500/40M 140734-01 Proximitor Monitor is a crucial component in
the Bently Nevada 3500 series machinery protection and condition monitoring systems,
designed to work seamlessly with proximity probes to measure and monitor machinery displacement and vibration.
This monitor processes the signals from proximity probes, providing accurate real-time data on the
condition of rotating machinery components, such as shafts and bearings.
By offering precise measurements, the 3500/40M helps detect potential issues early,
preventing equipment failures and ensuring operational safety.
Designed to withstand harsh industrial environments, the 3500/40M is built with rugged durability to
handle high temperatures, vibrations, and electrical noise, ensuring reliable performance in challenging conditions.
It is widely used in industries such as oil and gas, power generation, and manufacturing,
where precise monitoring of machinery is critical for maintaining efficiency and preventing costly downtime.
