| Product module | 990-05-XX-01-CN |
| Brands | BENTLY NEVADA |
| Payment | Paypa/TT |
| Condition | 100% New |
| Weight | 0.46KG |
| Production year | 2024 |
| country of origin | USA |
Product detailed parameters
| BENTLY NEVADA 990-05-XX-01-CN Product detailed parameters | |
| Product model | 990-05-XX-01-CN |
| Product Description | 900 Vibration Transmitter |
| Maximum Loop Resistance | 1,000 Ω including cable at 35 Vdc. |
| Prox Out Linear Range |
1.4 mm (55 mils).
|
| Frequency Response | 5 Hz to 6,000 Hz +0, -3 dB. |
| Minimum Target Size | 9.5 mm (0.375 in) diameter. |
| Current Limiting |
23 mA typical. |
|
• Temperature Stability : Incremental scale factor remains within ±10% of 7.87 mV/µm (200 mV/mil) from 0 °C to +70 °C (+32 °F to +158 °F). |
| • Leadwire Length : Maximum for Proximitor* Sensor Output (BNC connector), maximum cable distance is 3 metres (10 feet). |
| •Electrical Classification: General Purpose Approval by Canadian Standards Association (CSA/NRTL/C) in North America and by VDE in Europe. 990 has the CE mark for Europe. |
| •Output Impedance : Prox Out has a 10 kΩ output impedance calibrated for a 10 MΩ load. |
If you want to learn more details，please contact me without hesitate.
Email： sales@amikon.cn

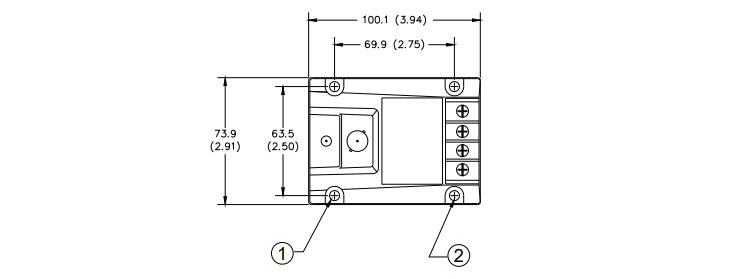

Engineering drawing of BENTLY NEVADA 990-05-XX-01-CN
The transmitter utilizes state-of-the-art measurement technology to provide highly accurate vibration data, which is crucial for
assessing equipment condition.This precise measurement capability helps engineers and maintenance personnel identify any
anomalies, such as excessive vibration or abnormal frequencies,allowing for timely intervention to prevent potential equipment
failures. By extending equipment lifespan and significantly reducing downtime due to failures, this Bently Nevada 900 Series Vibration Transmitter helps to
improve overall production efficiency. Designed to withstand the challenges of industrial environments,
the Bently Nevada 900 Series Vibration Transmitter isbuilt with durability in mind.Bently Nevada 900 Series Vibration Transmitter
robust construction enables it to operate reliably under high temperatures, corrosive conditions,
and intense vibrations, ensuring consistent and accuratemeasurementsin various harsh conditions.
This durability makes it suitable for a wide range of environments,from heavy industrial settings to high-tech production lines,
addressing diverse vibration monitoring needs.Ease of installation andmaintenance is another key feature of this transmitter.
Bently Nevada 900 Series Vibration Transmitter modular design simplifies the installation process,allowing users to
quickly set up the device and perform maintenance or replacements efficiently when needed.
This design not only reduces equipment downtime but also lowers maintenance costs, enhancing the overall reliability and efficiency of
the monitoringsystem.The transmitter also boasts advanced data processing capabilities.
Bently Nevada 900 Series Vibration Transmitter can capture and analyze vibration data in real time,providing detailed reports on
equipment performance.These reports are instrumental in assessing equipment status and supporting maintenance decisions,
enabling engineersto develop more effective maintenance plans andproactively address potential issues to avoid unexpected failures.
With support for both local and remote monitoring, users can access real-time data from different locations,
enhancingmaintenance and management efficiency.In summary, the Bently Nevada 900 Series Vibration Transmitter (Model 990-05-XX-01-CN)
is an ideal choice for industrialequipment vibration monitoring.It combines high precision measurement, rugged durability,
ease of installation and maintenance, and advanced data processing capabilities toprovide comprehensive support for various industrial applications.
Whether in complex manufacturing environments or under harsh industrial conditions,this transmitter reliably and
accurately monitors equipment status, helping enterprises achieveoptimal performance and maximize production efficiency.
Recommended model
| Bently Nevada | 10026-02-12-05-02 | Extension Cable |
| Bently Nevada | 991-06-XX-01-00 MOD:169955-01 | 991 Vibration Transmitter |
| Bently Nevada | 991-06-XX-01-00 MOD:164113-01 | 991 Vibration Transmitter |
| Bently Nevada | 991-01-XX-02-05 | Vibration Transmitter |
| Bently Nevada | 991-01-XX-01-00 MOD:284318-01 | 991 Vibration Transmitter |
| Bently Nevada | 990-16-XX-01-CN 106M1675-01 | Vibration Transmitter |
| Bently Nevada | 990-16-XX-01-CN | Vibration Transmitter |
| Bently Nevada | 990-10-XX-01-CN 167541-01 | Vibration Transmitter |
| Bently Nevada | 990-10-XX-01-05 MOD:285269-01 | Vibration Transmitter |
| Bently Nevada | 990-10-XX-01-05 | Vibration Transmitter |
If you want to more，please contact me without hesitate.
Email： sales@amikon.cn
The 3500/22M 138607-01 Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
3500/22M is a Transient Data Interface Module manufactured and designed by Bently Nevada as part of the 3500 Series used for monitoring seismic activity. The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
The 3500/33 16-Channel Relay Module is a full-height module that provides 16 relay outputs. You can place any number of 16-channel relay modules in any of the slots to the right of the Transient Data Interface (TDI) Module. Each output of the 3500/33 16-Channel Relay Module can be independently programmed to perform voting logic.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The 3500/60 133811-01 modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The 3500/72M Recip Rod Position Monitor meets API 618 requirements for reciprocating compressors. It measures: l Rod position l Rod drop l Hyper-compressor The four-channel 3500/72M Recip Rod Position Monitor accepts input from proximity transducers, conditions the signal to provide dynamic and static position measurements, and compares the conditioned signals with userprogrammable alarms. Each channel, depending on how you configure it, typically conditions its input signal to generate various parameters called measured values.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
The 3500/62 Process Variable Monitor is a 6-channel monitor for processing machine critical parameters that merit continuous monitoring, such as pressures, flows, temperatures, and levels. The monitor accepts +4 to +20 mA current inputs or any proportional voltage inputs between -10 Vdc and +10 Vdc. It conditions these signals and compares the conditioned signals to user-programmable alarm setpoints.
